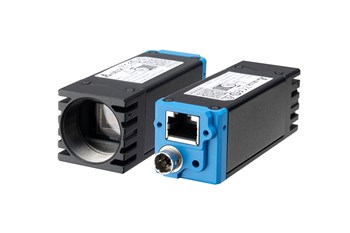

2.5 GigE Industrial Camera DMV-C 2.5GigE Series

The Delta DMV-C 2.5GigE Series Industrial Camera, equipped with Sony IMX image sensors, delivers low-noise performance and high-quality image processing. It supports high-speed, high-resolution imaging with transmission distances of up to 100 meters, improving equipment utilization and production efficiency. With a Global Shutter design, the camera eliminates motion distortion in dynamic scenes, ensuring reliable performance for high-speed production lines and multi-camera synchronization.

Built on an Ethernet-based architecture with a standard GigE interface, the DMV-C 2.5GigE Series is fully compatible with existing GigE networks, enabling seamless upgrades to 2.5 GigE and providing scalability for AI-driven and smart robotics applications.

Product Introduction

Features & Benefits
  • Multiple Resolutions: Available from 1.6MP to 24.5MP to meet diverse application requirements
  • High Image Quality & Low Latency: Delivers 10 ~ 154 fps depending on resolution, offering 2.5× the speed of 1G cameras
  • Supports Global Shutter: Ideal for high-resolution dynamic object capture and multi-camera synchronization, ensuring distortion-free images
  • Packet Resend Mechanism: Automatically retransmits lost image data packets, ensuring reliable transmission with no frame drops
  • Stable Long-Distance Transmission: RJ-45 Ethernet interface with anti-interference properties, supporting up to 100m transmission distance
  • Dual Power Options: Supports both PoE (IEEE 802.3af) and DC 24V, offering flexible cabling design
  • Standardized & Easy Integration: Compliant with GenICam / GigE Vision standards to simplify integration and lower the adoption barrier


Applications
  • AOI (Automated Optical Inspection): Defect classification, pin inspection, alignment guidance
  • Smart Logistics & Warehousing: Barcode reading, sorting systems, dimension measurement
  • Packaging Inspection: Packaging appearance, foreign object detection, label verification
  • AI Vision Tasks: Defect recognition, image segmentation, object classification
  • Robotics Applications: Industrial robots, mobile robots

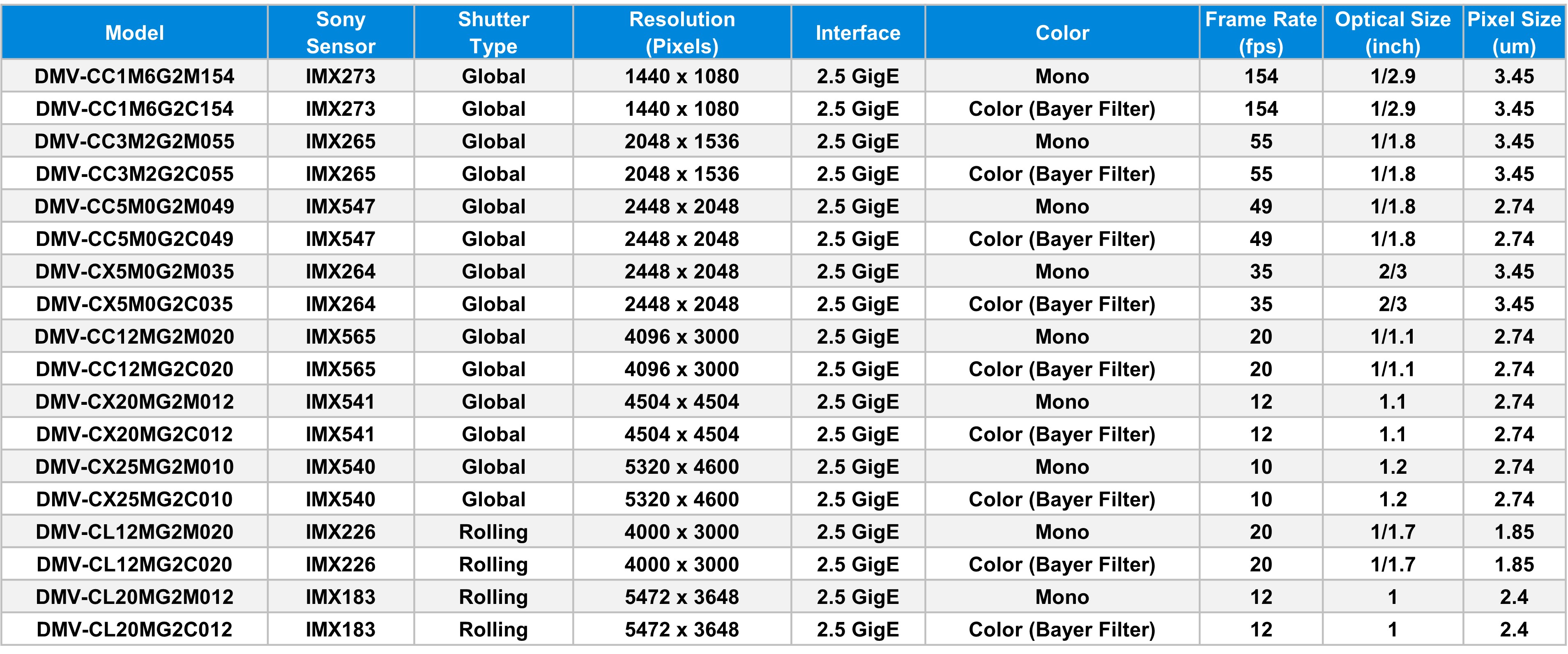

Specifications



Scan Type Area Scan
Interface 100/1000/2500 Mbps Ethernet, GigE Vision 2.0 compliant
Power Supply DC 24V, PoE (IEEE 802.3af)
Power Consumption < 6W
Overvoltage Category OCV II
I/O Opto-isolated Input x 1, Opto-isolated Output x 2, Common Isolated Ground x 1
Lens Mount C-Mount
Storage Temperature -20°C ~ 85°C
Operating Temperature 0°C ~ 45°C
Storage and Operating Humidity 20% ~ 80% RH, Non-Condensing, No Frosting
Dimensions 77 × 29 × 29 mm
Weight Approximate 164 g
IP Rate IP30
