Delta Reveals New 120 W Open Frame Medical Power Supply for Respirators and Patient Monitor

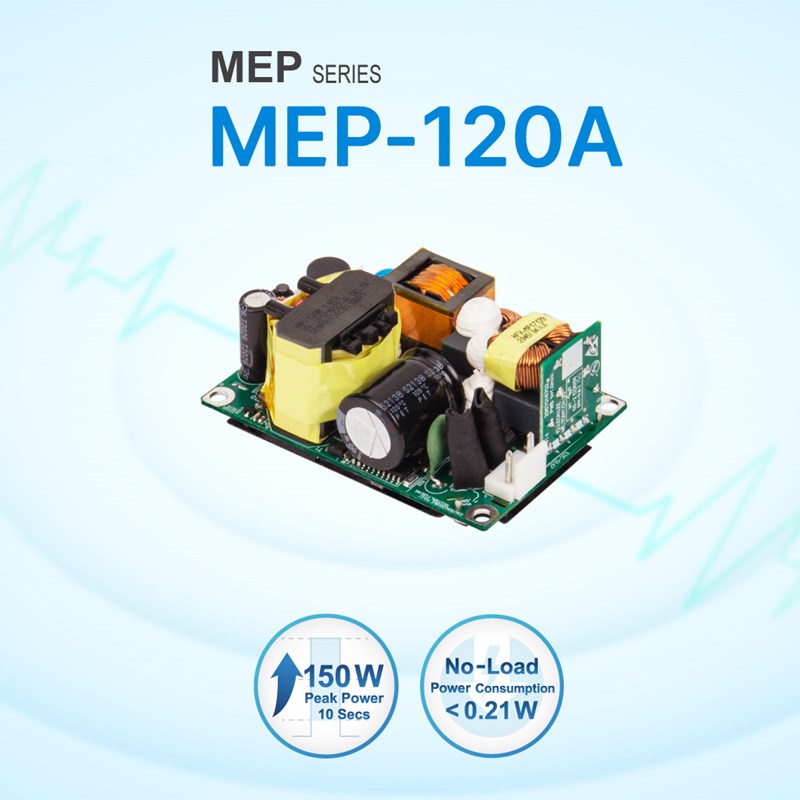

Delta expand its MEP Series open frame medical power supplies with the launch of the new 120 W output model – MEP-120A. The MEP-120A offers 4 output voltage of 12 V, 15 V, 18 V and 24 V in a 2” x 3” footprint. It supports up to 150 W peak power for 10 seconds and features a wide operating temperatures ranging from -30°C to +70°C with de-rating from +50°C to +70°C. With low no load power consumption < 0.21 W and electric shock protection complying with 2 x MOPP, the MEP-120A offers reliable power supply for type BF medical equipment such as respirators and patient monitor.

The MEP-120A is certified with medical, ICT and home appliance safety approvals, including UL/ TUV/ CE/ UKCA and CB certification, as well as EMC approvals to EN 55011 / EN 55032 Class B. It is applicable to type BF medical products, IT equipment and household appliances.

Highlights & Features

• 2 "x 3" x 1.2" small footprint with base
• Up to 16.67 W/inch³ power density
• Up to 120 W output with natural convection cooling
• Up to 150 W peak power for 10 secs.
• No load power consumption < 0.21W
• Up to 70 °C ambient operation
• Up to 700 KHrs MTBF
• 2 x MOPP isolation
• Suited for type BF medical products.
• Class B conducted and radiated EMI
• Compliant with IEC60601-1-2 Ed.4 edition immunity
