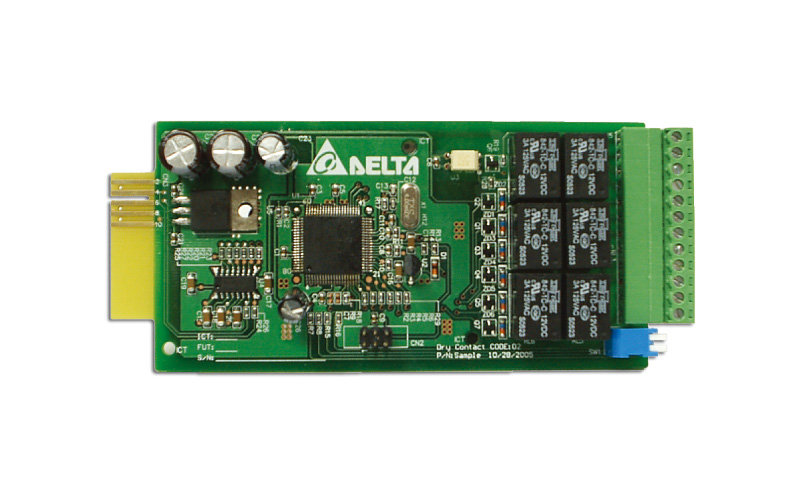

Relay I/O Card

The relay I/O card controls 6 programmable output relays depending on the operating status of the UPS. One input for triggering UPS shutdown or battery test signal.

Downloads Request a Quote

Product Introduction

Features & Benefits

Output

  • Programmable: 6 output relays can be configured to various UPS events respectively
  • NC/NO: 6 output relays, each of them can be configured to either NC (Normal Close) or NO (Normal Open)


Input

  • Programmable: The input signal can be configured to turn off the UPS or to issue a battery test command
Specifications
  1. Model
  2. Relay I/O Card

  3. Deployment
  4. Input Power: 8-20 Vdc
  5. Power Consumption: < 1.2 W
  6. Operation Temperature: 0 to 40°C
  7. Operation Humidity: 10-80%

  8. Physical
  9. Dimensions: 130 x 60 mm
  10. Net Weight: 200 g
