LFP Battery Cabinet

LFP Battery Cabinet

Delta’s LFP battery cabinet offers high-voltage output for enhanced energy management efficiency. With scalable designs, fire-proofing, and anti-corrosion capabilities, it adapts to various project sizes and environmental conditions. This makes it an ideal solution for grid ancillary services and utility applications, ensuring reliability and safety across diverse scenarios.

Product Introduction

Key Benefits
  • Modular design allows the system to scale out from 295 kW to 4.41 MWh
  • Fully equipped for rapid commissioning with support for truck transportation
  • Consistent quality control and safety features ensure minimal risk
Optimizing Energy Storage Systems Under Minimal Risk



Feature Highlights

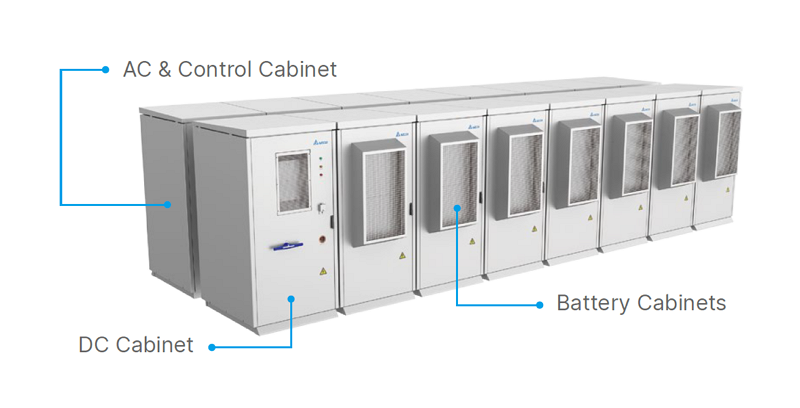

Highly Scalable Building Block

  • Systems can be configured to meet current requirements and scale-out from 300kW to 5MW
  • Pre-installed battery modules, power supply, controllers, and interfaces for rapid deployment and commissioning
  • Support for truck transportation

Proven Systems Safety

  • Split cabinet with an anti-fire propagation enclosure
  • Dedicated HVAC, cooling system, and environmental safety sensors to minimize risk
  • Compliance with IEC 60721-3-2 2M1 prevents damage due to transport shock or vibration
  • IEEE 693 seismic qualification
  • UL 9540A for module


Applications

Solar Power Plant

Factory

EV Charging Station
