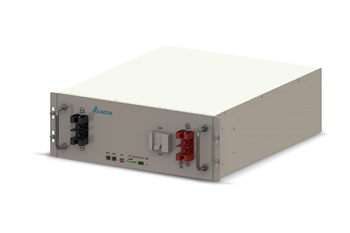

TEB4815 - 4U, 48V, 150Ah LFP

This new Delta 48V battery pack is designed with 150Ah capacity battery cell of lithium-ion iron phosphate chemistry. It provides larger capacity in a compact size of 19” rack-mounted 4U chassis. This pack has RS485 communication and built-in BMS with automatic protection and cell balancing to offer safe and most efficient operation to customers.

The pack application is developed for Telecom equipment power backup. Under normal condition, grid AC power supplies to rectifier module and the Telecom loads and also charge battery pack.

When the AC power failed, rectifier module stop power supply to loads, the battery serves for Telecom equipment to ensure the Telecom equipment operation normally; when the AC power is switched on again, power from rectifier module to Telecom equipment recovered and charge the battery pack back to backup status.

Product Introduction

Features & Benefits
  • RS485 communication output for monitoring
  • Built-in automatic protection for over-charge, over-discharge and over-temperature conditions
  • Built-in BMS with a charging current limiting circuit
  • Built-in battery optimal control algorithm to manage sleep/wakeup and intermittent charging mode to improve operation efficiency
  • Built-in cell balancing function
  • LED indicators state of charge and Alarm/Run status
  • Compatible with standard telecom rectifiers
  • Maintenance free



Applications
  • 3G / 4G / 5G
  • Fixed Line
  • Datacom



Specifications
  1. Model
  2. TEB4815

  3. Nominal
  4. Voltage: 48.0 VDC
  5. Capacity: 150 Ah (capacity is measured under 0.2C / 25°C @ BOL)

  6. Electrical
  7. Energy
    Nominal Energy (25°C, 0.2C): 7200 Wh (capacity is measured under 0.2C / 25°C @ BOL)
    Volumetric Energy Density: 206 Wh/L
    Gravimetric Energy Density: 118 Wh/kg
  8. Standard Discharge (25°C)
    Maximum Continuous Current: 100 A
    Cut-off Voltage: 37.5 VDC
    LVBD Voltage: 41.3 VDC
  9. Standard Charge (25°C)
    Maximum Continuous Current: 100 A
    Recommended Charging Current: 50 A
    Charge Voltage: Max 53.5 VDC (Recommend: 51.9 VDC)
  10. Charge Current Limit Function: 10 A
  11. Internal Impendence: < 19 mΩ

  12. Mechanical
  13. Dimensions (W x H x D):
    Without Handle: 442 (±1) x 165 (±1) x 480 (±1) mm
    With Handle & Terminal: 442 (±1) x 165 (±1) x 521.5 (±1) mm
  14. Weight: Approx. 61 ± 1 kg
  15. Total Cells Quantity in Battery Module: 15 pcs of cell in series (Prismatic type cell)
  16. Materials of Battery Case: Carbon steel with corrosion resistant coating
  17. Cell: LFP 150 Ah
  18. Max Quantity of Battery Parallel Connection: 15 for one RS-485 and max 30 pcs in system
  19. Color: White (RAL9003)

  20. Environmental
  21. Calendar Life (25℃): > 10 years
  22. Cycle Life (100A/100A, DOD 100%, 25℃)*: SOH 80%, 3500 cycles
  23. Operating Temperature**: 0 to +50°C (De-rating from 35°C)
  24. Storage Temperature: 0 to +45°C (Recommended range: 10 to +30°C)

  25. Standards
  26. Safety: CE, UN38.3, IEC62619, IEC60730-1
  27. EMC: EN 61000-6-3:2007+A1:2011+AC:2012, EN IEC 61000-6-1:2019

  28. * 100A/100A means to charge at 100A and discharge at 100A..
    ** Operation temperature means the ambient temperature. Protection may be triggered if the conditions defined in the specification are exceeded.
  29. All specifications are subject to change without prior notice.
  30. Performance may vary depending on, but not limited to cell usage and application. If a cell is used outside specifications, performance will diminish.
