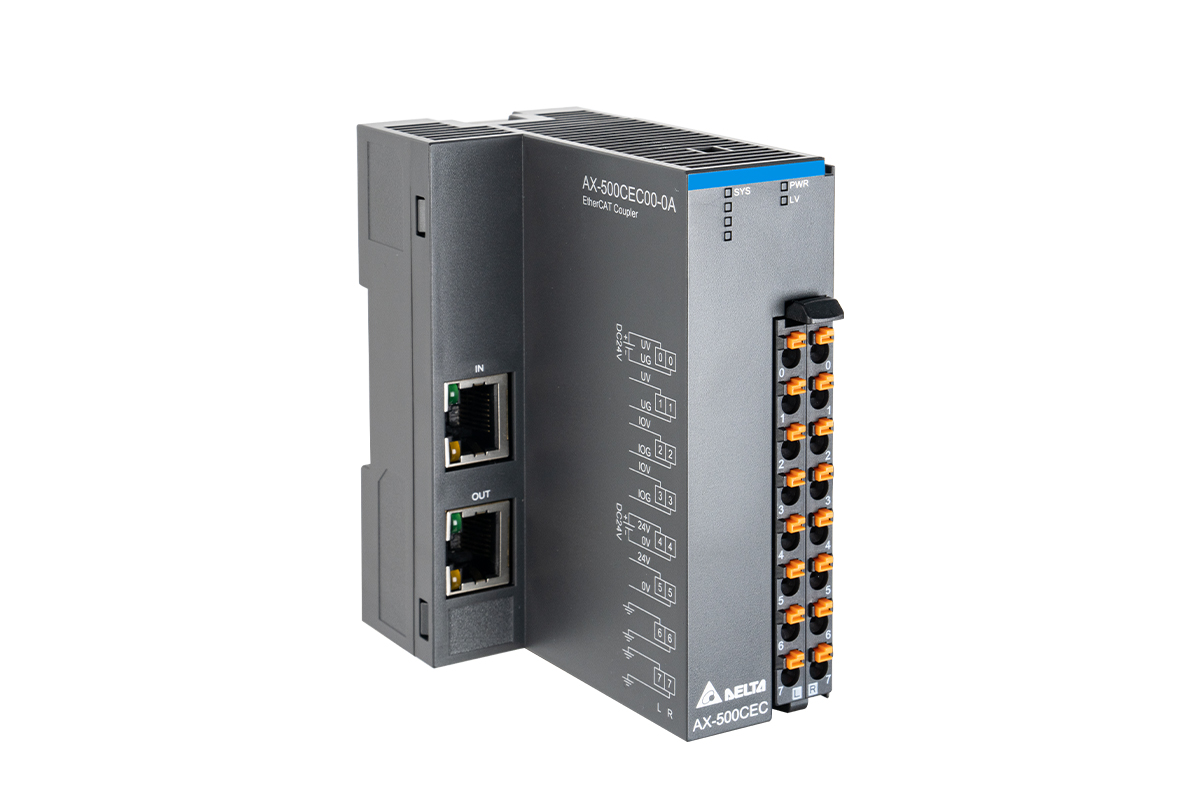

AX-5 Series Couplers

Product Introduction

Features & Benefits
Supports EtherCAT and PROFINET remote IOs (also suitable for 3rd party CPUs)


Applications
Industrial robotics, woodworking, printing, packaging, electrical assembly, and more


Specifications
   AX-5 Coupler
Protocol EtherCAT PROFINET
External connectors One spring-clamp terminal block (16 terminals)
Unit power input voltage/power 24 VDC (-15% ~ 20%) / 16 W 24 VDC (-15% ~ 20%) / 20 W
I/O power input voltage/power 24 VDC (-15%~20%)/ under 240 W, depending on external power output
Max. unit power supply 2 A (10 W)
Max. I/O power supply Under 10 A (240 W), depending on external power output
Current capacity for spring-clamp terminal block Less than 5 A per terminal
Max. power consumption (UV/UG) 50 mA (1.2 W) 200 mA (4.8 W)
Model AX-500CEC00-0A AX-500CPN00-0A

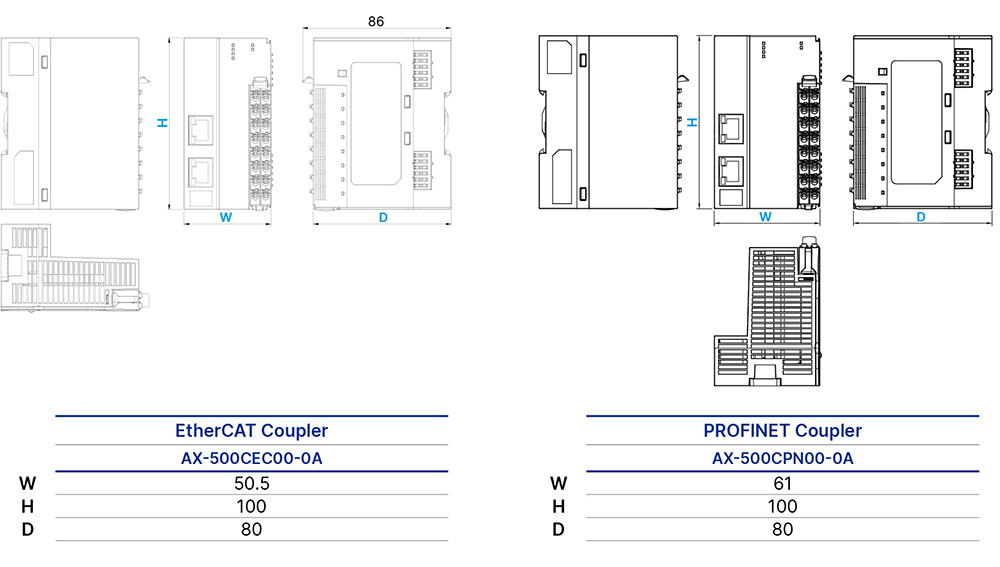

Dimensions
