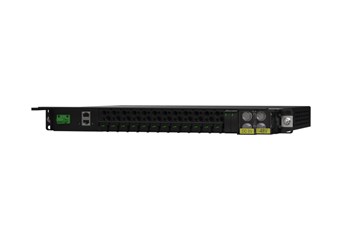

DPD 301 Series

Features & Benefits

• 1 RU compact design, saves valuable rack space

• 63 A and 125 A breakers mixed application

• Breaker status detection (Voltage/Current/Temperature)

• Programmable via Delta controller

Applications

• 3G / 4G / 5G

• Fixed Line

• Datacom

Specifications

1. Input Voltage (range): 40–60 V_DC, 300A (Max.)

2. ---

3. Input Connections: DC Busbar M8 Screw (Cable: 35-50mm²)

4. ---

5. Output Capacity @48V: 300A, Breaker 63A x12 support 63/125A breaker mixed plug

6. ---

7. Output Power Distributions: 6 x 63A + 1 x 125A; 03 spare positions for Breaker 63A

8. ---

9. Weight: Approx. 7 kg, breaker included

10. ---

11. IP Protection: IP20

12. ---

13. Operating Temperature: 0 to +60°C (+32 to +140°F)

14. ---

15. Storage Temperature: -40 to +75°C (-40 to +167°F)

16. ---

17. Environment Standard: RoHS

18. ---

19. Safety Standard: IEC 62368-1 compliance design
