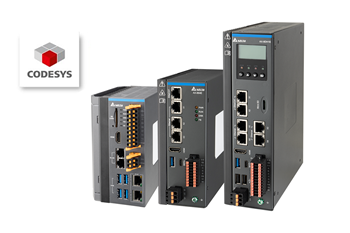

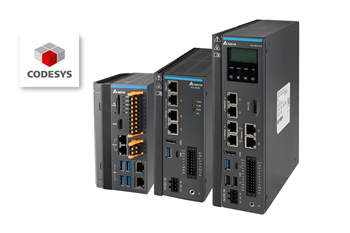

AX-8 Series Motion CPU

The AX-8 Series is designed for high-end motion control, focusing on multi-axis, high precision, and high-efficiency motion control applications.

Product Introduction

Features & Benefits



  • High-performance Intel x86 CPU
  • Supports diverse protocols: EtherCAT, PROFINET (Master/Slave), OPC UA (Server), EtherNet/IP, Modbus TCP/IP, CANopen
  • Built-in low-voltage detection and data overwriting functions for PACs
  • Supports local inputs/outputs, encoder input
  • Up to 128 axes synchronous servo control
  • The DIADesigner-AX development software complies with the international standard IEC 61131-3
  • Supports the following programming languages specified in IEC 61131-3: Function Block Diagram (FBD), Ladder Diagram (LD), Structured Text (ST), and Sequential Function Chart (SFC)


Applications
  • Electronics Assembly
  • Electronics
  • Lithium Battery
  • Photovoltaic
  • Woodworking
  • Stone Cutting
  • Injection Molding
  • Packaging
  • Printing


Specifications




Dimensions

You can search for more files in the download center

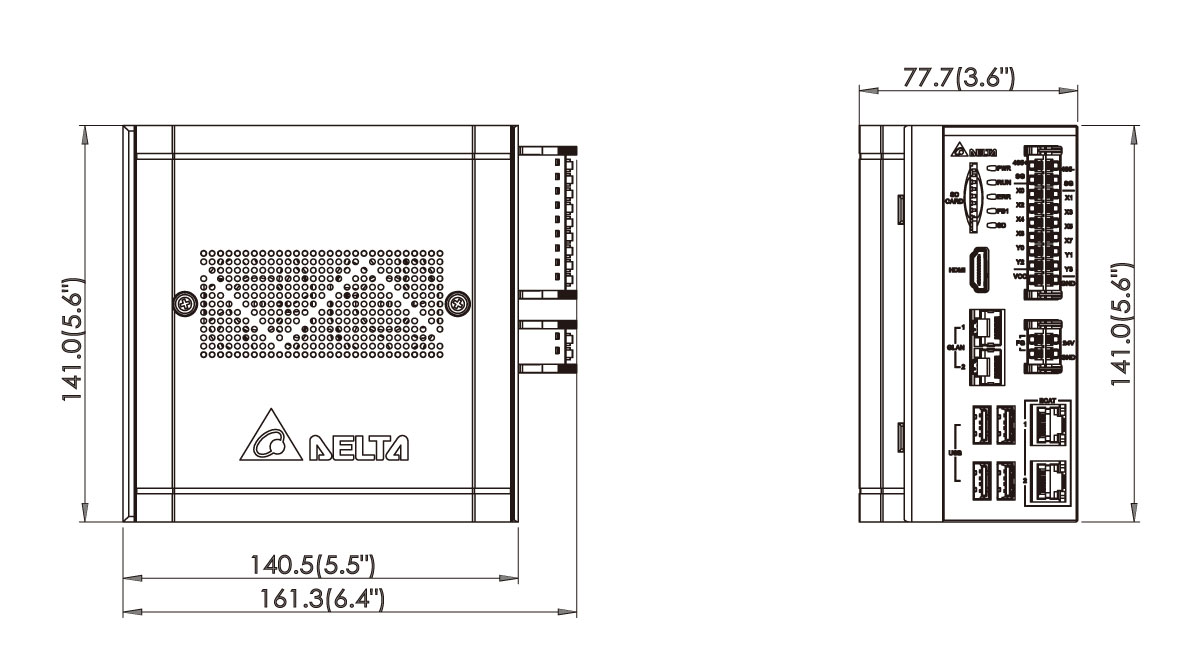

AX-8H1E30CD2T   (Unit: mm)

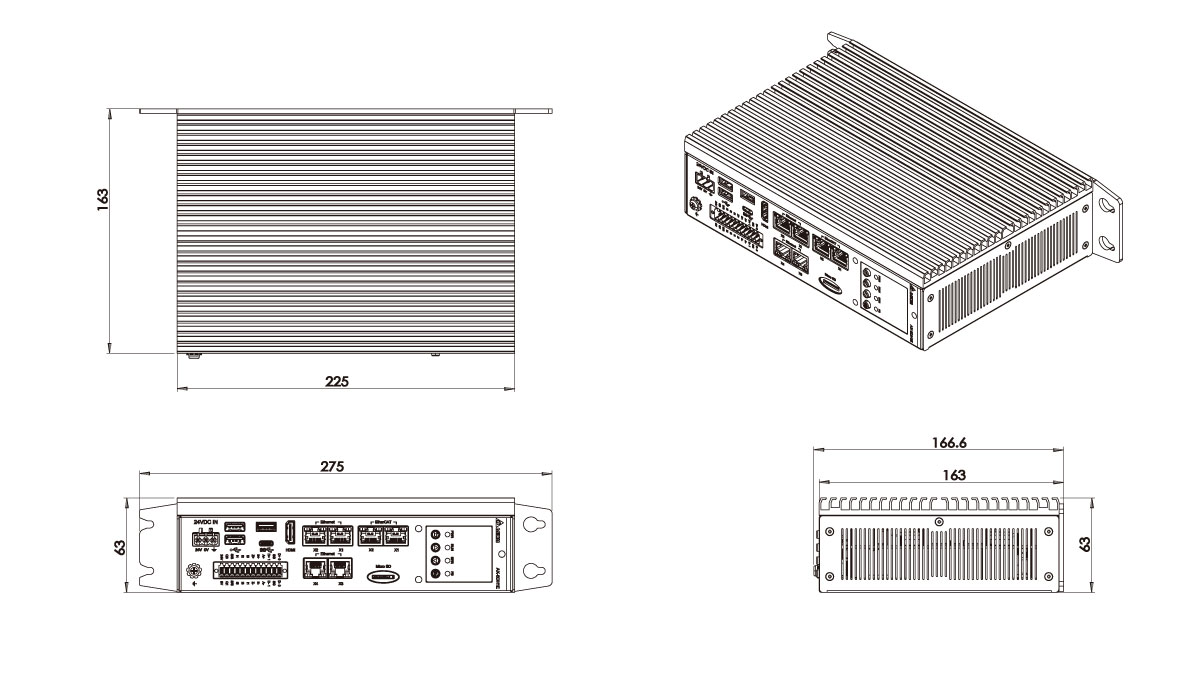

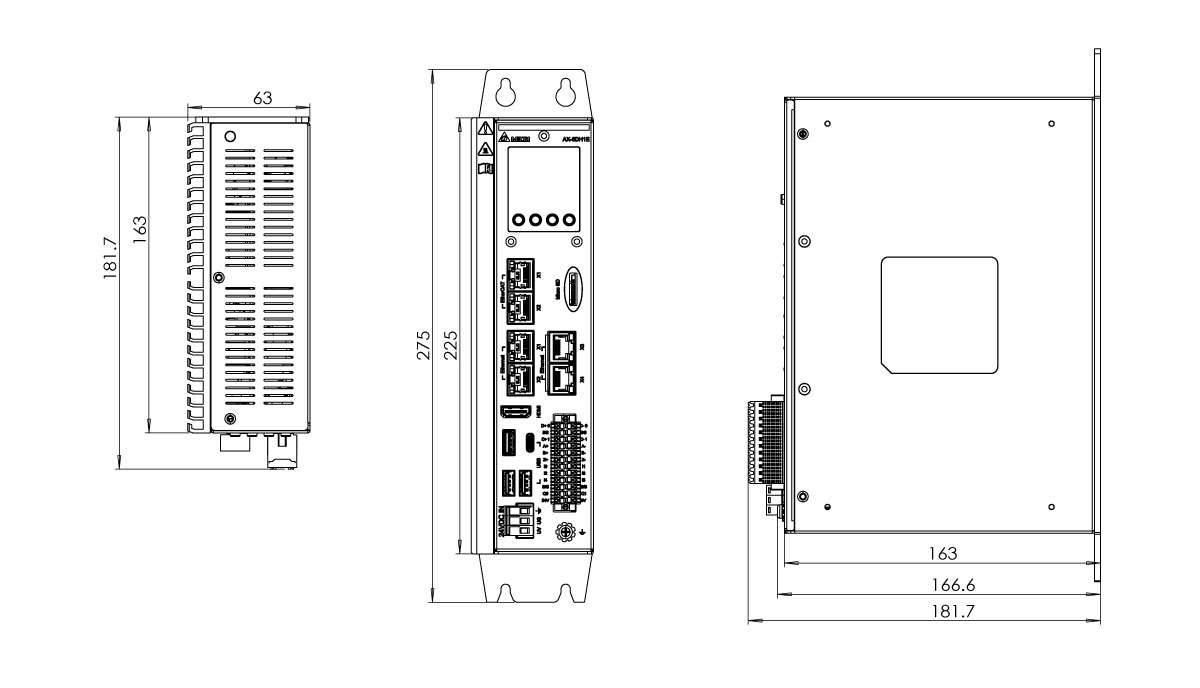

AX- 864EP1ME1TP(Unit: mm)

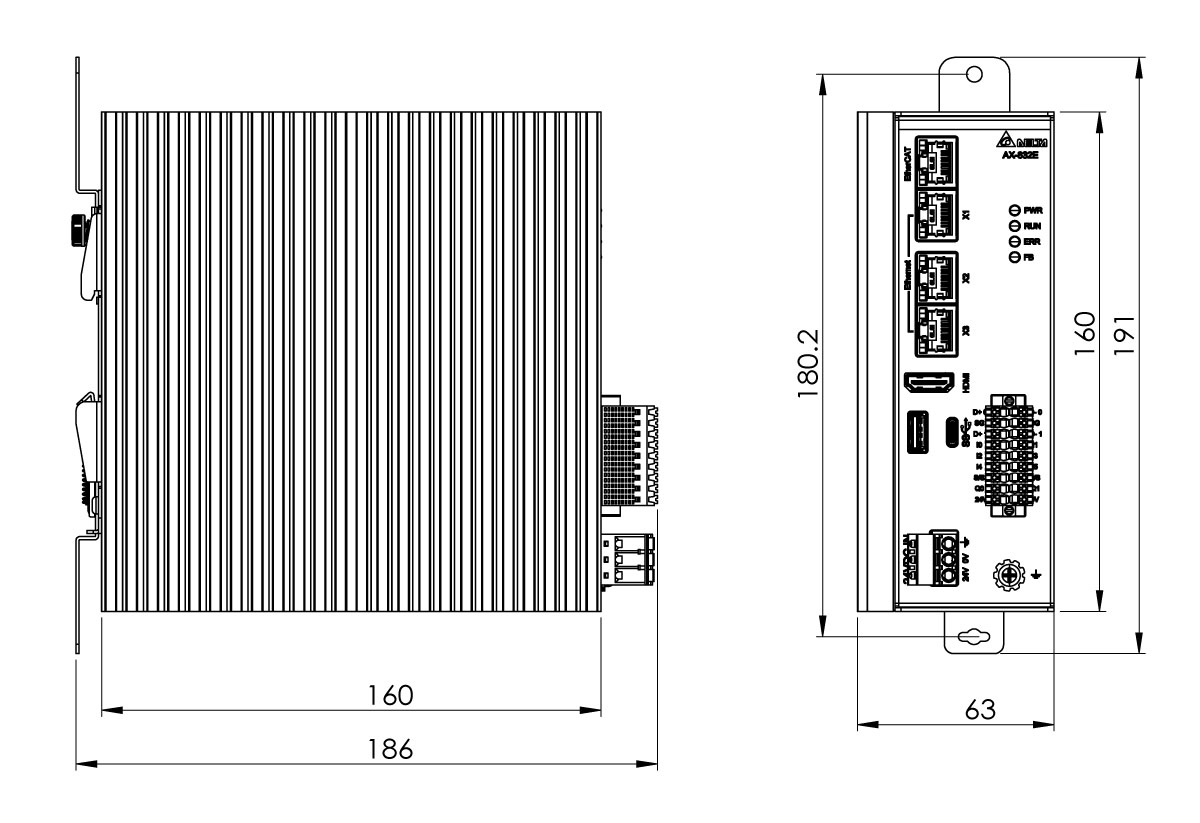

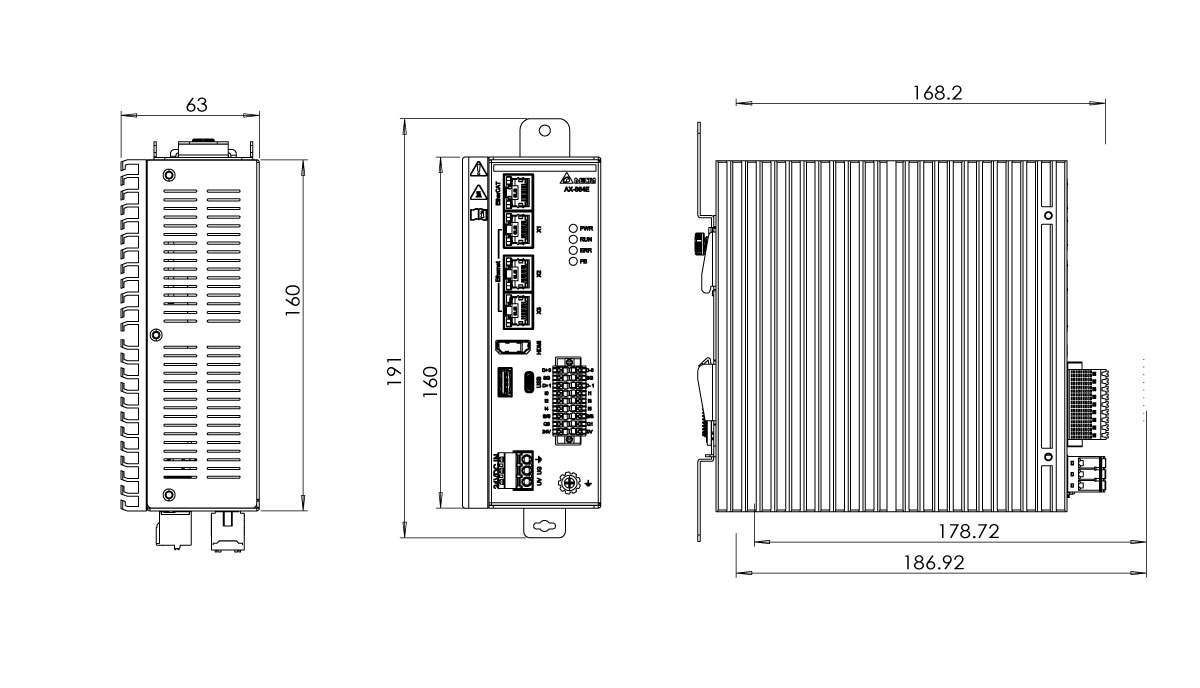

AX- 8DH1ECP1CE1TP(Unit: mm)





Model 2D-PDF
Click icon to download
2D-CAD
Click icon to download
3D-CAD
Click icon to download
AX-8xxEP0xx1x
AX-8H1E30CD2T
