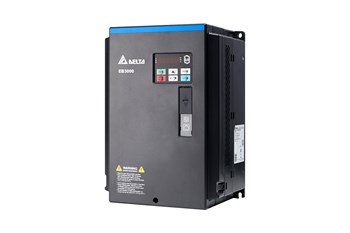

EB3000 Series

The Delta Elevator Drive EB3000 Series is safe and compliant for a comfortable passenger experience. It features a book-type-design in a compact size, which makes it easy to install in machine-room (MR) and machine-roomless (MRL) lifts of new projects and retrofits. As Delta’s new generation advanced elevator drive, the EB3000 Series operates without motor contactors, which reduces installation time and minimizes operating noise.

Product Introduction

Features & Benefits
Outstanding Drive Performance
  • Overload capacity up to 150% / 60 sec, and 200% / 3 sec.
  • Supports IM/PM motors with optional PG cards for high precision speed and position control
  • VF, SVC, FOCPG, and FOCPM control

High Compatibility
  • Built-in STO (SIL3)
  • Built-in brake transistor
  • Built-in CANlift CiA 417 and Modbus- DCP 3/ 4 communication
  • Optional models with built-in filter
  • Flexible UPS configuration
  • Supports various encoders:
    EnDat 2.1/ 01/ 02: Heidenhain ECN413/ ECN1313
    EnDat 2.2/ 01/ 21/ 02/ 22: Heidenhain ECN113/ ENC1325/ ENC425/ ECN125
    BiSS-C: WDGF 58R
    SSI: SMARS64
    SIN/ COS: Heidenhain ERN1387
    SICK HIPERFACE: SRS50/ SRS60

Comfortable
  • Direct landing mode to decrease creeping and travel time
  • S-curve speed to provide soft starting and stopping by gently increasing acceleration
  • Smooth start without load sensor
  • Low noise results from zero contactor

Smart
  • Bluetooth connection for remote control via the app



Specifications

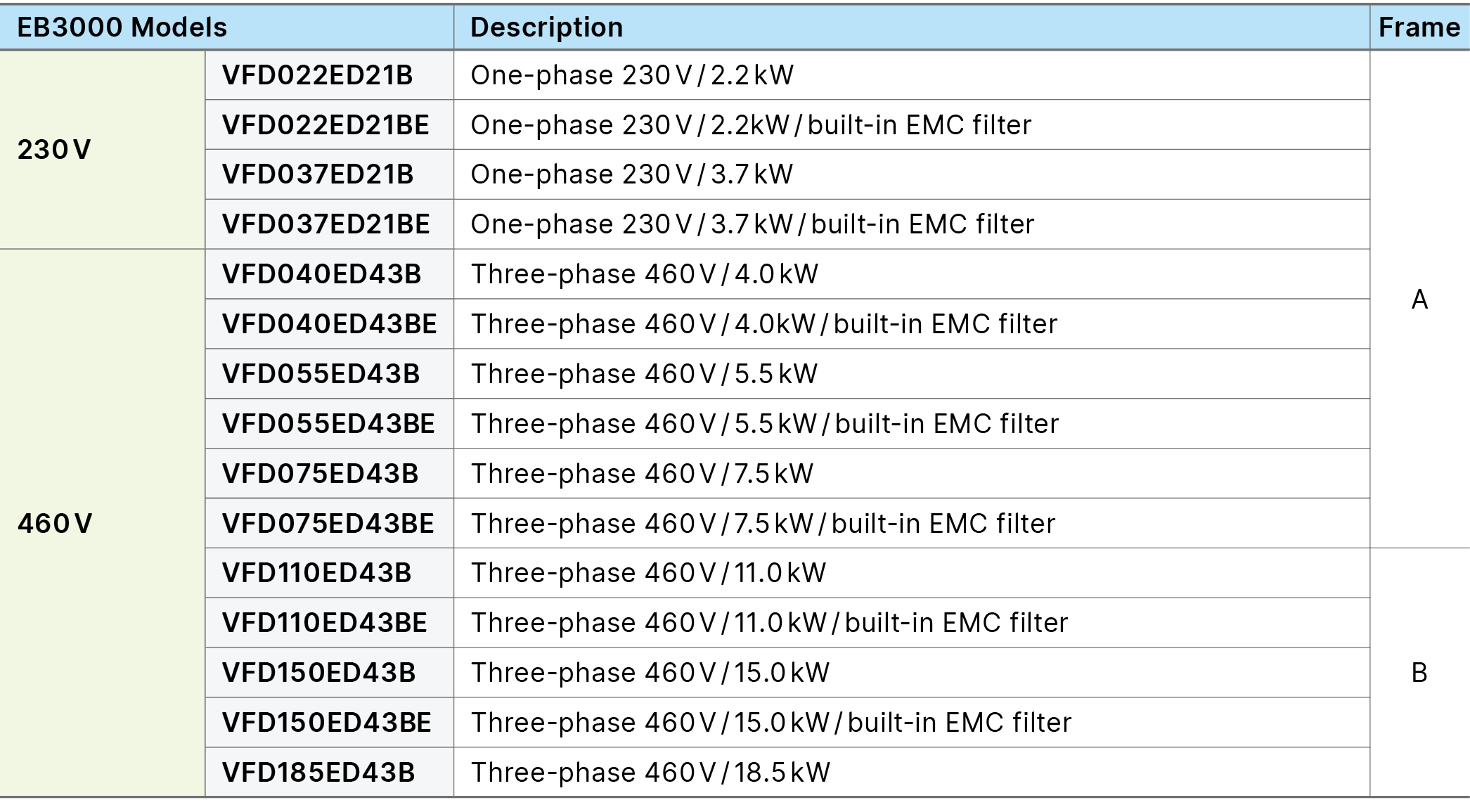

Power range

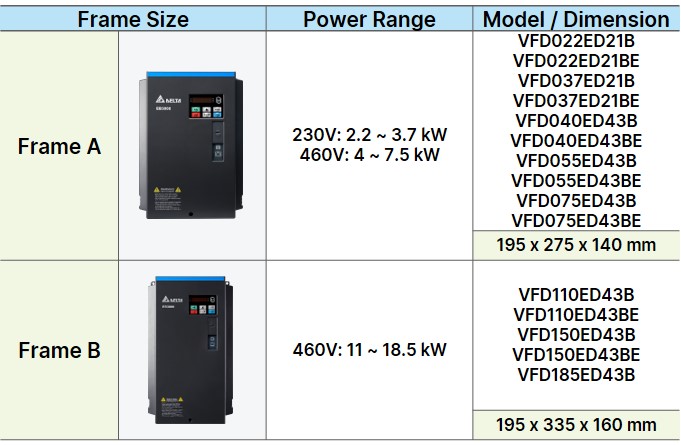

Dimensions
