UZR Gen3 Series

System Overview

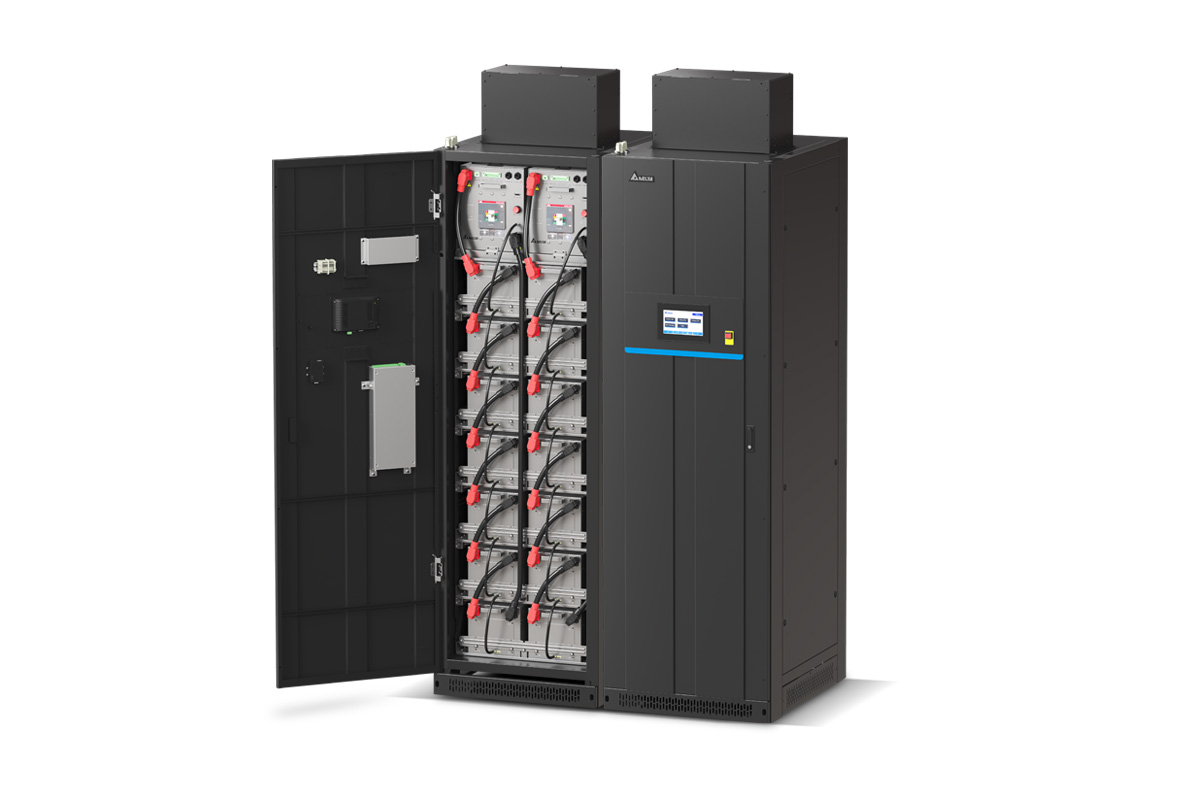

Battery Cabinet

• Standard 19” rack cabinet
• Integrated main BMS with gateway hub design for parallel communication connection
• Top cable entry (power and signal)
• Front access only for placing against a wall
• Compact design to highest energy density (106.5 kWh/m²) and power density (806 kW/m²) in a small footprint
• Capable of transporting battery modules inside
• GR-63-Core Zone 4 design available
• Dual aux. power sources (AC & DC)

Safety Control Box

• High-power applications
• Built-in safety breaker (MCCB rating 400 A)
• Dual relay/diode protection loop
• Built-in battery management unit (BMU)
• Meets isolation standard for power & control

Battery Module

• IP20 rating
• 20 cells in series connection
• Quick plug-in connector on the front panel
• Integrated cell monitor unit (AFE Board)
  - Monitors the voltage and temperature of each cell.
  - Communicates with the BMU for data collection and alarm notifications

Battery Cell

• High-power/long-life prismatic cell
• High capacity 60 Ah – Delta P140
• Nominal voltage 3.7 V



Features & Benefits

Applications

Specifications

1. Model
2. BSPRU-DE1072P0GL0 / BSPRU-DE1072S0GL0
   BSPRU-DE1071P0GL0 / BSPRU-DE1071S0GL0

3. ---

4. Electrical
5. Applied Cell Type
   DELTA P140-222-0
6. Installation Capacity
   BSPRU-DE1072P0GL0 / 1072S0GL0: 62.1 kWh
   BSPRU-DE1071P0GL0 / 1071S0GL0: 31.0 kWh
7. Nominal Voltage
   518 Vdc

8. ---

9. General
10. Dimensions (W x H x D)
    With top-hat: 668 x 2407 x 873 mm
    Without top-hat: 668 x 2100 x 873 mm
11. Total Weight (approximate)
    BSPRU-DE1072P0GL0 / 1072S0GL0: 975 kg (with modules)
    BSPRU-DE1071P0GL0 / 1071S0GL0: 660 kg (with modules)
12. Battery Module Quantity
    BSPRU-DE1072P0GL0 / 1072S0GL0: 14
    BSPRU-DE1071P0GL0 / 1071S0GL0: 7
13. Communication Bus
    Internal: CAN 2.0
    External: CAN 2.0, Modbus RTU/TCP, Dry contact

14. ---

15. Environmental
16. Ambient Operation Temperature
    5 to 35 °C
17. Storage Humidity
    5~85 %
18. Permissible Altitude
    ≤ 2000 m

19. ---

20. Certifications
21. Ingression Protection
    IP 20 class function
22. Safety Standard
    UL1973 (Cell/Module/Rack), IEC62619 (Cell/Module/Rack)
    JIS C 8715-2 (S-Mark) (Cell), UN 38.3 (Cell/Module)
    UL991, UL 1998 (Functional safety), UL9540A (Cell/Module/Rack), EN 61000-6-2, EN 61000-6-4
23. Quality Standard
    ISO 9001

24. ---

25.
    All specifications are subject to change without prior notice.
