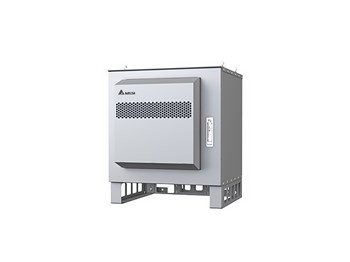

ESOA050-HEA Series

EOSA050-HEA Series combines high efficiency rectifiers, intelligent controller and adaptable PDUs and Li-ion battery, performing in high level in a robust enclosure.

Besides well protected by IP55 class enclosure, highly flexible thermal system such as fan cooling, HEX cooling, air conditioner or heater can overcome different environmental challenges, that is not only the battery life can be lengthened, but also the sensitive system can work in a perfect condition.

Product Introduction

Features & Benefits
  • Power system with maximum 2 rectifier slots for N+1
  • 3U housing space for telecoms equipment
  • 48 V / 50 Ah Li-ion Battery
Applications
  • 4G LTE / 5G
  • WiFi
  • Cable TV
Specifications
  1. Input Rated Voltage: 1Φ2W 100/200 VAC

  2. Input Voltage Range: 100/200 VAC ± 10%

  3. Frequency: 50/60 Hz ± 5%

  4. Output Rated Voltage: -54.0 VDC

  5. Output Voltage (adjustable range): -42 to -58 VDC

  6. Power Capacity: 2900 W (200 VAC Input), 1500 W (100VAC Input)

  7. Dimensions (W x H x D): 630 x 610 x 530 mm (24.80 x 24.01 x 20.86 in)

  8. Weight:
    approx. 84 kg (185 Ib) (Fan Cooling),
    approx. 88 kg (194 Ib) (HEX Cooling),
    approx. 97 kg (213 Ib) (Air Conditioner)

  9. Operating Temperature: -20 to +45°C (-4 to +113°F), -20 to 0°C (-4 to +32°F) with heater

  10. Storage Temperature: -40 to +70°C (-40 to +158°F)

  11. Cooling: Fan cooling or HEX Cooling or Air Conditioner

  12. Environment: RoHS
