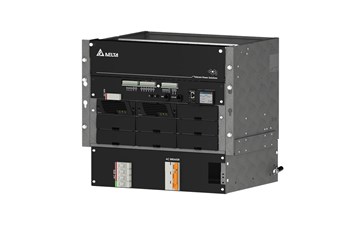

ESAH500-HAA Series

DC Power System
ESAH500-HAA Series is the power system playing the leader role in Telecom industry and Data center application with 500A of the power for 48V system. It is modular, expandable and can be easily installed in 19-inch enclosure, also with high cost-performance ratio and gorgeous efficiency all rolled into one, that is, your one of a kind energy core.

To maintain all aspects of the power performance, working perfectly at extremely high efficiency up to 96.2% and keeping low consumption, not to mention the ultra-leading power density, makes ESAH500-HAA Series the extraordinary green design and the savior of reducing CO2.

Relying on the advanced real time monitoring mechanism and comprehensive battery management, ensuring prevention before problems and lengthening the battery life can reach each component’s full potential in a compact 9.5U shelf and generate savings in OPEX.

Product Introduction

Features & Benefits
  • Hot swap rectifier and controller
  • Perfect Integration with Delta Outdoor Enclosure
  • Compact Design 9.5U System
Applications
  • 3G / 4G / 5G
  • Fixed Line
  • Datacom
Specifications
  1. Input Voltage (nominal):
    3Φ4W (R, S, T, N); VL-L: 380 VAC; VL-N: 220 VAC;
  3. Input Voltage (range): VL-N: 85–300 VAC, De-rating ≤ 176 VAC
  5. Frequency: 45–66 Hz
  7. Output Voltage: Nominal -48 VDC, Default -54 VDC
  9. Output Voltage (adjustable range): -43 to -58 VDC
  11. Maximum Power @ 54 VDC: 500 A with 09 rectifier slots for DPR 3000B-48
  13. Operating Voltage: 18–60 VDC
  15. Input Power: 0.8 ADC (Max.)
  17. Dimensions (W x H x D): 485 x 422 x 345.7 mm (19 x 16.5 x 13.6 in), Suitable with 19 inches standard rack
  19. Operating Temperature: 0 to +60°C (+32 to +140°F)
  21. Storage Temperature: -40 to +75°C (-40 to +167°F)
  23. Altitude: 0 to +3000 m
  25. Related Humidity: 5–95% RH, non-condensing
  27. Acoustic Noise: ≤ 60 dBA
  29. Safety Standard: EN / IEC 62368-1
  31. EMC Standard: EN 300 386, class B (rectifier)
  33. Environment Standard: RoHS
