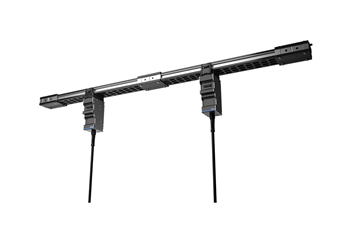

BR 系列, 250-1600 A

產品特色

客戶價值


• 具備高度彈性，可任意擴充配電容量，供資料中心靈活運用
• 安全性高，滿足資料中心要求
• 依市場或客戶需求滿足不同標準，如IEC、CNS、GB 等
• 大幅節省空間與重量，克服資料中心空間與承重的問題
• 複合材料一體成型，大幅降低EMC，保護資料中心精密設備，亦不影響人體健康

產品優勢

匯流排本體

• 功率 250A - 1600A 適應範圍廣
• 最高可達 200% Neutral
• 全模鑄式技術一體成型，鋁合金外殼, 內部填充環氧樹脂結構
• 可預留插孔或選擇Continuous Plug-In 插孔
• 多種長度可供選擇，如：1M、2M、3M、4M
• 多款顏色可選擇，並可接受客戶訂製長度
• 防護等級最高可達 IP55

插入單元

• 可活電熱插拔
• 簡單工具即可安裝
• 可輕鬆擴充或加入監控功能如電表、相序選擇等
• 可單模組使用或多模組並聯使用
• 可選配監控模組彈性使用

導體材料

• 可選擇銅導體或鋁導體
• 銅導體導電率為99.9% 以上
• 為求最佳導電及接觸可靠度，銅導體整體經表面鍍錫處理

樹脂原料

• 配方設計以最佳電氣、機械、防水、防火自熄等特性為目標
• 採用Class F 絕緣等級材料
• 最高可使用安全溫度為155℃
• 添加高比例的天然礦砂等無機材料，反應硬化成型為陶瓷材料，具有極佳的絕緣能力、機械強度及高耐火特性 (提高至IP55)

客戶利益

安全 Safe

• 安裝者：每一安裝步驟均有貼心的防呆設計
• 操作者：不須太多工具使用，能輕鬆加裝插入單元
• 符合 IEC 61439 / UL 857 低壓產品安全認證

可靠 Reliable

• 安裝面的風險，也因為較強的結構而減少許多工地吊運、組裝可能發 生的損壞
• 採用Sishield 技術，使導體處於最佳的排列狀態，再加上複合材料一 體成型，大幅降低EMC，減少對精密設備的干擾
• 永久免維護

效率 Efficient

• 不受空間和位置限制，能有效安裝設計，不需專業的技師也可安裝
• 插入單元也採模組化設計，擴充簡單又快速
• 一旦遇到設計變更，客戶可以大幅節省待料時間
• 不論是安裝、擴充或變更，可以省下一筆成本上的負擔

技術規格

1. 匯流排
2. Rating: 250/ 400/ 600/ 800/ 1000/ 1250/ 1600/ 2000 A
3. Rated voltage: 1000 V
4. Frequency: 50/60 Hz
5. Conductor:
   Copper purity: 99.9%, conductivity: 99.9% IACS
   Aluminum purity: 98.8%, conductivity: 56.0% IACS
6. Conductor plating: Tin plating (Std)
7. Insulation material: Epoxy cast resin
8. Insulation class: Class F (155℃)
9. Enclosure/ housing: Epoxy/ Aluminum
10. Fire protection: UL94 V0
11. Ingress protection rating: IP20; IP55 (optional)
12. Mechanical Impact: IK10
13. Earthquake test: 0.8 g [magnitude >7]; Zone 4

14. ---

15. Plug-in Unit
16. Contact design: Plug-in type
17. Type:
    Rv: mounted to busway section vertically
    Rh: mounted to busway section horizontally
18. Configuration:
    Plug-in unit w/ MCB/ELCB/RCBO
    Plug-in unit w/ MCB/RCB + Socket-outlets
    Plug-in unit w/ MCB/RCBO + Power Meter
    Plug-in unit w/ MCB + Over Temperature Detect System
19. Max. Rating: 400 A
20. MCCB brands: ABB(Std.), Mitsubishi, Fuji, GE, Schneider or Customer specified
21. Ingress protection rating: IP20; IP42/55 (optional)
22. Panel coating: Powder coated paint
23. Color: RAL 9011/ RAL9003

24. ---

25. General Data
26. Standards:
    IEC61439, IEC60529, IEC60331, IEC60332
    CNS14286, CNS12514, CNS14165, CNS11073
    UL857
27. Ambient temperature: -20℃ /+50℃ avg. 35℃
28. Altitude: Below 2000 m from sea level

29. ---

匯流排

1. 銅
2. Model: BRC02
3. Rated current: 250 A
4. Impedance values*:
   Resistance R₂₀: 213.0 μΩ/m
   Resistance R₈₀: 263.2 μΩ/m
   Resistance X₅₀: 138.1 μΩ/m
   Impedance Z₅₀: 297.2 μΩ/m
   Resistance X₆₀: 165.7 μΩ/m
   Impedance Z₆₀: 311.0 μΩ/m
5. Conductor Cross-section Area:
   L1,L2,L3: 50 mm^²
   N (100%): 50 mm^²
   G (Internal): 50 mm^²
6. Dimensions (W x H): 117 x 58 mm
7. Weight: 12 kg/m

8. ---

9. Model: BRC04
10. Rated current: 400 A
11. Impedance values*:
    Resistance R₂₀: 178.0 μΩ/m
    Resistance R₈₀: 220.0 μΩ/m
    Resistance X₅₀: 129.5 μΩ/m
    Impedance Z₅₀: 255.3 μΩ/m
    Resistance X₆₀: 155.4 μΩ/m
    Impedance Z₆₀: 269.3 μΩ/m
12. Conductor Cross-section Area:
    L1,L2,L3: 72.5 mm^²
    N (100%): 72.5 mm^²
    G (Internal): 72.5 mm^²
13. Dimensions (W x H): 117 x 58 mm
14. Weight: 13 kg/m

15. ---

16. Model: BRC06
17. Rated current: 600 A
18. Impedance values*:
    Resistance R₂₀: 117.8 μΩ/m
    Resistance R₈₀: 145.6 μΩ/m
    Resistance X₅₀: 87.8 μΩ/m
    Impedance Z₅₀: 170.0 μΩ/m
    Resistance X₆₀: 105.3 μΩ/m
    Impedance Z₆₀: 179.7 μΩ/m
19. Conductor Cross-section Area:
    L1,L2,L3: 145 mm^²
    N (100%): 145 mm^²
    G (Internal): 72.5 mm^²
20. Dimensions (W x H): 117 x 58 mm
21. Weight: 15 kg/m

22. ---

23. Model: BRC08
24. Rated current: 800 A
25. Impedance values*:
    Resistance R₂₀: 74.6 μΩ/m
    Resistance R₈₀: 92.2 μΩ/m
    Resistance X₅₀: 67.8 μΩ/m
    Impedance Z₅₀: 114.4 μΩ/m
    Resistance X₆₀: 81.3 μΩ/m
    Impedance Z₆₀: 122.9 μΩ/m
26. Conductor Cross-section Area:
    L1,L2,L3: 232 mm^²
    N (100%): 232 mm^²
    G (Internal): 116 mm^²
27. Dimensions (W x H): 117 x 73 mm
28. Weight: 23 kg/m

29. ---

30. Model: BRC10
31. Rated current: 1000 A
32. Impedance values*:
    Resistance R₂₀: 55.8 μΩ/m
    Resistance R₈₀: 69.0 μΩ/m
    Resistance X₅₀: 49.8 μΩ/m
    Impedance Z₅₀: 85.1 μΩ/m
    Resistance X₆₀: 59.8 μΩ/m
    Impedance Z₆₀: 91.3 μΩ/m
33. Conductor Cross-section Area:
    L1,L2,L3: 307.4 mm^²
    N (100%): 307.4 mm^²
    G (Internal): 153.7 mm^²
34. Dimensions (W x H): 117 x 86 mm
35. Weight: 32 kg/m

36. ---

37. Model: BRC12
38. Rated current: 1250 A
39. Impedance values*:
    Resistance R₂₀: 37.2 μΩ/m
    Resistance R₈₀: 46.0 μΩ/m
    Resistance X₅₀: 38.5 μΩ/m
    Impedance Z₅₀: 60.0 μΩ/m
    Resistance X₆₀: 46.2 μΩ/m
    Impedance Z₆₀: 65.2 μΩ/m
40. Conductor Cross-section Area:
    L1,L2,L3: 464 mm^²
    N (100%): 464 mm^²
    G (Internal): 232 mm^²
41. Dimensions (W x H): 117 x 113 mm
42. Weight: 46 kg/m

43. ---

44. Model: BRC16
45. Rated current: 1600 A
46. Impedance values*:
    Resistance R₂₀: 24.6 μΩ/m
    Resistance R₈₀: 30.4 μΩ/m
    Resistance X₅₀: 25.5 μΩ/m
    Impedance Z₅₀: 39.7 μΩ/m
    Resistance X₆₀: 30.6 μΩ/m
    Impedance Z₆₀: 43.1 μΩ/m
47. Conductor Cross-section Area:
    L1,L2,L3: 696 mm^²
    N (100%): 696 mm^²
    G (Internal): 348 mm^²
48. Dimensions (W x H): 117 x 153 mm
49. Weight: 59 kg/m

50. ---

51. Model: BRC20**
52. Rated current: 2000 A
53. Impedance values*:
    Resistance R₂₀: 18.8 μΩ/m
    Resistance R₈₀: 23.2 μΩ/m
    Resistance X₅₀: 20.1 μΩ/m
    Impedance Z₅₀: 30.7 μΩ/m
    Resistance X₆₀: 24.1 μΩ/m
    Impedance Z₆₀: 33.5 μΩ/m
54. Conductor Cross-section Area:
    L1,L2,L3: 928 mm^²
    N (100%): 928 mm^²
    G (Internal): 464 mm^²
55. Dimensions (W x H): 117 x 193 mm
56. Weight: 65 kg/m

57. ---

58. 鋁
59. Model: BRA02
60. Rated current: 250 A
61. Impedance values*:
    Resistance R₂₀: 312.0 μΩ/m
    Resistance R₈₀: 385.6 μΩ/m
    Resistance X₅₀: 150.0 μΩ/m
    Impedance Z₅₀: 413.7 μΩ/m
    Resistance X₆₀: 180.0 μΩ/m
    Impedance Z₆₀: 425.5 μΩ/m
62. Conductor Cross-section Area:
    L1,L2,L3: 100 mm^²
    N (100%): 100 mm^²
    G (Internal): 50 mm^²
63. Dimensions (W x H): 117 x 58 mm
64. Weight: 11 kg/m

65. ---

66. Model: BRA04
67. Rated current: 400 A
68. Impedance values*:
    Resistance R₂₀: 213.0 μΩ/m
    Resistance R₈₀: 263.2 μΩ/m
    Resistance X₅₀: 138.1 μΩ/m
    Impedance Z₅₀: 297.2 μΩ/m
    Resistance X₆₀: 165.7 μΩ/m
    Impedance Z₆₀: 311.0 μΩ/m
69. Conductor Cross-section Area:
    L1,L2,L3: 145 mm^²
    N (100%): 145 mm^²
    G (Internal): 72.5 mm^²
70. Dimensions (W x H): 117 x 58 mm
71. Weight: 12 kg/m

72. ---

73. Model: BRA06
74. Rated current: 600 A
75. Impedance values*:
    Resistance R₂₀: 122.0 μΩ/m
    Resistance R₈₀: 150.8 μΩ/m
    Resistance X₅₀: 100.0 μΩ/m
    Impedance Z₅₀: 180.9 μΩ/m
    Resistance X₆₀: 120.0 μΩ/m
    Impedance Z₆₀: 192.7 μΩ/m
76. Conductor Cross-section Area:
    L1,L2,L3: 232 mm^²
    N (100%): 232 mm^²
    G (Internal): 116 mm^²
77. Dimensions (W x H): 117 x 73 mm
78. Weight: 14 kg/m

79. ---

80. Model: BRA08
81. Rated current: 800 A
82. Impedance values*:
    Resistance R₂₀: 93.5 μΩ/m
    Resistance R₈₀: 115.5 μΩ/m
    Resistance X₅₀: 59.8 μΩ/m
    Impedance Z₅₀: 130.1 μΩ/m
    Resistance X₆₀: 71.7 μΩ/m
    Impedance Z₆₀: 136.0 μΩ/m
83. Conductor Cross-section Area:
    L1,L2,L3: 307.4 mm^²
    N (100%): 307.4 mm^²
    G (Internal): 153.7 mm^²
84. Dimensions (W x H): 117 x 86 mm
85. Weight: 21 kg/m

86. ---

87. Model: BRA10
88. Rated current: 1000 A
89. Impedance values*:
    Resistance R₂₀: 62.6 μΩ/m
    Resistance R₈₀: 77.4 μΩ/m
    Resistance X₅₀: 46.7 μΩ/m
    Impedance Z₅₀: 90.3 μΩ/m
    Resistance X₆₀: 56.0 μΩ/m
    Impedance Z₆₀: 95.5 μΩ/m
90. Conductor Cross-section Area:
    L1,L2,L3: 464 mm^²
    N (100%): 464 mm^²
    G (Internal): 232 mm^²
91. Dimensions (W x H): 117 x 113 mm
92. Weight: 30 kg/m

93. ---

94. Model: BRA12
95. Rated current: 1250 A
96. Impedance values*:
    Resistance R₂₀: 49.7 μΩ/m
    Resistance R₈₀: 61.4 μΩ/m
    Resistance X₅₀: 40.8 μΩ/m
    Impedance Z₅₀: 73.8 μΩ/m
    Resistance X₆₀: 49.0 μΩ/m
    Impedance Z₆₀: 78.6 μΩ/m
97. Conductor Cross-section Area:
    L1,L2,L3: 580 mm^²
    N (100%): 580 mm^²
    G (Internal): 290 mm^²
98. Dimensions (W x H): 117 x 133 mm
99. Weight: 42 kg/m

100. ---

101. Model: BRA16
102. Rated current: 1600 A
103. Impedance values*:
     Resistance R₂₀: 41.8 μΩ/m
     Resistance R₈₀: 51.7 μΩ/m
     Resistance X₅₀: 32.7 μΩ/m
     Impedance Z₅₀: 61.1 μΩ/m
     Resistance X₆₀: 39.2 μΩ/m
     Impedance Z₆₀: 64.8 μΩ/m
104. Conductor Cross-section Area:
     L1,L2,L3: 928 mm^²
     N (100%): 928 mm^²
     G (Internal): 464 mm^²
105. Dimensions (W x H): 117 x 193 mm
106. Weight: 55 kg/m

107. ---

108. Model: BRA20**
109. Rated current: 2000 A
110. Impedance values*:
     Resistance R₂₀: 25.4 μΩ/m
     Resistance R₈₀: 31.4 μΩ/m
     Resistance X₅₀: 19.0 μΩ/m
     Impedance Z₅₀: 36.7 μΩ/m
     Resistance X₆₀: 22.8 μΩ/m
     Impedance Z₆₀: 38.8 μΩ/m
111. Conductor Cross-section Area:
     L1,L2,L3: 1160 mm^²
     N (100%): 1160 mm^²
     G (Internal): 580 mm^²
112. Dimensions (W x H): 117 x 233 mm
113. Weight: 59 kg/m

114. ---

115. * Impedance values are for busway operating at 20/80℃ temperature.
     ** The model is not available in North America.


插入單元 / Plug-in Unit (Rv 系列)

1. Rating: 16 A
   Model: Rv-A3P16
   Dimensions (H x D x W): 330 x 165 x 100 mm
   IP Rating: IP42
   Weight: 3 kg

2. ---

3. Rating: 32 A
   Model: Rv-A3P32
   Dimensions (H x D x W): 330 x 165 x 100 mm
   IP Rating: IP42
   Weight: 3 kg

4. ---

5. Rating: 63 A
   Model: Rv-A3P63
   Dimensions (H x D x W): 330 x 165 x 100 mm
   IP Rating: IP42
   Weight: 5 kg

6. ---

7. Rating: 125 A
   Model: Rv-A3P125
   Dimensions (H x D x W): 330 x 165 x 200 mm
   IP Rating: IP42
   Weight: 12 kg

8. ---

9. Rating: 250 A
   Model: Rv-A3P250
   Dimensions (H x D x W): 330 x 165 x 300 mm
   IP Rating: IP42
   Weight: 20 kg

10. ---

11. Rating: 400 A
    Model: Rv-A3P400
    Dimensions (H x D x W): 330 x 165 x 300 mm
    IP Rating: IP42
    Weight: 26 kg

12. ---


插入單元 / Plug-in Unit (Rh 系列)

1. Rating: 16 A
   Model: Rh-A3P16
   Dimensions (H x D x W): 250 x 243 x 100 mm
   IP Rating: IP42
   Weight: 3 kg

2. ---

3. Ratin: 32 A
   Model: Rh-A3P32
   Dimensions (H x D x W): 250 x 243 x 100 mm
   IP Rating: IP42
   Weight: 3 kg

4. ---

5. Rating: 63 A
   Model: Rh-A3P63
   Dimensions (H x D x W): 250 x 243 x 100 mm
   IP Rating: IP42
   Weight: 5 kg

6. ---

7. Rating: 125 A
   Model: Rh-A3P125
   Dimensions (H x D x W): 250 x 243 x 200 mm
   IP Rating: IP42
   Weight: 12 kg

8. ---

9. Rating: 250 A
   Model: Rh-A3P250
   Dimensions (H x D x W): 250 x 243 x 300 mm
   IP Rating: IP42
   Weight: 20 kg

10. ---

11. Rating: 400 A
    Model: Rh-A3P400
    Dimensions (H x D x W): 250 x 243 x 300 mm
    IP Rating: IP42
    Weight: 26 kg

12. ---


末端接線箱

1. Rating: 250 A
2. Model: ECM-250 MCCB
   Dimensions (W x H x D): 480 x 300 x 240 mm
   IP Rating: IP42
   Weight: 17 kg
3. Model: ECT-250 Terminal
   Dimensions (W x H x D): 430 x 300 x 160 mm
   IP Rating: IP42
   Weight: 15 kg

4. ---

5. Rating: 400 A
6. Model: ECM-400 MCCB
   Dimensions (W x H x D): 480 x 300 x 240 mm
   IP Rating: IP42
   Weight: 19 kg
7. Model: ECT-400 Terminal
   Dimensions (W x H x D): 430 x 300 x 160 mm
   IP Rating: IP42
   Weight: 15 kg

8. ---

9. Rating: 630 A
10. Model: ECM-630 MCCB
    Dimensions (W x H x D): 480 x 300 x 240 mm
    IP Rating: IP42
    Weight: 20 kg
11. Model: ECT-630 Terminal
    Dimensions (W x H x D): 430 x 300 x 160 mm
    IP Rating: IP42
    Weight: 17 kg

12. ---

13. Rating: 800 A
14. Model: BRC086EB Terminal
    Dimensions (W x H x D): 500 x 650 x 220 mm
    IP Rating: IP42
    Weight: 35 kg

15. ---

16. Rating: 1000 A
17. Model: BRC106EB Terminal
    Dimensions (W x H x D): 500 x 650 x 233 mm
    IP Rating: IP42
    Weight: 38 kg

18. ---

19. Rating: 1250 A
20. Model: BRC126EB Terminal
    Dimensions (W x H x D): 500 x 650 x 260 mm
    IP Rating: IP42
    Weight: 45 kg

21. ---

22. Rating: 1600 A
23. Model: BRC166EB Terminal
    Dimensions (W x H x D): 500 x 650 x 300 mm
    IP Rating: IP42
    Weight: 55 kg

24. ---

25. Rating: 2000 A
26. Model: BRC206EB Terminal
    Dimensions (W x H x D): 500 x 650 x 340 mm
    IP Rating: IP42
    Weight: 65 kg

27. ---
