09/23/2026Delta’s Lift-Off Lid Box Assembly Solution Integrates SCARA Robots and Machine Vision to Enhance Precision Assembly Efficiency

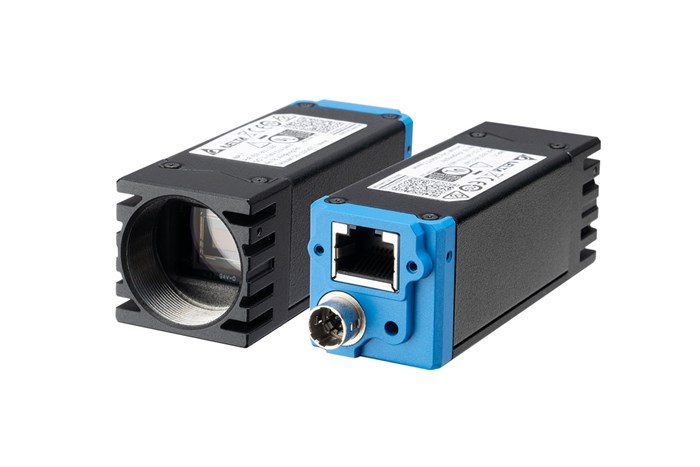

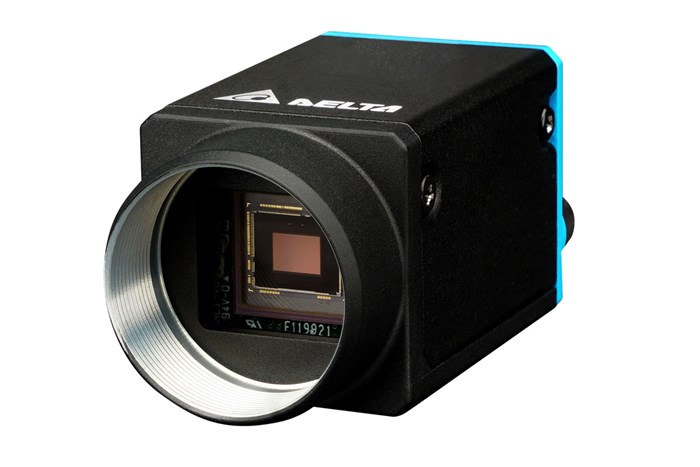

Lift-off lid boxes, consisting of a top lid and base, are widely used in consumer electronics, cosmetics, luxury goods, and gift packaging. As box designs and production requirements become more diverse, manufacturers need greater precision, consistency, and flexibility in handling, positioning, and bonding. However, conventional lift-off lid box assembly relies heavily on manual operations, which can lead to positioning errors and inconsistent quality. Frequent equipment reconfiguration for different box types and sizes also increases changeover times, while separate robotics, vision, and control systems add complexity to machine development, setup, and maintenance. To address these challenges, Delta’s Lift-Off Lid Box Assembly Solution integrates SCARA robots, a machine vision platform, industrial cameras, PLCs, and servo motors for paperboard handling, vision positioning, pick-and-place, and bonding. Flexible robot and machine vision configurations accommodate different box types, sizes, and assembly processes, enabling fast, precise, and flexible automated assembly. The Delta SCARA Robot DRS65FA Series delivers high-speed motion and excellent repeatability, with a standard cycle time as fast as 0.29 seconds. In a case involving mobile phone box assembly, it achieves up to 42 boxes per minute with ±0.15 mm assembly accuracy. Delta’s Machine Vision Solution integrates the GigE Industrial Camera DMV-C Series with the Machine Vision Platform DIAVision. The camera captures workpiece images, while DIAVision performs vision positioning and robot guidance and brings vision workflows and device settings into a single interface for a simpler, more flexible setup. Delta’s Lift-Off Lid Box Assembly Solution offers the following benefits: ● High-Speed, Precise Assembly for Higher Productivity: Delta SCARA Robot DRS65FA Series delivers high-speed performance with excellent repeatability, and high allowable inertia, with a standard cycle time as fast as 0.29 seconds. It enables rapid pick-and-place, transfer, and assembly while ensuring stable handling and rotation of larger boxes. In a mobile phone box assembly application, the solution achieves up to 42 boxes per minute with ±0.15 mm accuracy, effectively boosting productivity. ● Fast Changeovers for Greater Production Flexibility: Delta Machine Vision Solution integrates the Machine Vision Platform DIAVision with GigE Industrial Camera DMV-C Series, offering multiple resolutions and image acquisition modes for different needs. DIAVision integrates vision positioning, robot guidance, workflow editing, and parameter settings, with automatic vision calibration for precise pick-and-place and alignment. Single, dual, top-and-bottom, and triple-vision configurations simplify setup and calibration, enhancing flexibility for low-volume, high-mix production. ● Unified Platform for Easier Development and Commissioning: The Machine Vision Platform DIAVision supports cross-platform operation and multiple industrial communication protocols for seamless integration cameras, robots, industrial controllers, and other peripheral devices. This reduces switching across different software and equipment, streamlining machine development and commissioning while simplifying management and maintenance. Delta’s Lift-Off Lid Box Assembly Solution combines assembly efficiency, consistent quality, and production flexibility to meet diverse manufacturing needs. Beyond paper box packaging, the solution can also be applied to precision bonding and labeling processes for flexible films, soft materials, and electronic components, enabling a wider range of automation applications.
