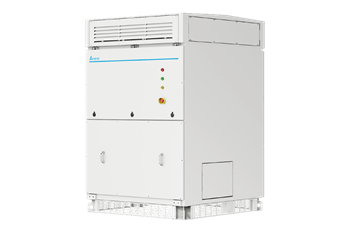

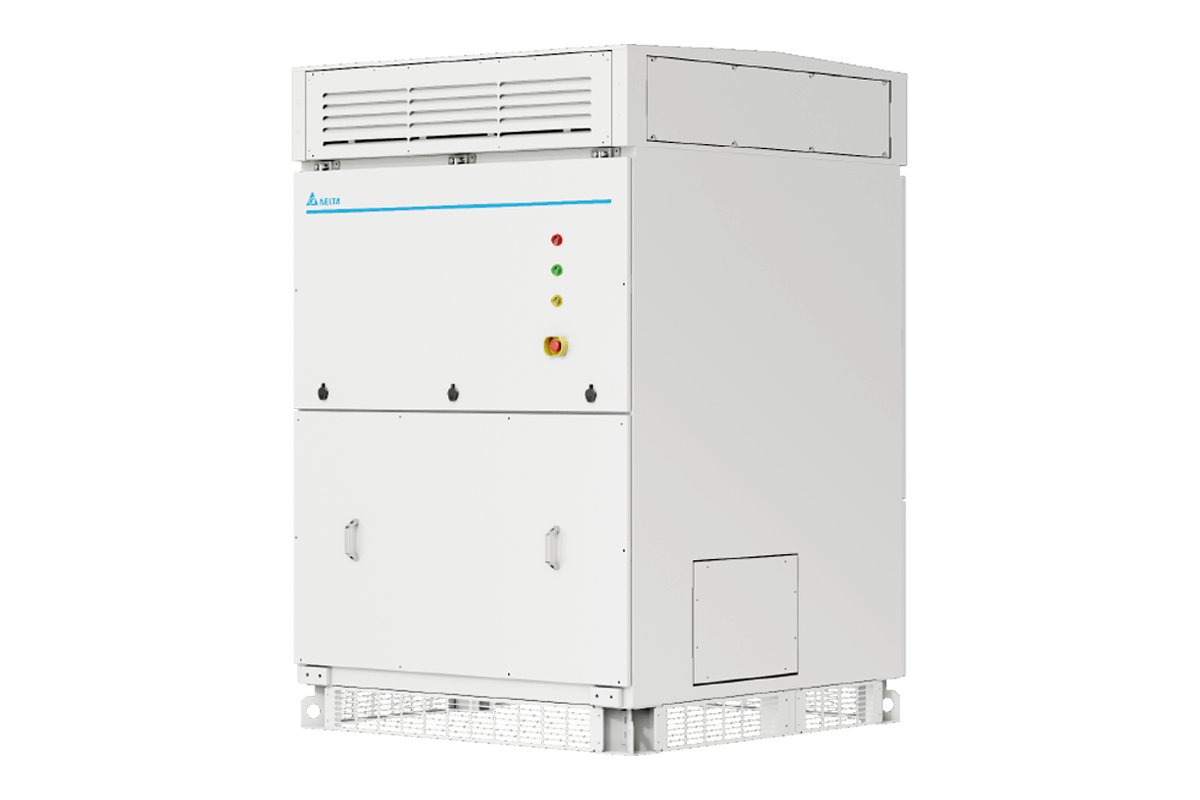

PEM3000A-3000A

Hydrogen Power Supply Solutions for PEM Electrolyzers

Delta's DC power supply is designed for hydrogen production applications using electrolyzers with a capacity of 500 N.m3. It provides high-quality, efficient, and cost-effective DC power to electrolyzers . IGBT scheme provides low iTHD and high power factor.

Product Introduction

Key Benefits
  • Fast power regulation, adapts to renewable energy, wide power operating range
  • Power factor ≥ 0.99, Max efficiency ≥98.8%, reactive power compensation
  • 1500V ANPC 3 level topology, current harmonic < 3%
Feature Highlights
Delta-Hydrogen Energy Solution-PEM Electrolyzer-Efficient and Precise

Efficient and Precise Power Control

  • Single cabinet power capacity: 3000kVA
  • DC voltage range: 994Vdc to 1500 Vdc
  • Current accuracy: ≤1%
  • Peak efficiency: 98.8%
Delta-Hydrogen Energy Solution-PEM Electrolyzer-Designed for Renewable Energy Applications

Designed for Renewable Energy Applications

  • Utility-grade protection designed for harsh environment
  • Automatic voltage and frequency regulation
  • Reactive power compensation
  • Extremely small current harmonics
  • Outstanding capacity for LVRT & HVRT
Delta-Hydrogen Energy Solution-PEM Electrolyzer-Flexible System Configuration

Flexible System Configuration

  • Modular design enables scalability and availability
  • Extendable to 10 MW via paralleling


Applications

Power Grid Hydrogen Production

Solar Plant Hydrogen Production

Wind Power Hydrogen Production


Topology
台達-水電解製氫-PEM 電解槽製氫電源解決方案-PEM300A-系統架構
