Multi-Loop Modular Temperature Controller – DTN Series

The DTN series consists of a measurement host, measurement extension module, I/O extension modules, an Ethernet module and EtherCAT module. A fully extended DTN group consists of a host, 7 measurement extension modules, 8 I/O extension modules, an Ethernet module or EtherCAT module for up to 64-point temperature control and section-compartmentalized heating.

The DTN series supports RS-485 connection and Ethernet / EtherCAT communication to achieve quick expansion, suitable for high-end multi-point temperature control applications.

Catalog

Product Introduction

  • Thin-type design saves installation space
  • Modular design allows flexible expansion and easy maintenance
  • Fast module connection via RS-485 and Ethernet
  • Multiple measurement modules can form up to 64 channels of PID control loops
  • Various extension modules (Measurement, I/O Extension, Ethernet and EtherCAT) available for different applications
  • Isolation between channels prevents electricity leakage and noise jamming during operation


Features & Benefits
Thin-type Design Saves Horizontal Mounting Space
  • Reduces width by 65% compared to the DTE Series
  • Saves horizontal mounting space
  • Overcomes the limitation of cabinet size





Various Extension Modules for Flexible Applications
  • The DTN Series consists of a measurement host, a measurement extension module, I/O extension modules, an Ethernet module and EtherCAT module
  • A single measurement host or measurement extension module provides up to 8 control loops. A DTN group may include a measurement host and multiple measurement extension modules, providing up to 64 control loops:
    (Measurement host + output extension module) × 1 + (Measurement extension module + output extension module) × 7

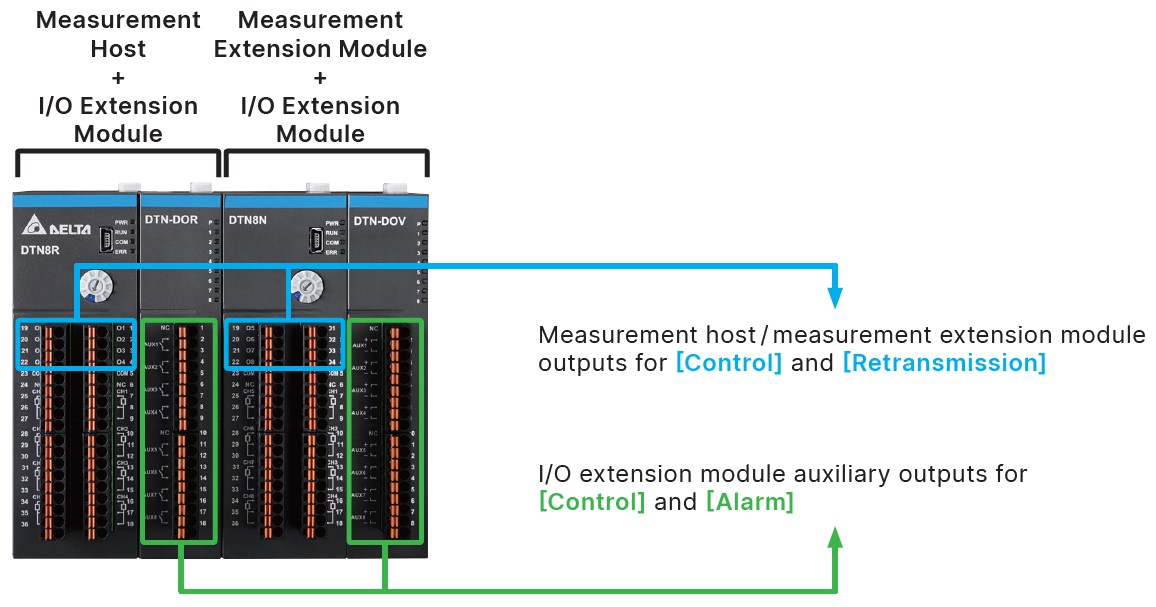

  • Each measurement host or measurement extension module can pair with one I/O extension module for flexible [Control], [Alarm], and [Retransmission] output configuration






Ethernet Communication for Fast and Stable Transition & Simple Wiring
  • Internal communication interface, collects data from all extension modules at any time for high communication efficiency
  • Connects multiple Ethernet devices with dual ports to simplify wiring
  • Supports Modbus TCP and Ethernet / IP
  • Features Gateway function to support the temperature controllers with Modbus interface via RS-485

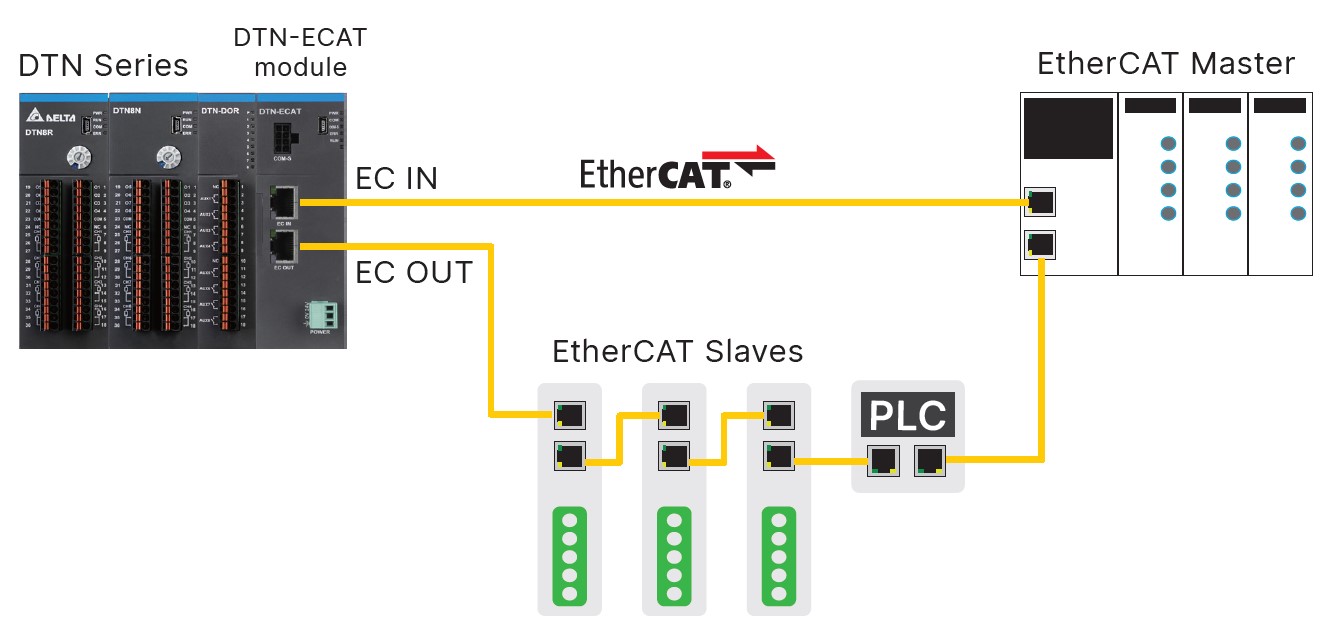

High-speed and real time data transmission through EtherCAT communication

DTN-ECAT supports Central Data Collection function to collect parameters of DTN modules for efficient polling process
