DIASECS Semiconductor Equipment Standard Communication and Control Application Software

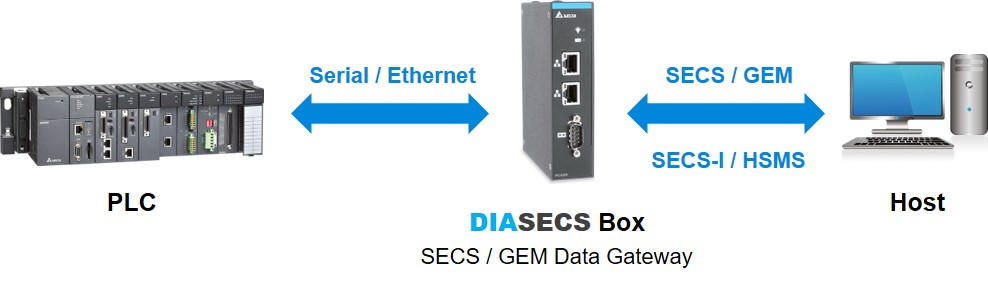

DIASECS is a generic solution for semiconductor equipment communication and control. In addition to providing SECS/GEM protocol standards, users can quickly import SECS/GEM standards into equipment through its configuration tool settings and highly automated seamless integration. By solving problems such as complicated processes and hard-to-integrate data due to a great variety of equipment, the DIASECS helps realize production management intelligence and automation. The SECS/GEM is not only suitable for the semiconductor industry but for a wide range of applications, including printed circuit boards, photovoltaic panels, solar energy, electronic components industries, and more.

Product Introduction

Features & Benefits
SEMI-compliant, highly efficient, and easy to use
  • Fully compliant with the SEMI standards
  • Above 300 transactions per second

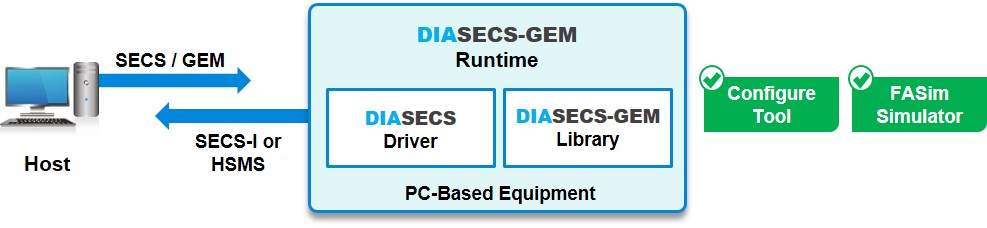

  • Features API interface and assisting tools of system configuration, information simulation, and more. Reduces the burden on development for fast adoption



Highly integrated with a friendly user interface and anomaly tracking
  • Highly integrated with the SECS/GEM standards and supports most of the PLC communication protocols. Features a system configuration tool for out-of-the-box setup
  • The friendly and comprehensive user interface of the configuration tool facilitates fast system setting and shortens the deployment time
  • Provides complete SECS event history to track anomaly causes

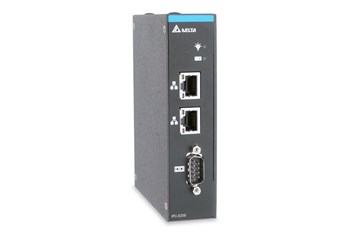

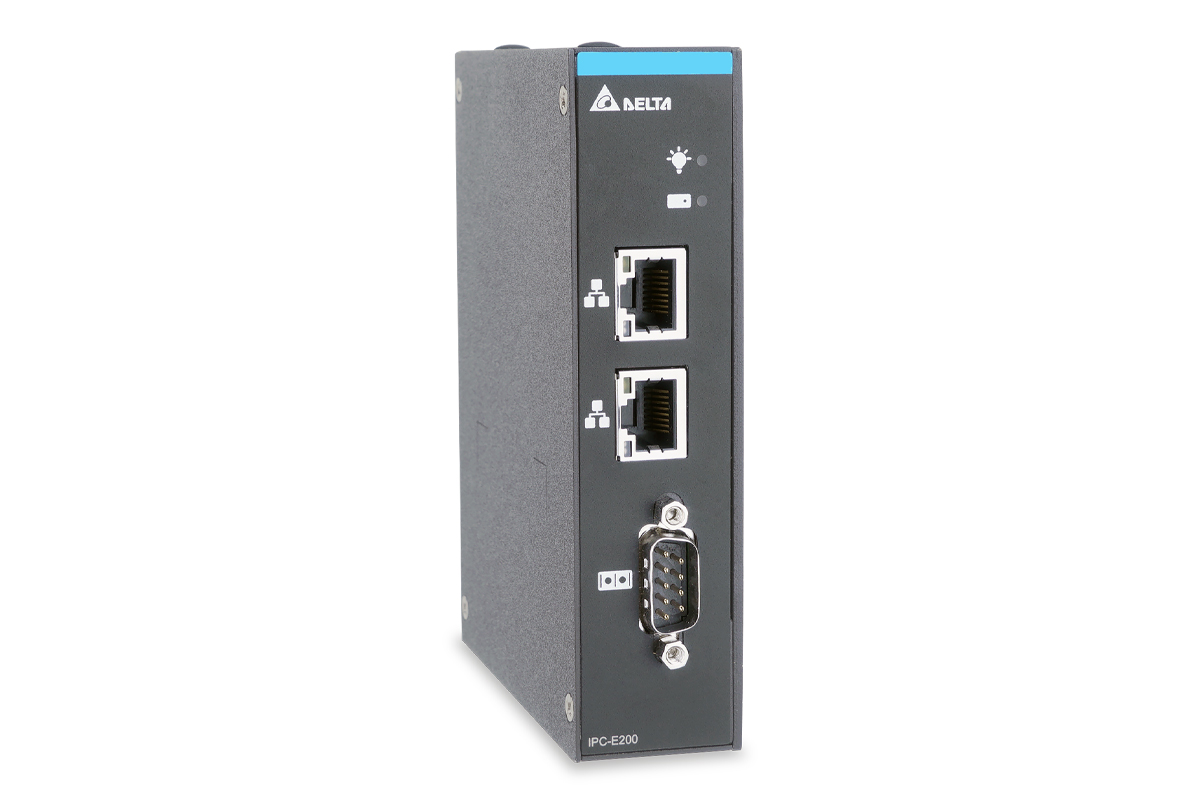

Specifications
Item SPEC
CPU Intel® Celeron N3350
Memory 2 GB DDR3L 1,600 MHz, Maximum support 8 GB
HDD 64 GB mSata SSD
Network Intel® i211AT Gigabit Ethernet Controller x 2
Expansion Full-size Mini PCIe
System I/O RS-232/RS-422/RS-485 x 1, Default is RS-232, which can be set in BIOS
USB 2.0 x 2
Video VGA output x 1
Size (mm) 100 mm (L) x 31 mm (W) x 125 mm (H)
Weight Net Weight: 0.3 kg; Gross Weight: 0.46 kg
Temperature Operating: -20℃ ~ 70℃ (-4℉ ~ 158℉)
Storage: -45℃ ~ 85℃ (-49℉ ~ 185℉)
Operating Humidity 10% ~ 90%, non-condensed state
MTBF MTBF ≧ 69,000h
MTTR ≦ 0.5h
Certified CE, FCC
Vibration 2.0 G, 5 ~ 500 Hz
Power 12 ~ 24 VDC, 17 W
Operation System Windows 10
