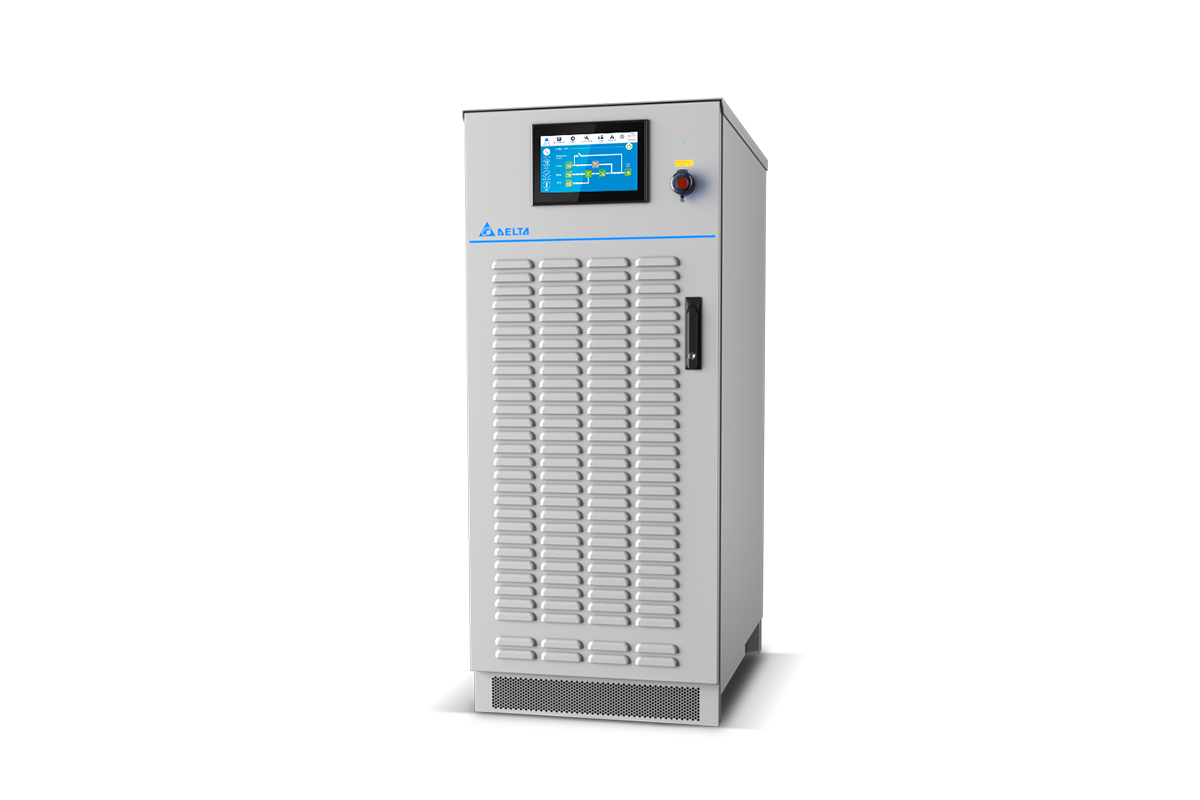

IPT Series 20-200 kVA

Redefining Reliability in Uncertainty

In the age of Industry 4.0, the integration of advanced sensors, controllers, and robotics has transformed manufacturing into a more electro-intensive sector than ever before. Ensuring stable and continuous power is now crucial for business continuity. The IPT series, an industrial transformer-based UPS, employs a Power Factor Correction (PFC) converter, replacing the traditional 6-pulse and 12-pulse rectifier structures. This upgrade enhances both input Total Harmonic Distortion (THDi) and input power factor, helping you save dramatically on frontend investment while providing unrivaled reliability in challenging environments.








Product available regions :
EMEA North America Latin America SEA & OCEA India China Taiwan South Korea Japan
•   • • • • • • •

For region-specific product details and variations in specifications, please download the local leaflet or visit the local website.


Downloads Request a Quote

Product Introduction

Features & Benefits

Unrivaled Resilience

  • Output Zig-zag transformer provides solid load galvanic separation, withstands heavier unbalanced loads, and delivers full kVA output capacity
  • Excellent short-circuit capability from load: 3.3 times the rated current, 35% beyond a conventional transformerless UPS
  • Industrial robust mechanical design provides enclosure protection level up to IP43 (optional), and resists water, liquids, conductive dust, high temperatures and earthquakes
  • Key component redundancy ensures uninterruptible operation


Cost Efficiency

  • Active Power Factor Correction dramatically reduces input current harmonics (THDi < 3%), minimizing distortion to upstream equipment, and optimizes frontend investment from generator, cabling and breaker, eliminating the cost of additional harmonic filters and aiding factory compliance with energy regulations
  • Surpassing input power factor > 0.99 exceeds industrial UPS standards, minimizing energy waste consumption and optimizing system efficiency
  • Maximizes UPS performance and lifespan with self-diagnosis and key component analysis


Simple Management

  • Easy to use: waterproof 10’’ color touchscreen (IP54)
  • Easy to maintain: supports full front access
  • Easy to install: provides both bottom and top (optional) cable entry



Applications

UPS NT Series applications



Specifications
  1. Model
  2. IPT-20K(1), IPT-30K(1), IPT-40K(1), IPT-50K(1), IPT-60K(1),
    IPT-80K(1), IPT-100K(1), IPT-120K, IPT-160K(1), IPT-200K(1)
  4. Power Rating
  5. ⦁ IPT-20K: 20 kVA / 18 kW
    ⦁ IPT-30K: 30 kVA / 27 kW
    ⦁ IPT-40K: 40 kVA / 36 kW
    ⦁ IPT-50K: 50 kVA / 45 kW
    ⦁ IPT-60K: 60 kVA / 54 kW
    ⦁ IPT-80K: 80 kVA / 72 kW
    ⦁ IPT-100K: 100 kVA / 90 kW
    ⦁ IPT-120K: 120 kVA / 108 kW
    ⦁ IPT-160K: 160 kVA / 144 kW
    ⦁ IPT-200K: 200 kVA / 180 kW
  6. Parallel Configuration: Up to 8 units
  8. Input
  9. Nominal Voltage: 380/400/415 Vac, 3P4W+PE/3P3W+PE
  10. Voltage Range: 324-477 Vac (100% load); 286-324 Vac (with derating to 70-100% load)
  11. Frequency Range: 40-70 Hz
  12. Total Harmonic Distortion (THDi): < 3%
  13. Power Factor: > 0.99 (100% load)
  15. Output
  16. Nominal Voltage: 380/400/415 Vac, 3P4W+PE (3P3W+PE optional)
  17. Voltage Regulation: ±1% (static); ±3% (dynamic)
  18. Frequency: 50/60 ± 0.05 Hz
  19. Total Harmonic Distortion (THDv): < 2% (linear load); <5% (non-linear load)
  20. Power Factor: 0.9
  21. Permitted Load Power Factor: leading 0.8 ~ lagging 0.7 (without derating)
  22. Overload Capability: ≤ 110%: 60 mins; 111-125%: 10 mins, 126-150%: 1 min, >150%: 1 sec
  23. Current Crest Ratio: 3:1
  25. Efficiency
  26. Online Mode: Up to 94.5%
  27. Eco Mode: Up to 97.5%
  29. Battery
  30. Battery Type: VRLA/Lithium-ion
  31. Nominal Voltage: 393 Vdc
  32. Quantity: 36-44 pcs
  33. Operational Voltage Limits: 346-638 Vdc
  34. Maximum Charge Current:
    ⦁ IPT-20K: 10A
    ⦁ IPT-30K: 12A
    ⦁ IPT-40K: 15A
    ⦁ IPT-50K: 17A
    ⦁ IPT-60K/80K: 30A
    ⦁ IPT-100K: 38A
    ⦁ IPT-120K: 45A
    ⦁ IPT-160K: 60A
    ⦁ IPT-200K: 75A
  36. Communication Interface
  37. Display: 10-inch color LCD touchscreen
  38. Port: USB port x1, RS-232 x1, Input dry contacts x4, Output dry contact x6, Network port x1, REPO x1, Modbus (RS-485) x1
  39. Remote Emergency Power Off (REPO): Standard
  40. Protocols: SNMP, Modbus RTU, Modbus TCP/IP, HTTP(S), SNTP, SMTP, DHCP
  42. Physical
  43. Dimensions (W x D x H)
    ⦁ IPT-20K-80K: 600 x 830 x 1420 mm
    ⦁ IPT-100K/120K: 800 x 830 x 1570 mm
    ⦁ IPT-160K/200K: 1200 x 830 x 1700 mm
  44. Net Weight
    ⦁ IPT-40K/50K: 404 kg
    ⦁ IPT-100K/120K: 593 kg
  46. Environment
  47. Operating Temperature: 0 to 40°C
  48. Humidity: 0-95% (non-condensing)
  49. Altitude: 0-2,000 m (derating 1%/100m from 1,000-2,000 m)
  50. Storage Temperature: -20 to 70°C
  51. Storage Humidity: 0-95%
  52. Ingress Protection Level: IP20, IP43 (optional)
  54. Conformance
  55. Safety: CE
  56. EMC: IEC 62040-2
  57. Performance: IEC 62040-3
  58. Sustainability: RoHS, REACH
  60. Features
  61. Standard
    ▪️Cold start
    ▪️Battery shunt trip
    ▪️Frequency conversion
    ▪️Power walk-in
  62. Optional
    ▪️Synchronized multiple bus (SMB)
    ▪️Backfeed protection with contactor
    ▪️Software integration with Delta Lithium-ion battery BMS
    ▪️DC battery ground fault detector
  64. (1) Upcoming product

    All specifications are subject to change without prior notice.
