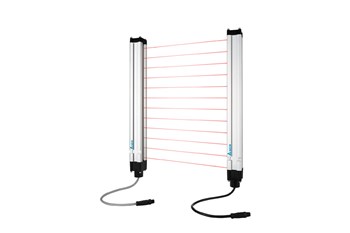

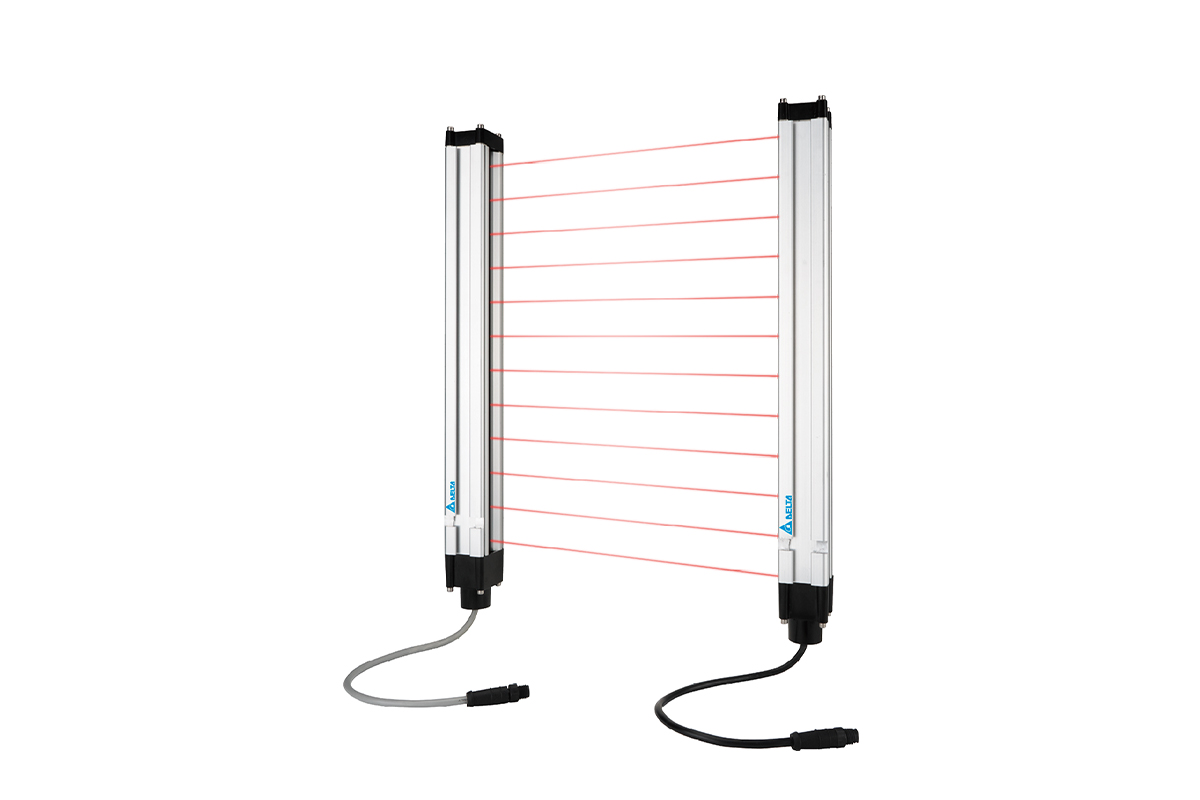

AS-T Outdoor Area Sensor

Delta's Outdoor Area Sensor AS-T model features a ball-impact tested robust design and IP67 protection, suitable for outdoor area protection.

Area Protection (Standard Type)

Detection Capability: detects hand-sized objects (ϕ32.5 mm)
Allows Adjacent Installation: with special designs, the light beams do not interfere with each other
Self-Diagnosis: simultaneously conducts light beam scanning, voltage and channel diagnosis in each scanning cycle
Easy Installation: the sensor bottom (non-wiring side) can be installed close to the surface for flexible installation
Robust Housing: ball-impact tested to avoid damage to the cover
High Compatibility: PIN supports both NPN or PNP output to meet different market needs
Easy Wiring: only contains 4 pins compared to the 6-9 pins of AS-B models
