Panel PC PPC-B / PPC-S

The PPC-B / PPC-S adopts an aluminum case, and is composed of a front panel and a rear panel with heat sink. It is slim and sealed with a fanless design, suitable for applications in the rubber machinery, solar photovoltaic, automotive control and other industrial fields.

Product Introduction

Features & Benefits

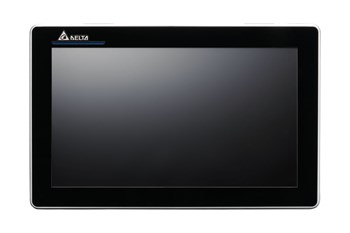

The Delta Industrial Panel PC PPC-B/S is equipped with a capacitive touchscreen (12"/ 15"/ 19"), and delivers high efficiency and high reliability with its fanless design and touchscreen panels.
  • The new generation PPC-B/S adopts a capacitive touchscreen, supports multi-touch, provides higher touch sensitivity, and ensures a clear display when used outdoors in sunlight
  • Supports optional Mini-PCIE and Wi-Fi extension modules to achieve real-time long-distance monitoring, data collection and analysis
  • Provides an SSD hard drive and an anti-vibration rack to cope with field vibrations
  • Supports Ethernet, RS232 / 422 / 485, and USB communications
  • Supports USB3.0 port for quick data access
  • DC 24V power input for different applications


Specifications

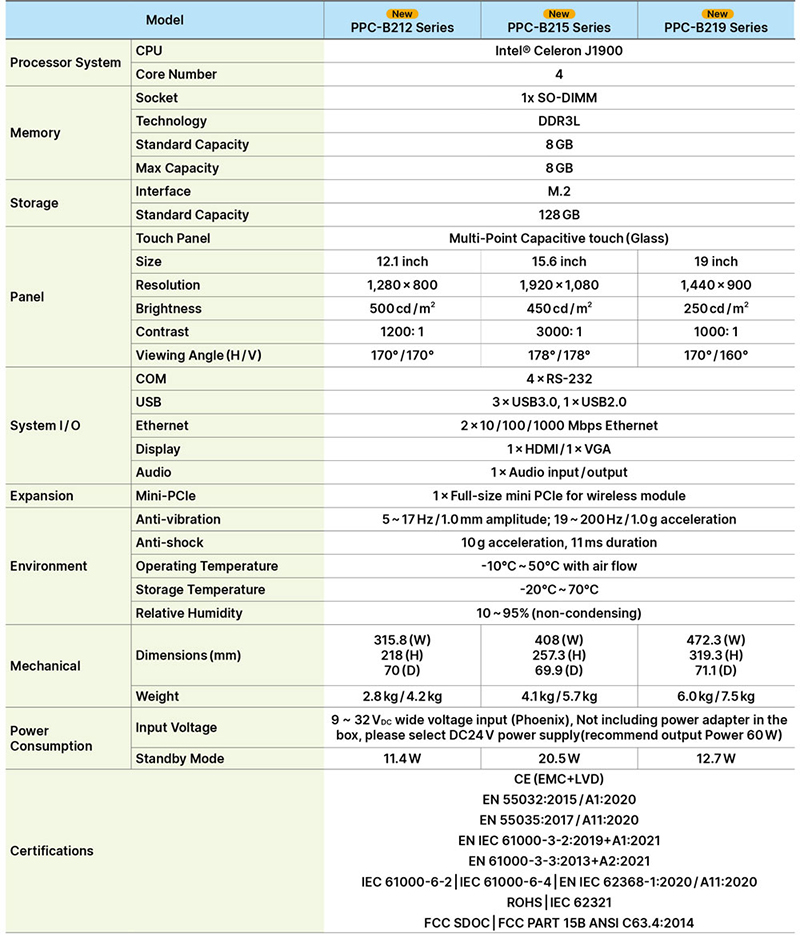

Industrial Panel PC - PPC (12-inch / 15-inch / 19-inch) Intel Celeron J1900

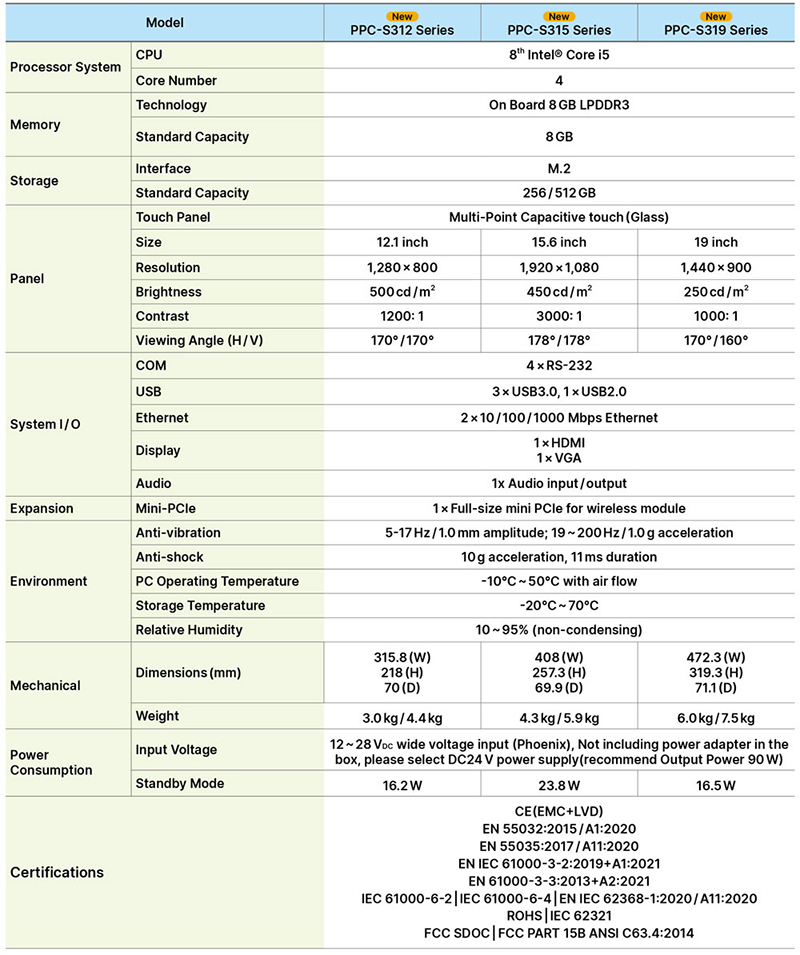

Industrial Panel PC - PPC (12-inch / 15-inch / 19-inch) Intel® Core i5 Series
