Energy Recovery Ventilator Ceiling Mount Type

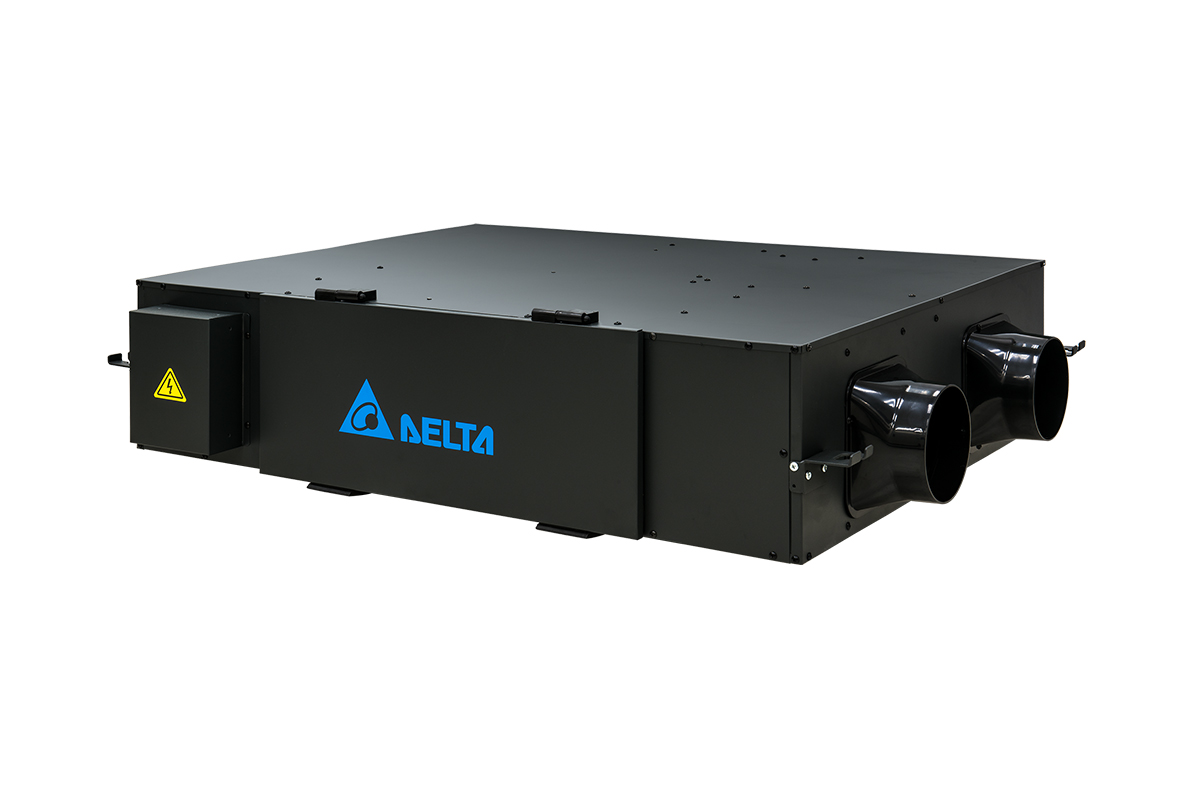

Delta Electronics ENERGY RECOVERY VENTILATOR (ERV) CEILING MOUNT TYPE, with energy-saving brushless DC motor and high-efficiency three-stage filters, can effectively block smogs and PM2.5 from outside that are harmful to humans. Purification efficiency rate is up to 97%. The slim shape design saves more space for ceiling installation. The ERV can also collaborate with the smart control panel which automatically monitors indoor air quality (PM2.5, CO²) and adjusts to the required airflow exchange accordingly. Within the specified duct length, the constant airflow technology makes air supply at the end of duct constant without attenuating. Convenient maintenance cover makes it easy to check up issues. The ceiling mount ERV series have a variety of specifications to select, based on different room sizes.

● VEB150AT3: 220V, suitable room size ≤100 m²
● VEB250AT3: 220V, suitable room size ≤165 m²
● VEB350AT3: 220V, suitable room size ≤230 m²
● VEB500AT: 220V, suitable room size ≤330 m²
● VEB650AT: 220V, suitable room size ≤365 m²
● VEB800AT : 220V, suitable room size ≤400 m²
● VEB1000AT: 220V, suitable room size ≤460 m²

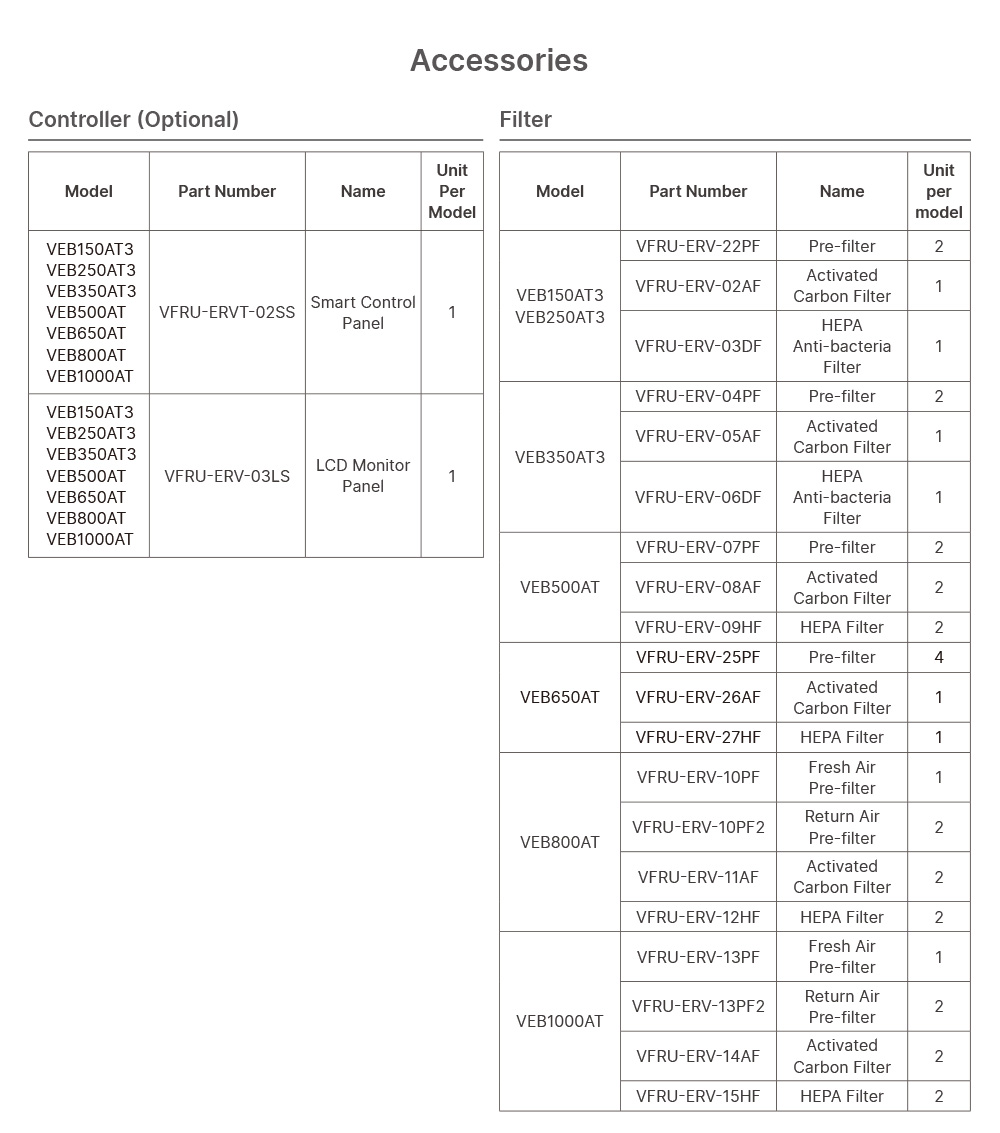

● Smart control panel: VFRU-ERVT-03SS
● LCD control panel: VFRU-ERV-03LS

Product Introduction

Product Introduction
Contact Us

Product Introduction

Features & Benefits

● Energy-saving Brushless DC Motor
● High-Efficiency Three-stage Filters
● Silm Shape Design
● Constant Airflow Technology (Applicable Models: VEB150AT3 / VEB250AT3 / VEB350AT3)
● Positive Pressure Design
● Multiple Safety Protection
● Automatic Monitoring of Indoor Air Quality (PM2.5, CO₂)
● Automatic By-pass (Applicable Model: VEB350AT3)
● Convenient Maintenance Cover (Applicable Models VEB150AT3 / VEB250AT3 / VEB350AT3)
● Three-year Limited Warranty (specified in the product warranty details)

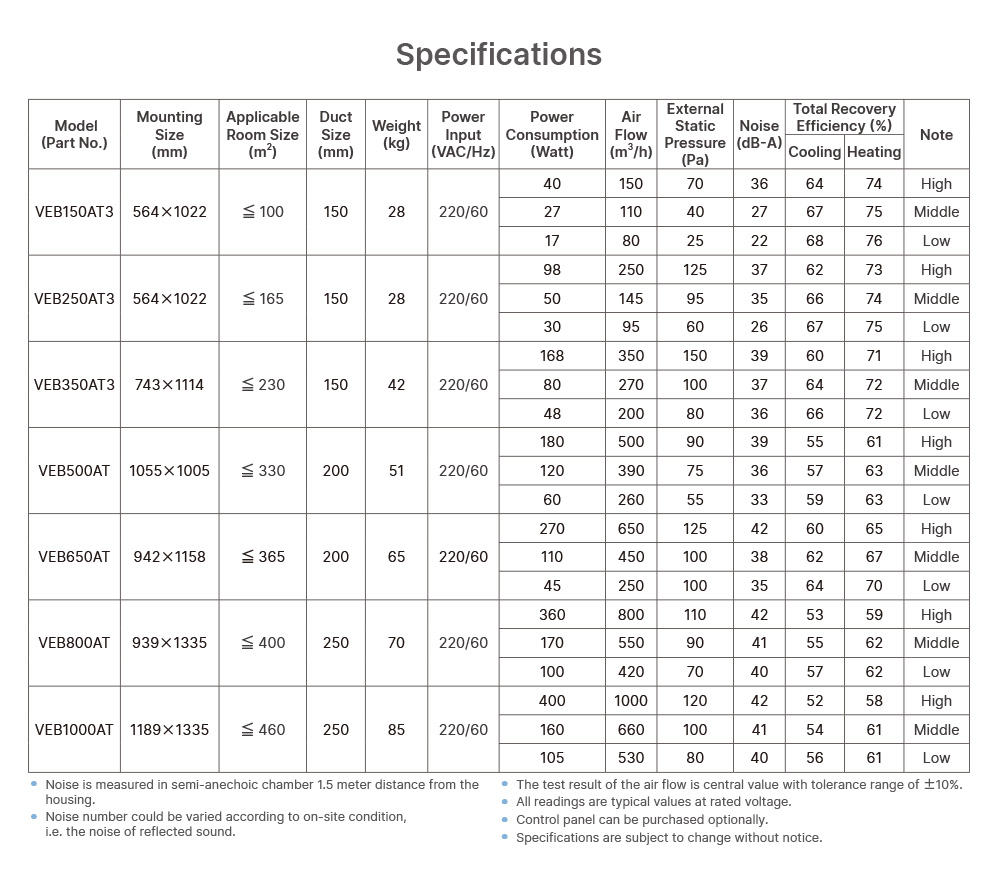

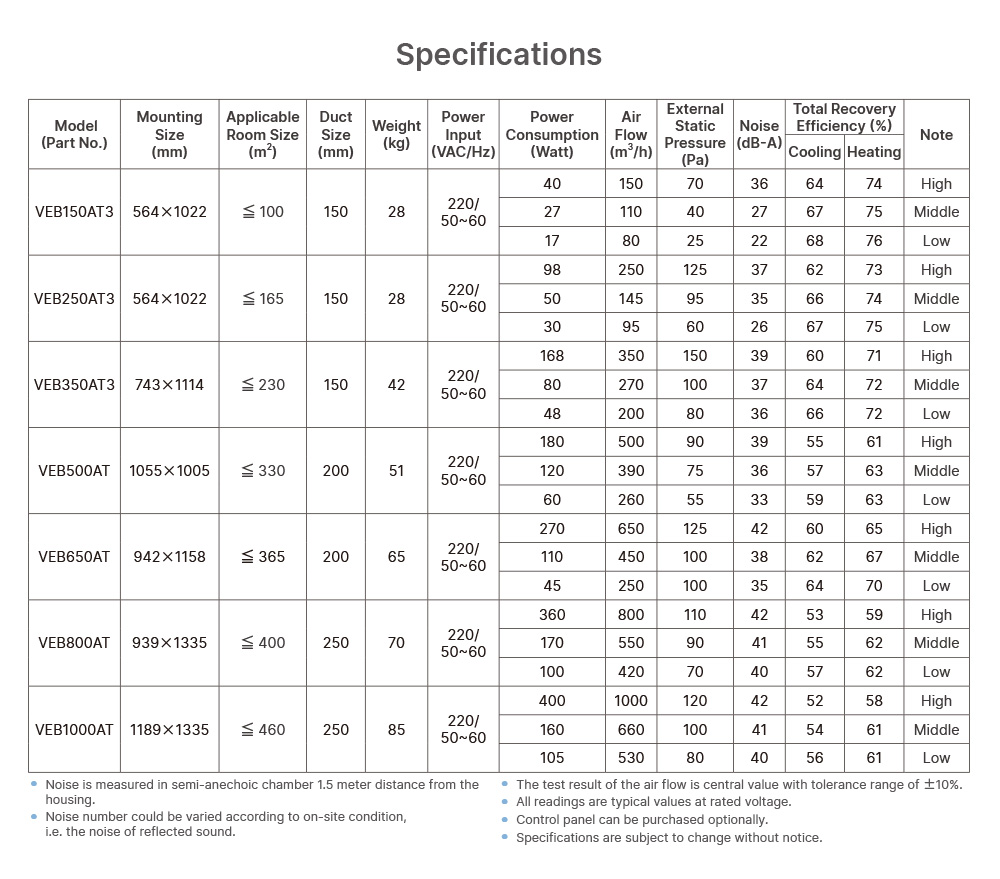

Specifications

Energy Recovery Ventilator Ceiling Mount Type
for Whole-house Fresh Air

Delta energy recovery ventilator (ERV) intakes the outdoor fresh air, filters and purifies the air efficiently before delivering air into the indoor space. Besides that, the system can exhaust the indoor stale air to the outdoor environment at the same time, achieving the whole house ventilation. Users can obtain high-quality fresh air, even when the whole room is enclosed and airtight.

Energy Recovery Ventilator Ceiling Mount Type for Whole-house Fresh Air

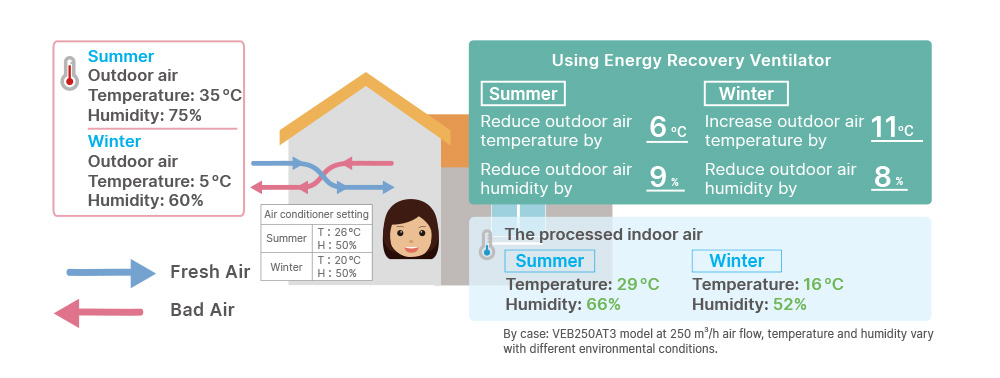

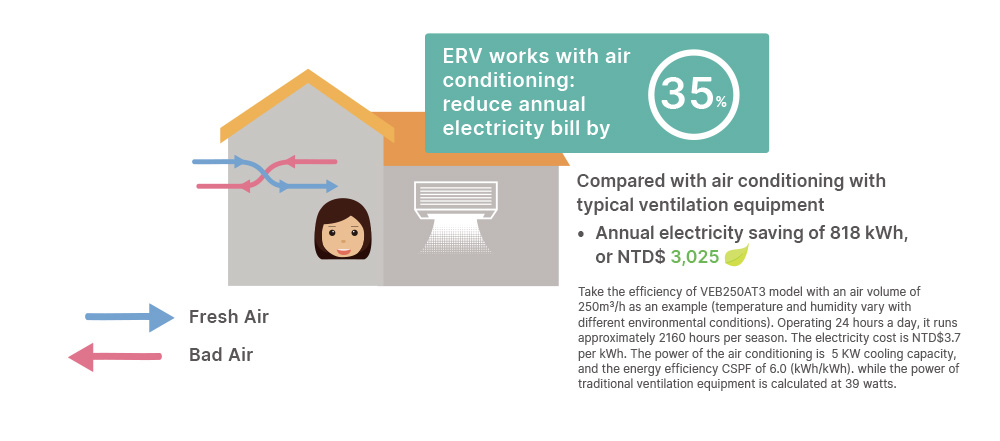

Energy Savings with 24 hours Non-stop Operation

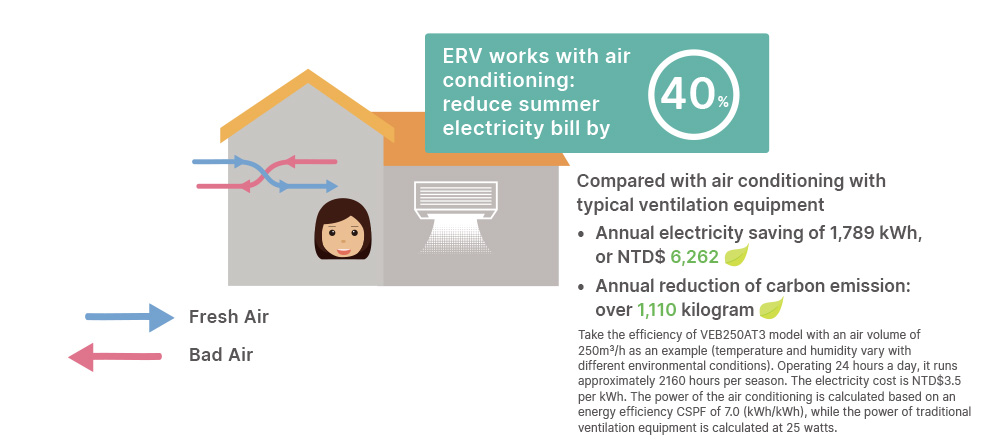

ERV can exchange heat & moisture of the indoor and outdoor air to reduce the loading of air conditioning, achieving comfy living environment and more energy savings.

High Efficiency Brushless DC Motor

Adopting brushless DC motor enormously decreases power consumption and maintains a longer life, compared with AC motor. Energy can be saved up to 60% - all day operation without wasting energy.

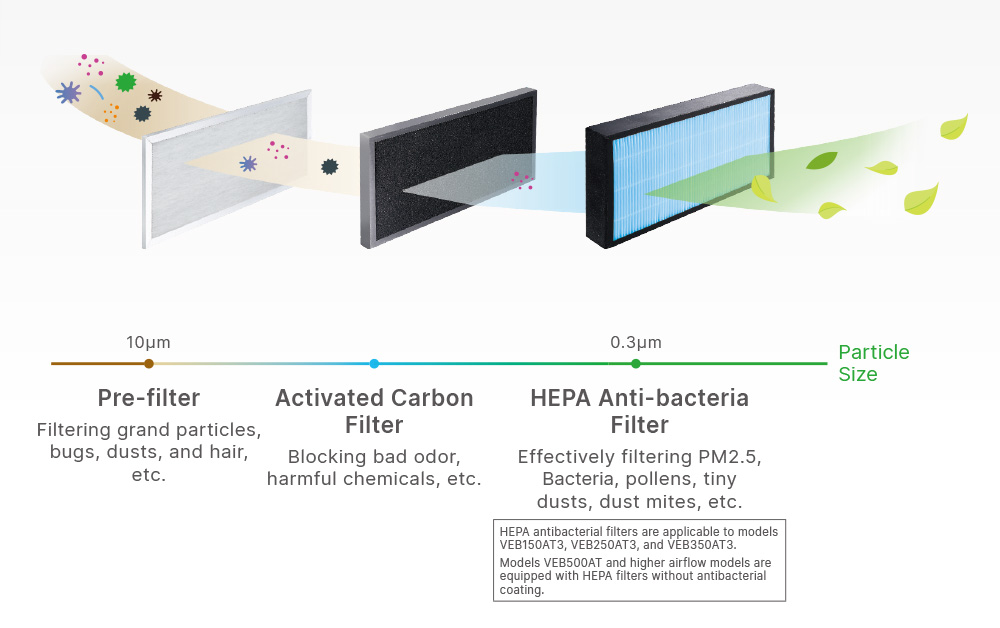

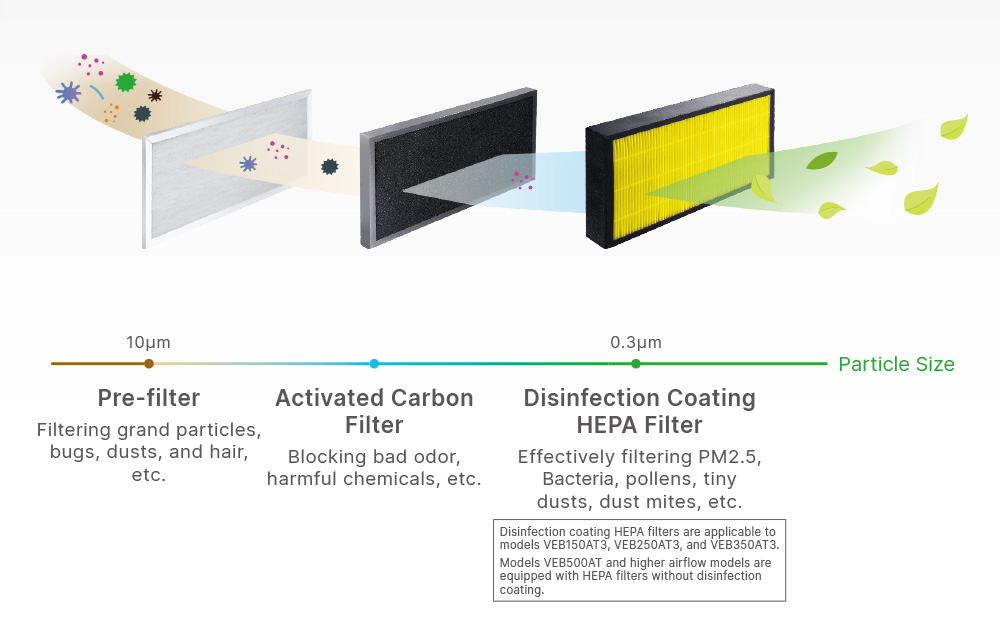

Three-stage High-efficiency Filters
for Triple Effect & Protection

PM2.5 filtration with efficiency over 97%.

Positive Pressure Design -
Exhaust Indoor Polluted Air

The design can enable indoor positive-pressure environment and squeeze indoor polluted air to the outdoor, preventing outdoor unfiltered polluted air from entering indoor space.

Positive Pressure Design - Exhaust Indoor Polluted Air

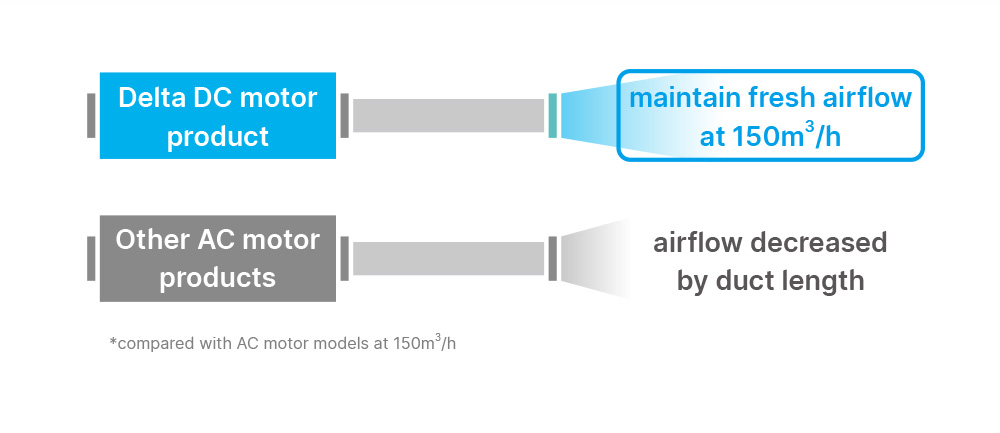

Constant Airflow Technology -
Whole House Surrounded by Clean Air

Even through the filters and accumulated dusts, constant airflow technology can be provided in the air outlet within our designed duct length.

Applicable models: VEB150AT3 / VEB250AT3 / VEB350AT3

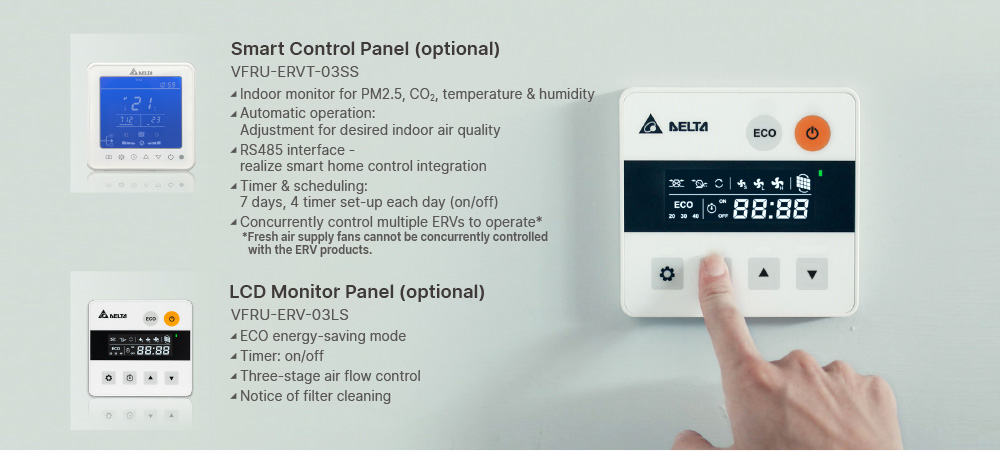

Selection of Control Panels - Easy to Monitor

Large screen LCD monitor - easy to read the functions & status
No-brainer buttons to switch modes, seamless waterproof design, simple chic outlook -
perfectly blend in the interior style.

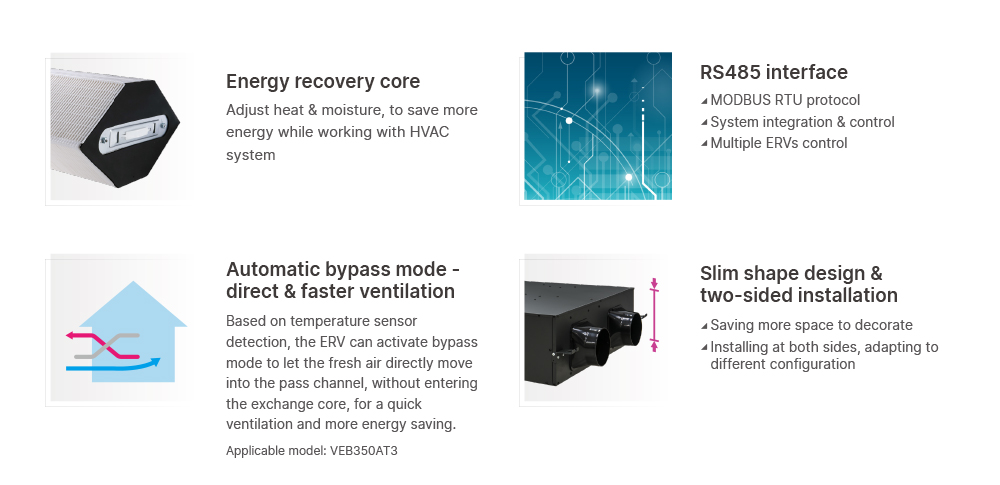

Energy recovery core, RS485 interface, Automatic bypass mode - direct & faster ventilation, Slim shape design & two-sided installation
