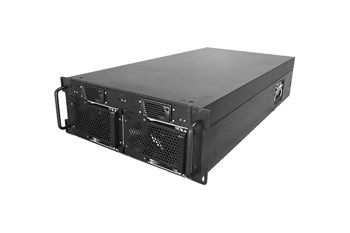

Liquid to Liquid CDU

Delta liquid to liquid coolant distribution unit distributes coolant through the cold plate loop, to remove heat load from IT components in rack.

The CDU product comes with a liquid-to-liquid plate type of heat exchanger to exchange the heat from the secondary liquid side to the primary liquid coolant, namely the heat is transported from IT components at secondary side to facility chiller at primary side.

Product Introduction

Features & Benefits
  • ASHRAE W4 warm water cooling without the need for chillers
  • Easy setup for a liquid cooling solution
  • Provides 60-200 kW of cooling capacity
  • Redundant pump design with a 2 + 1 pump arrangement, featuring two active pumps and one redundant pump
  • Equipped with a leakage alarm and protection system
  • Designed for rack mounting
  • Offers multiple control mechanisms, including fixed secondary supply flow rate, fixed secondary supply pressure, and secondary supply temperature settings
