S Type

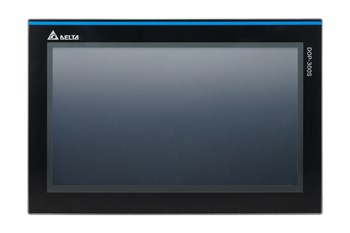

The Standard HMI is designed with basic cloud services and seamless connection, establishing a comprehensive industrial IoT solution. The fully laminated touchscreen panel and 170° ultra-wide viewing angle enhance the user experience.

Product Introduction

Features & Benefits
  • Wireless networking design: Built-in antenna, supports wireless modules
  • High-performance CPU: Dual-core processor
  • Multiple communication protocols: MQTT, OPC UA, Modbus, EtherNet/IP
  • Industrial internet of things (IIoT): Provides Cloud Platform DIACloud
  • User-friendly design: IPS design, fully laminated panel, wide screen and narrow bezel design
  • Safety certification: CE/UL


Applications
  • Data collection and monitoring remotely via cloud: Air Compressors, Water Pumps
  • Medical, Pharmaceutical, Food & Beverages




Specifications
   DOP-3S07S3E2  DOP-3S10S3E2
  Disp;ay Type 7" TFT LCD (24 bits) 10.1" TFT LCD (24 bits)
  Resolution
  (Pixels)		  1,024 x 600
  Back Light LED Back Light (half-life > 20,000 hours at 25°C or 77°F)
  Display Area 154.21 x 85.92 mm  222.72 x 125.28 mm
  Brightness 400 cd/㎡ (Typ.)
  CPU ARM Cortex-A7 Dual Core 1.2GHz
  Flash ROM 512 Mbytes
  RAM 512 Mbytes
  Touch Panel Four-wire resistor
  Viewing Angle 85/85/85/85
  Internet
  Interface		 2 Port, 10/100 Mbps Auto detection (with built-in isolated circuits)
  USB Host 1 Port USB Ver 2.0 Type A  5 V / 1000 mA
1 Port USB Ver 2.0 Type C  5 V / 500 mA
  USB Slave N/A
  SD Micro SD
  Serial
  Communication
  Port		 COM1: RS-232 (supports flow control)
COM2: RS-232 / RS-485
COM3: RS-422 / RS-485
  Certification CE / UL
  Operation
  Temperature		  0 ~ 50°C
  Storage
  Temperature		  -20 ~ 60°C
  Mounting
  Dimensions
  (W x H, mm) 		 186.8 x 126.8  255 x 170
