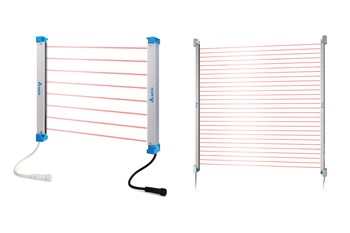

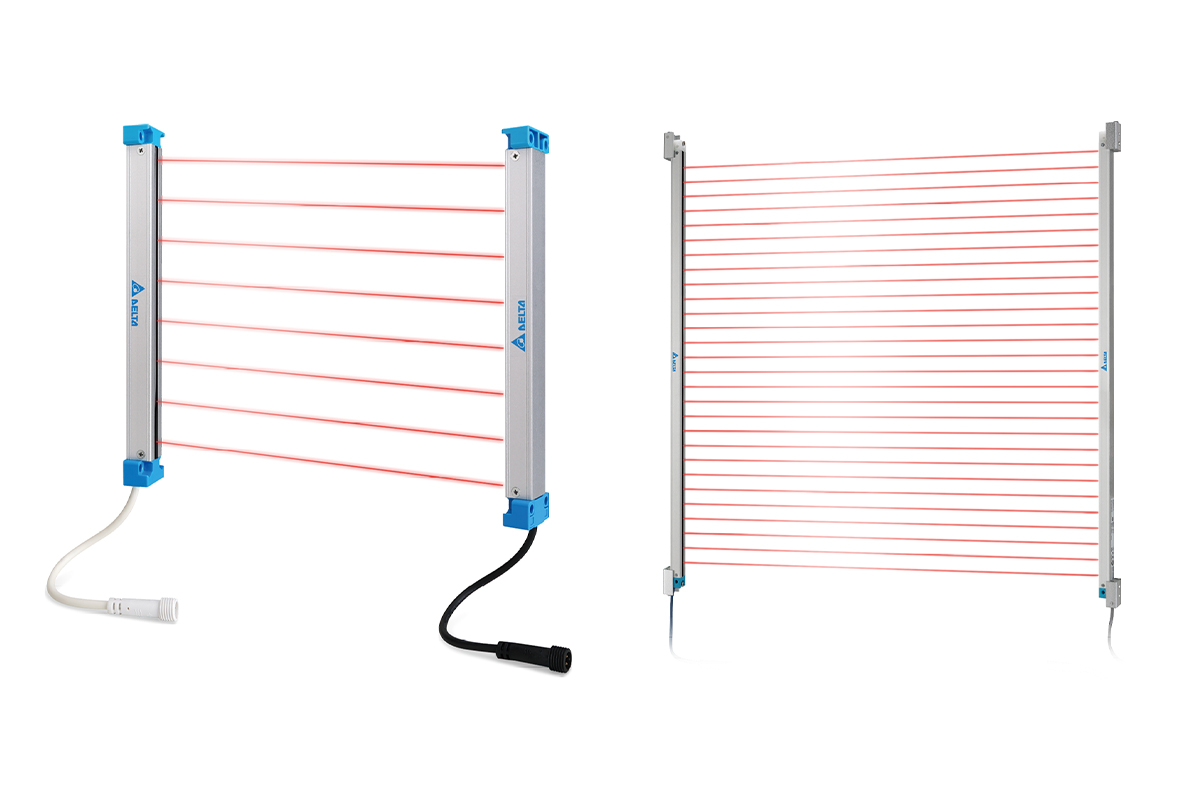

AS-E Compact Area Sensors

Delta‘s Compact Area Sensor AS-E model features high adaptability for flexible installation, making it suitable for the environment with limited spaces. The smallest model of the AS-E Series is only half the size of the AS-B model, and easy to install with no need of a bracket.

Delta provides two types of the AS-E model :

  • Area Protection (Standard Type)
  • Object Measurement (Communication Type)

Product Introduction

Features & Benefits
Area Protection (Standard Type)
  • Compact Design: 25 x 15 mm with ϕ30mm (hand-sized) detection capability
  • Allows Adjacent Installation: with special designs, the light beams do not interfere with each other
  • Self-Diagnosis: simultaneously conducts light beam scanning, voltage and channel diagnosis in each scanning cycle
  • High Compatibility: PIN supports both NPN or PNP output to meet different market needs
  • Easy Wiring: only contains 4 pins compared to the 6-9 pins of AS-B models
  • Flexible Installation: supports front installation with no additional brackets required



Object Measurement (Communication Type)
  • Ultra Slim: 15 × 17 mm, only half the size of the AS-B model
  • Full Functionalities: includes AS-E Standard Type features and supports RS-485 connection
  • Flexibility: active upload function can be controlled via input PIN
  • Isochronous Data Upload: proactively and automatically uploads channel status, combination data or channel energy value to the control system for immediate reaction
  • Easy-to-Align: alignment indicators at the bottom show alignment status for quick installation
  • Low Energy Alert: indicates smudge, misalignment, or replacement needed
  • Flexible Installation: supports front/side installation without additional brackets, and includes a bracket for rear installation
