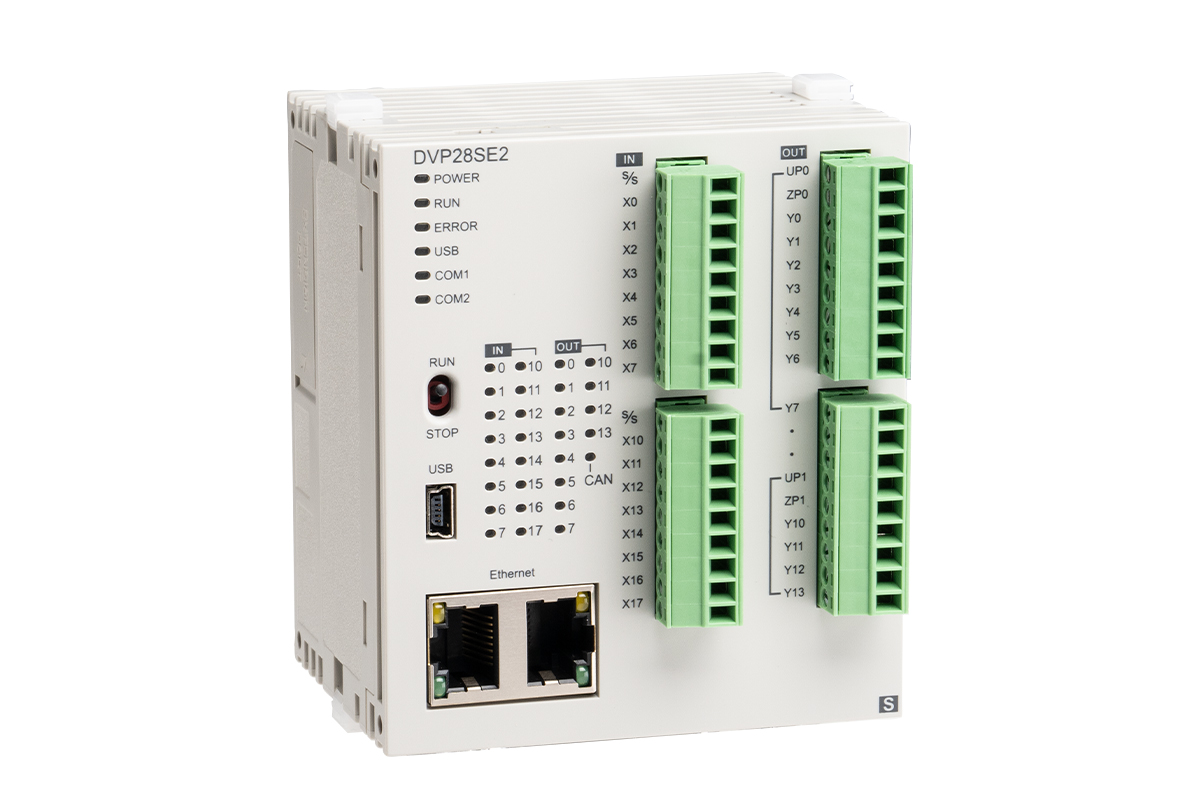

DVP-SE2 Series

The second generation DVP-SE2 Series with built-in dual Ethernet ports (switch) facilitates easy network building. The SE2 Series not only enables daisy chain topology but also greatly reduces wiring time.

Compared with the first generation, the SE2 Series accelerates program execution speed and continuously strengthens the market share of small PLCs, especially in Europe and America where the DVP Slim Series is widely adopted.

Product Introduction

Features & Benefits
  • High efficiency: A 32-bit high-speed processor supports an overall PLC program execution speed approximately one time as fast as the DVP-SE host. Built-in 3 high speed counters offer a Max. frequency of 100 kHz each; four-axis (8 points) provide a high speed position output at 100 kHz
  • Max. I/O: Supports more inputs and outputs (up to 512 digital I/Os) and 8 right-side extension modules and 8 left-side high-speed extension modules
  • Larger program capacity: 64k steps and memory (general registers: 12k; memory for storing parameters: 8k)
  • Supports IL, LD, SFC
  • Standard USB 2.0 interface: Saves time downloading the program, monitoring the program, and configuring the hardware
  • Built-in CAN communication port: For Delta 8-axis servo and 8 motor drives. CANopen DS301 communication mode (up to 64 slaves)
  • Built-in 10/100 M Ethernet communication interface: Includes built-in switch function or dual IP mode for dual ports, allowing for daisy chain topology configuration without the need for additional switches
  • Built-in Ethernet interface support, Webpage, Modbus TCP Client/Server, Ethernet/IP Adapter, TCP/UDP Socket
Applications
Remote device monitoring, production line monitoring, building automation, printing machine, container filler (recipe application)


Specifications
   SE2
Software ISPSoft V3.20 or later version
Execution Speed 0.35 us (LD) ; 1.29 us (MOV)
Program Capacity 64k steps
Built-in 24 VDC powered CPU module, 2 x Ethernet port (switch), 2 x RS-485 ports, 1 x USB & CAN port, 1 x Micro SD interface, supporting 28 I/O (16DI+12DO), removable terminal blocks
Max. I/O Points as Total 512
(includes SE2 built-in 16DI+12DO; right side: Max. 8 extension modules; left side: Max. 8 extension modules)
Built-in I/O Points 28: 16DI + 12DO
Model DVP28SE211T (NPN output)
DVP28SE211S (PNP output)

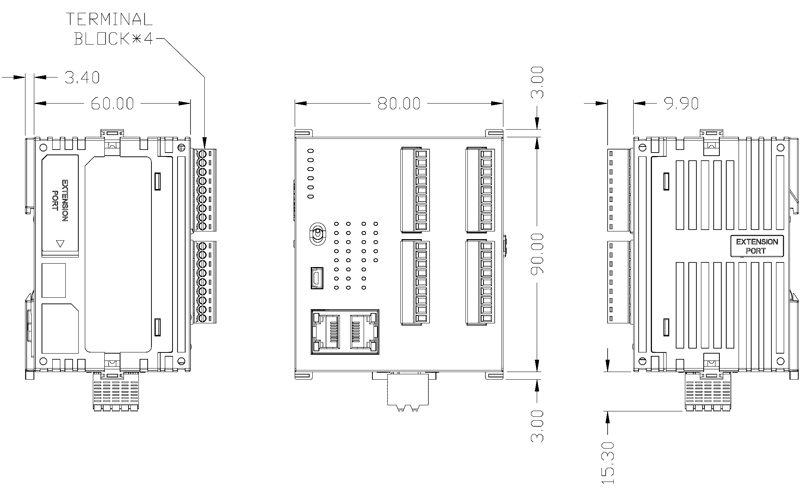

Dimensions

※ You can search for more files in the download center

DVP28SE2

(Unit: mm)




Supported Devices PDF
Click icon to download		 2D-CAD
Click icon to download		 3D-CAD
Click icon to download
DVP28SE211T/S
