DVP-EX3 Series

To fulfill the market demand for versatile, value-added programmable logic controllers, Delta’s third generation DVP PLCs EX3 series employs the AS series PLC’s 32-bit high-speed processor with a user-friendly programming interface, built-in analog I/O, and multiple communication ports. Compared with the previous generation, the EX3 series upgrades execution performance, expands program capacity, and enhances interoperability.


Catalog FAQs

Product Introduction

Features & Benefits
  • Upgraded execution speed: 25 ns for basic instructions
  • Flexible programming: supports new software DIADesigner and AS series instructions with a larger program capacity
  • Max I/O: 256 points
  • Enhanced interoperability: 2 built-in Ethernet ports (RJ45), 1 CAN port, analog I/O, and supports EtherNet/IP
Applications
High-speed cutting machines, bar feeders, food packaging, and textile machines
Specifications
   EX3
Software ISPSoft, DIADesigner
Execution Speed 25 ns (AS core)
Program Capacity 64K steps
Built-in 100 ~ 240 VAC powered CPU module, Ethernet ports x 2 (can act as a switch), RS-485 ports x 2, USB port x 1, CAN port x 1, Micro SD interface x 1, 22 / 28 / 36 I/O, removable terminal blocks
Protocols and Max. Axes - CANOpen DS301 (controls up to 64 slaves)
- Delta mode: controls 8 Delta servos and 8 Delta motor drives
Max. I/O Points 256 (Max. 8 special extension modules)
Built-in I/O Points 22: 12DI + 8DO + 2AI
28: 4diff. DI + 8DI + 4diff. DO + 8DO + 2AI + 2AO
36: 16DI + 16DO + 2AI + 2AO
Model DVP22EX300T (NPN output)
DVP22EX300R (Relay output)
DVP28EX300MT (NPN output)
DVP36EX300T (NPN output)
DVP36EX300R (Relay output)

Dimensions

※ You can search for more files in the download center

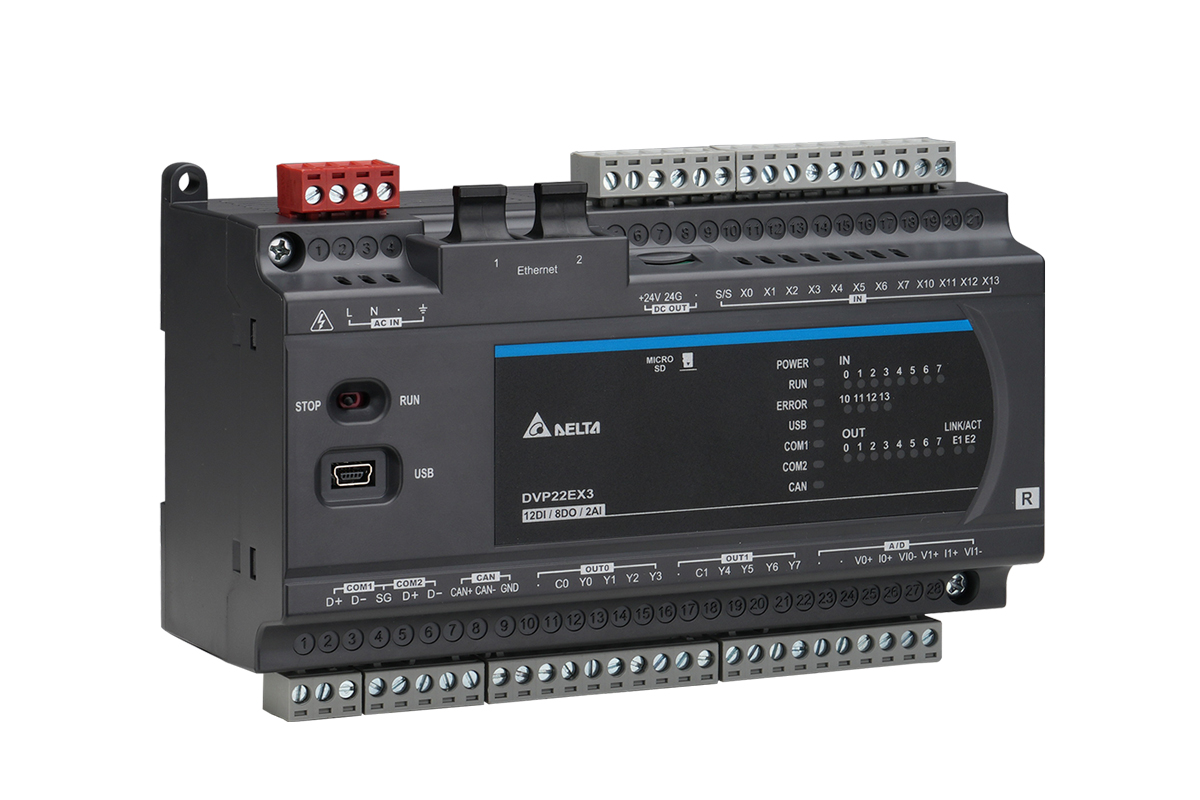

DVP22EX300R

(Unit: mm)




Supported Devices PDF
Click icon to download		 2D-CAD
Click icon to download		 3D-CAD
Click icon to download
DVP22EX300R
DVP22EX300T
DVP36EX300R
DVP36EX300T
DVP28EX300MT
