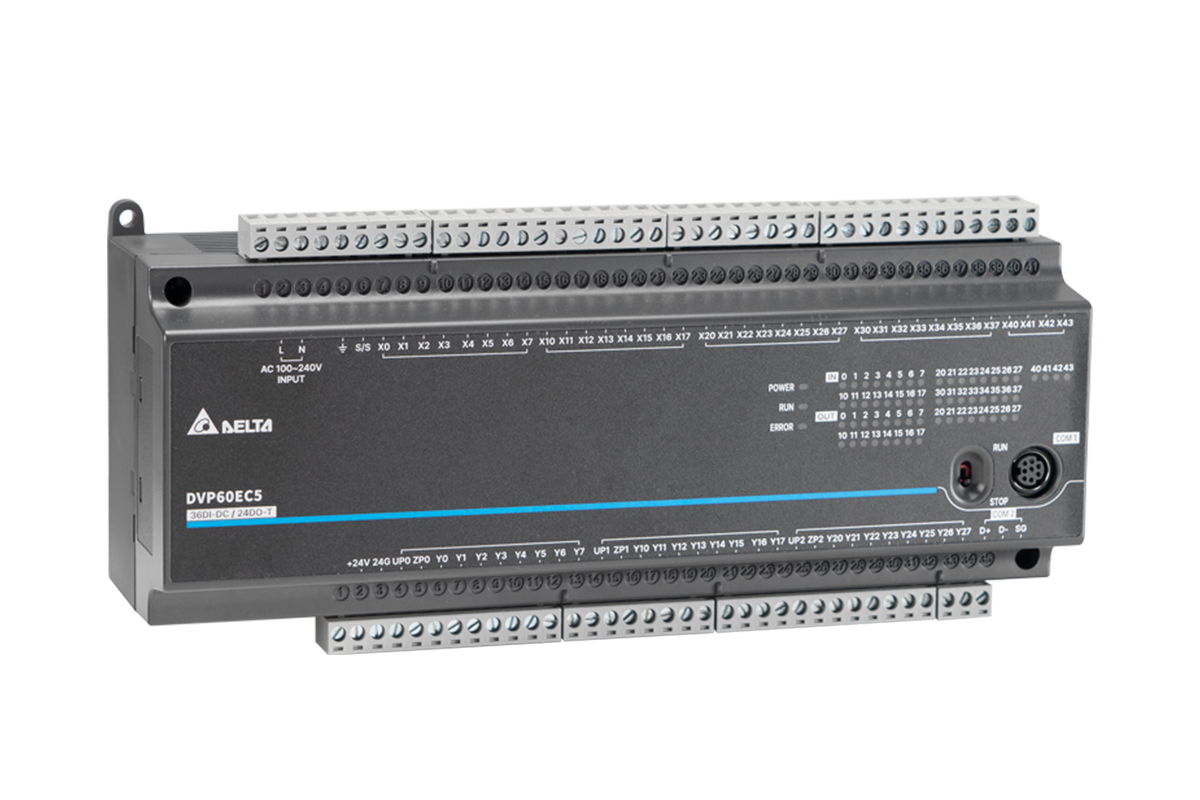

DVP-EC5 Series

The DVP-EC5 Series fulfills the market demand for advanced PLCs with a user-friendly programming interface, faster execution of high-speed pulse input/output, and expanded program capacity. The upgrade from the previous EC-3 aligns with demands for a versatile programmable logic controller.

Product Introduction

Features & Benefits
  • Enhanced program capacity supports up to 16k steps
  • Supports high-speed pulse output of 4 points at 50 kHz
  • Supports high-speed pulse input of 2 points at 50 kHz
  • Supports external interrupt up to 8 points
Applications
Packing / machinery, landscape fountains, building automation
Specifications
Item
 DVP-EC3-8K
 DVP-EC5
Programming Language IL, LD, SFC IL, LD, SFC
Program Capacity 8k steps 16k steps
Execution Speed LD: 0.98 µs
MOV: 3 µs		 LD: 0.98 µs
MOV: 3 µs
High-Speed Pulse Input 2 x 10 kHz
4 points external interrupts		 2 x 50 kHz
8 points external interrupts
High-Speed Pulse Output 2 x 10 kHz 4 x 50 kHz
Serial Ports RS232 x1 (M/S)
RS485x1 (M/S)		 RS232 x1 (M/S)
RS485 x1 (M/S)
Latched Flash ROM Flash ROM
Extension Modules No No
RTC EC3 stops keeping track of the time when the power is off EC5 stops keeping track of the time when the power is off

Dimension

※ You can search for more files in the download center

48 I/O Basic Type PLC
DVP48EC500T

Unit: mm




Supported Devices PDF
Click icon to download		 2D-CAD
Click icon to download		 3D-CAD
Click icon to download
DVP32EC500T
DVP48EC500T
DVP60EC500T
