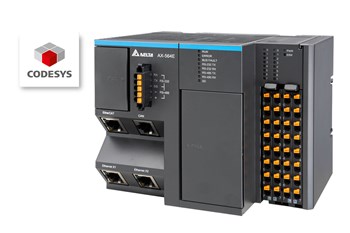

AX-5 Series Standard CPU

AX-5 Series uses a 4-core processor to balance motion control and communication performance, and supports industrial network communication protocols such as EtherNet/IP, PROFINET, EtherCAT, as well as third-party Wi-Fi and Bluetooth. The series makes it easy to integrate different production line information into production management systems. The system utilizes a high-speed 100 Mbps EtherCAT bus and Hot Connect to ensure high-precision synchronization control and real-time I/O updates. The independent I/O power supply simplifies wiring and delivers highly stable system operation and flexible I/O module expansion. The AX-5 Series is suitable for industries such as industrial robotics, woodworking, printing, packaging, electrical assembly and more.


Product Introduction

Features & Benefits
Supports EtherCAT and DIADesigner-AX programming software and provides high-speed I/O bus and IoT applications

  • Uses a 4-core processor to balance motion control and communication performance
  • Offers EtherCAT motion control with various axes options
  • The shortest execution time for basic instructions is 1 ns; Min. synchronization time can reach 32 axes / 1 ms
  • Supports the new generation of AX-5 Series ultra-thin power supplies, digital I/O, analog I/O, and temperature expansion modules
  • Adopts a 100 Mbps EtherCAT high-speed I/O system bus
  • Built-in communication protocols include EtherCAT, CANopen, PROFINET, Modbus, EtherNet/IP, OPCUA server, MQTT, FTP, and more
  • Provides USB Type-A interface for connecting third-party Wi-Fi or Bluetooth adapters
  • Complies with IEC 61131-3 standards with SoftPLC and SoftMotion development environment




Applications
Industrial robotics, woodworking, printing, packaging, electrical assembly, and more





Specifications
   AX-5
Software DIADesigner-AX
Execution time 1 ns (LD) ; 7 ns (LREAL)
Program capacity 64 MB
Built-in communication port Ethernet x 2 (independent IP), CANopen x 1, EtherCAT x 1,
RS-485 x 1, RS-232 x 1, USB-Type A x 1, USB-Type Cx1,
Micro SD  (SDXC, 64 GB max/UHS-I)
Max. number of slves 4,096
Built-in IO 12DI (80KHz) + 4 DO (80KHz)
Max. number of pulse out axes  2
Max. number of axes for linear interpolation axis control  6
Max. number of axes for arc interpolation axis control  2
Max. number of axes for helical interpolation axis control  3
Model AX-516EB0MB1T/P (Max. 32 axes, synchronous time: 16 axes@1ms)
AX-532EB0MB1T/P (Max. 64 axes, synchronous time: : 32 axes@1ms)
AX-564EB0MB1T/P (Max. 128 axes, synchronous time: : 64 axes@2ms)
AX-564ELB0MB1T/P (Max. 80 axes, synchronous time: : 8 axes@0.5ms)

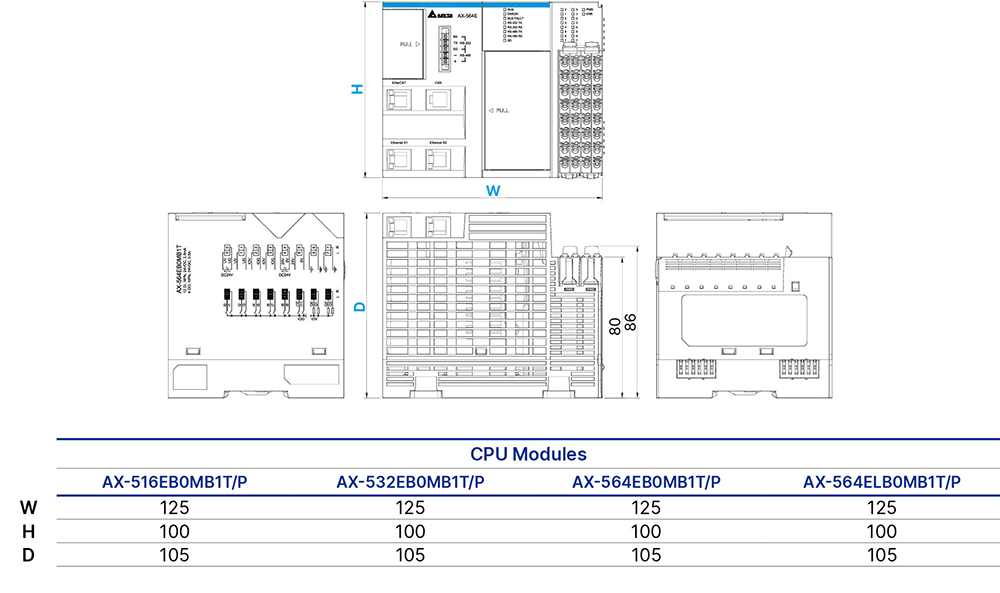

Dimensions

※  You can search for more files in the download center

CPU Module
(Unit：mm)



Supported Devices PDF
Click icon to download		 2D-CAD
Click icon to download		 3D-CAD
Click icon to download
AX-516EB0MB1T/P
AX-532EB0MB1T/P
AX-564EB0MB1T/P
AX-564ELB0MB1T/P
