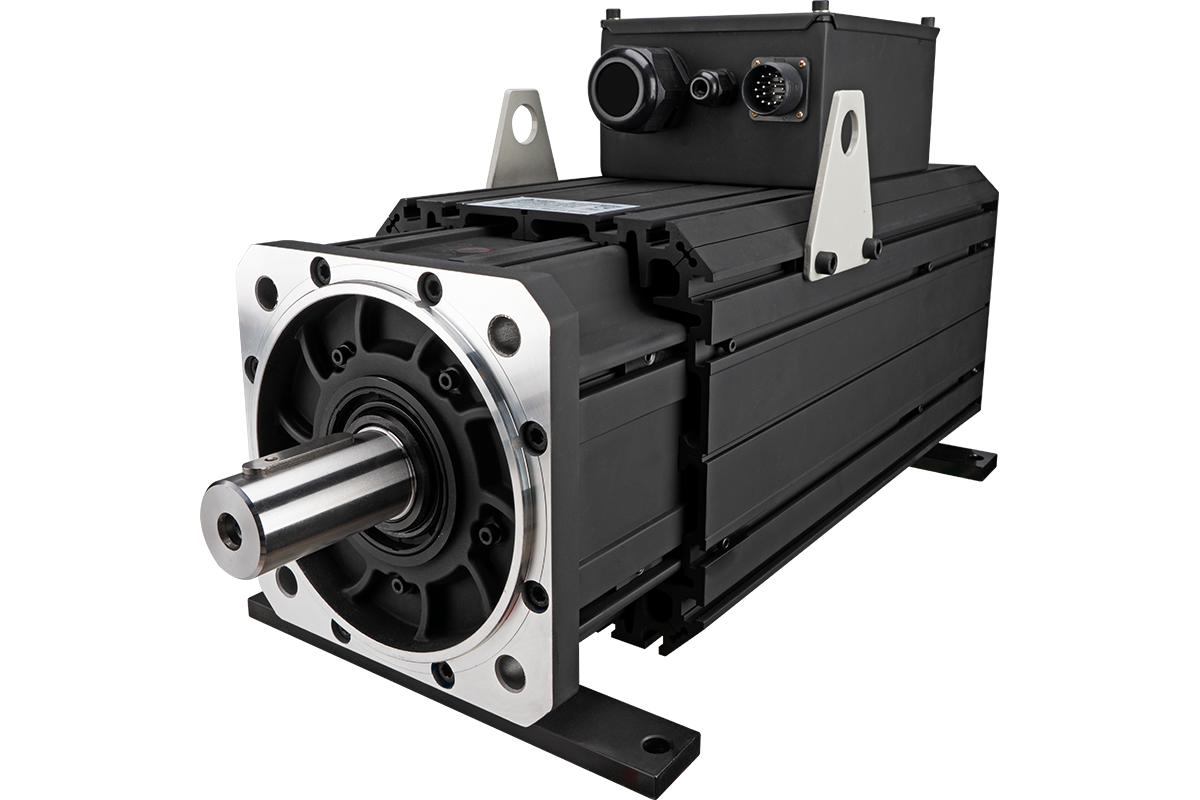

Servo Motor for Hydraulic Systems with Rotary Encoder
MSJ-E Series

Interior magnet rotor design and high overload torque, specifically for hydraulic servo systems.

The MSJ-E Series Motor is specifically designed for the low-rotating-speed thermoplastic melting process by the gearbox for hydraulic power systems. It was developed based on criteria from injection molding machines, various tonnages, and rotating speed ranges. For optimal performance, the required pressure and flow of each weight are calculated respectively.

Product Introduction

Features & Benefits
Energy-saving
IE4 classified and compliant with IEC60034-30-2

Low Current
Saves 15 ~ 18% current compared with others when integrated with Delta's drives and control system

Low Rising Temperature
For high-speed control, it was designed  at 80°C to protect the motor from overload and improve reliability

Excellent Overload Capacity
Momentary overload reaches 250%, which is better than common standards (180 ~ 200%)

Reliable High-Speed Operation
Unique motor and drive integration achieves low torque attenuation rate to optimize high-speed performanc
Applications
Injection molding machines, blow molding machines, bottle blowing machines, extruders, bending machines, and more
