MVF20 Series

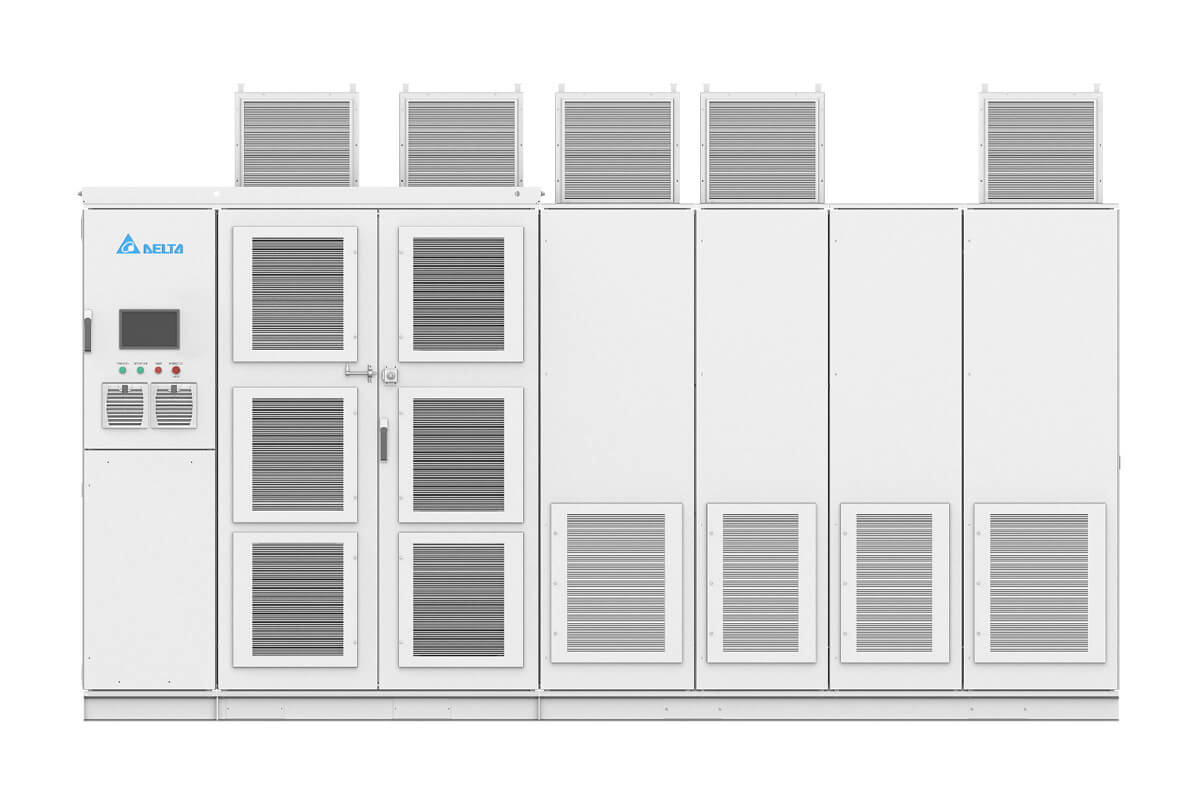

MVF20 Series Medium Voltage Drives

Delta’s MVF20 series is a highly integrated and high-performing variable-frequency device for general-purpose motor control applications. It provides excellent variable-speed control for relevant system fans, pumps, and compressors. The MVF20 series cabinet features an in-parallel cabinet design and is an MVD with high power density and a high space utilization rate. The drive is easy to use in terms of controlling pumps, fans, compressors, conveyors and many other variable and constant torque applications.

Product Introduction

Key Benefits
  • High-efficiency power conversion for energy savings and lower carbon emissions
  • Modular multilevel design for easy maintenance and reduced motor stress
  • Advanced control and diagnostics for reliable operation in harsh industrial environments
Feature Highlights
MVF Series Medium Voltage Drives_feature highlight_High Efficiency

High Efficiency


  • System efficiency is higher than 98.5%(excluding phase-shifting transformer), saving energy and reducing carbon emission
MVF Series Medium Voltage Drives_feature highlight_Small Footprint

Small Footprint


  • The compact structure can reduce the requirements for site space
MVF Series Medium Voltage Drives_feature highlight_Lower Harmonics

Lower Harmonics


  • Multi-pulse phase-shifting rectification technology reduces grid current harmonic content effectively and meets IEEE 519-1992
  • Multilevel voltage output and starting current control reduce impacts on the motor
MVF Series Medium Voltage Drives_feature highlight_Optimal Reliability

Optimal Reliability


  • The system provides a diagnosis function to show the position and type of failure and warn the user about the fault occurrence
  • Advanced control functions enhance adaptability against unstable grids



Application
發電與供熱
Thermal Power Plant
鋼鐵與冶金
Metallurgy
水泥
Cement
石油化工
Petrochemicals
礦業
Mining


High-Performance and Reliable Drives

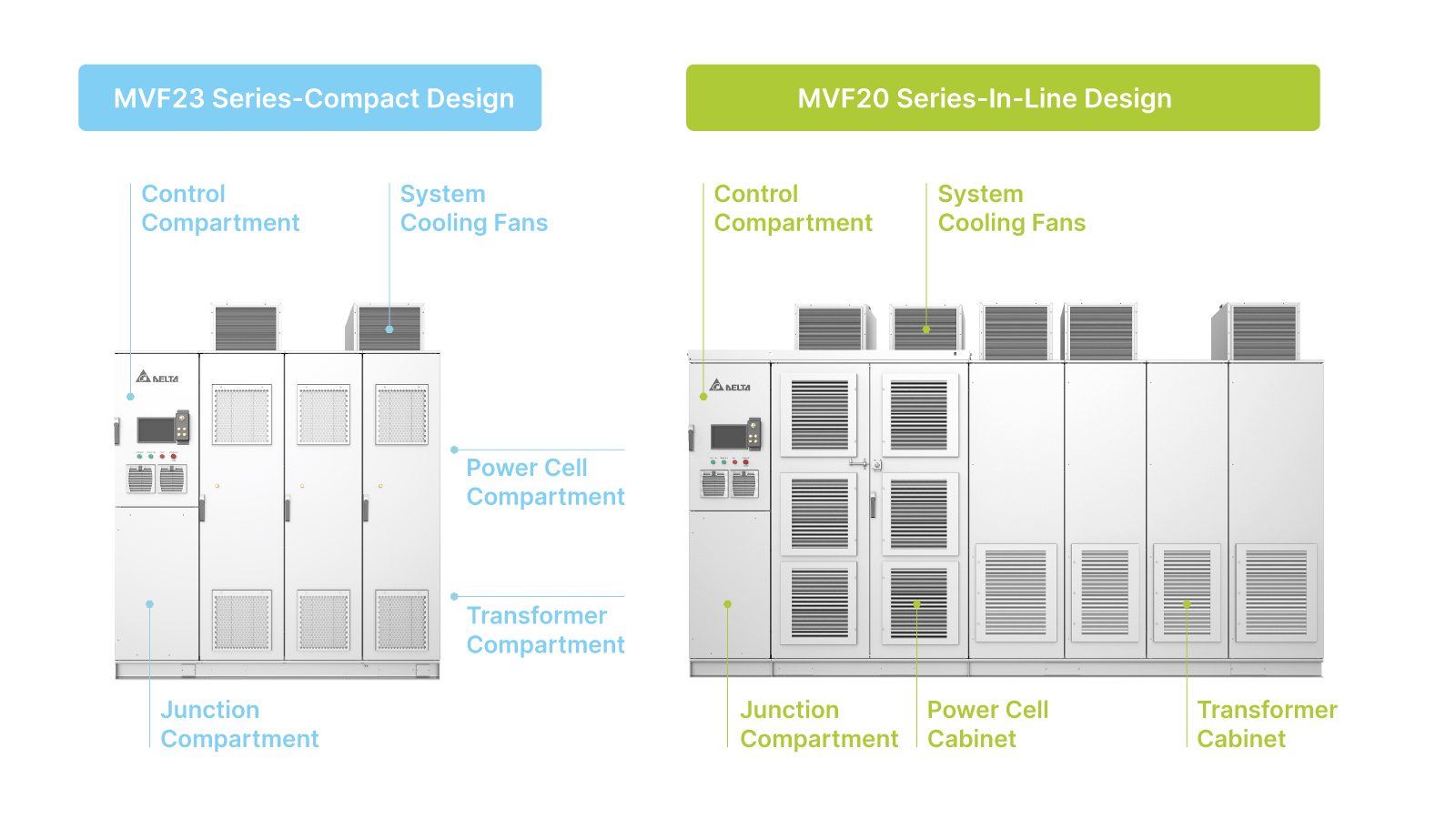

MVF-Series-Medium-Voltage-Drives_compact and in-line design
Control Compartment

  • Touch screen display for system monitoring and parameter setting
  • High-performance DSP for reliable control
  • Analog and digital signal I/Os for different types of applications
  • UPS for backup the control system in emergencies

Power Cell Cabinet / Compartment

  • Modular power cell allows easy replacement and maintenance
  • Optical fiber between low voltage and high voltage sections
  • Multi-level inverter technology supplies nearly sinusoidal motor voltages and reduces impacts on the motor

System Cooling Fans

  • Effective air-cooling design
  • Easy maintenance

Transformer Cabinet / Compartment

  • The transformer secondary windings provide isolated phase-shifting power for improved input current waveforms and lower grid current harmonic distortion

Junction Compartment

  • Capable for top / bottom cable entry
