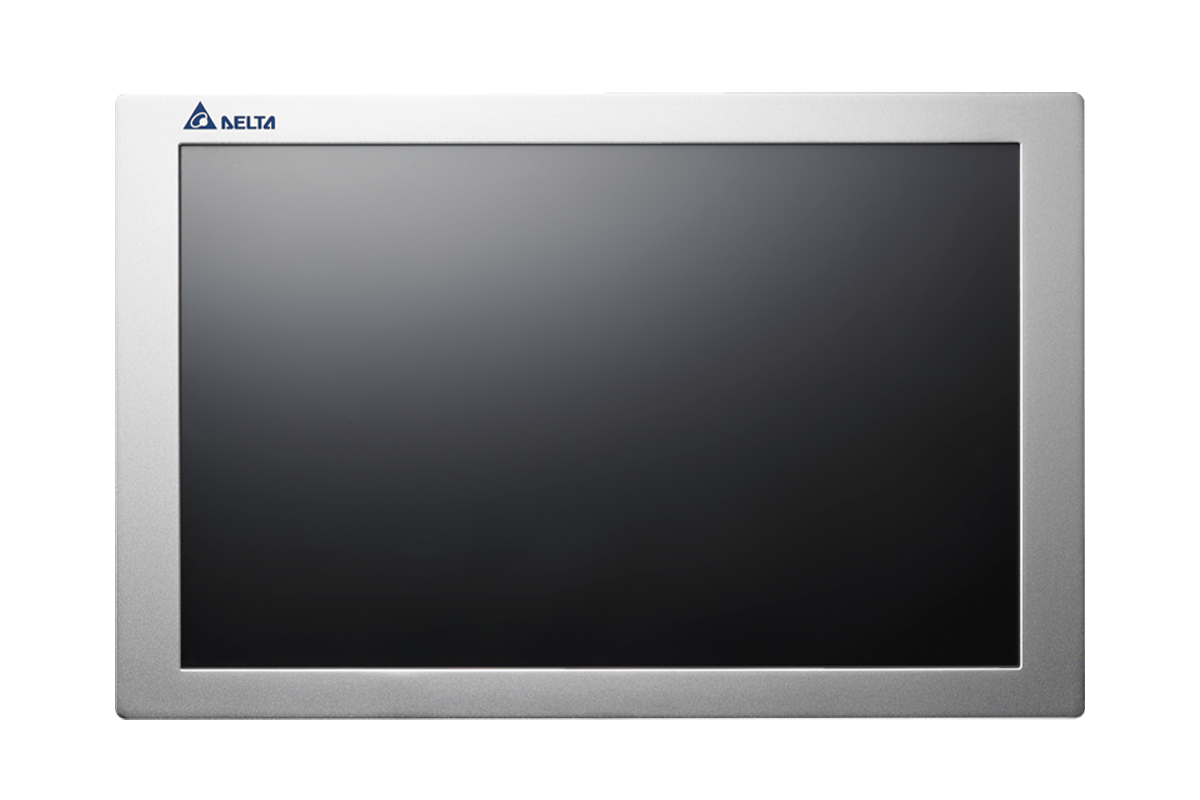

Panel PC DIAVH

The PPC DIAVH adopts an aluminum case, and is composed of a front panel and a rear panel with heat sink. It is slim and sealed with a fanless design, suitable for applications in the rubber machinery, solar photovoltaic, automotive control and other industrial fields.

Product Introduction

Features & Benefits

The Delta Industrial Panel PC (PPC) DIAVH is slim and built with an aluminum case, which is composed of an IP65 front panel (10"/12"/15"/17"/19"/21") and a rear panel with heat sink. It is sealed with a fanless design. The PPC DIAVH is suitable for applications in the rubber machinery, solar photovoltaic, automotive control and other industrial fields.

  • Supports optional Mini-PCIE and Wi-Fi extension modules to achieve real-time long-distance monitoring, data collection and analysis
  • Provides an SSD hard drive and an anti-vibration rack to cope with field vibrations
  • Supports Ethernet, RS232 / 422 / 485, and USB communications
  • Supports USB3.0 port for quick data access
  • AC 100 to 240V power input for different regions

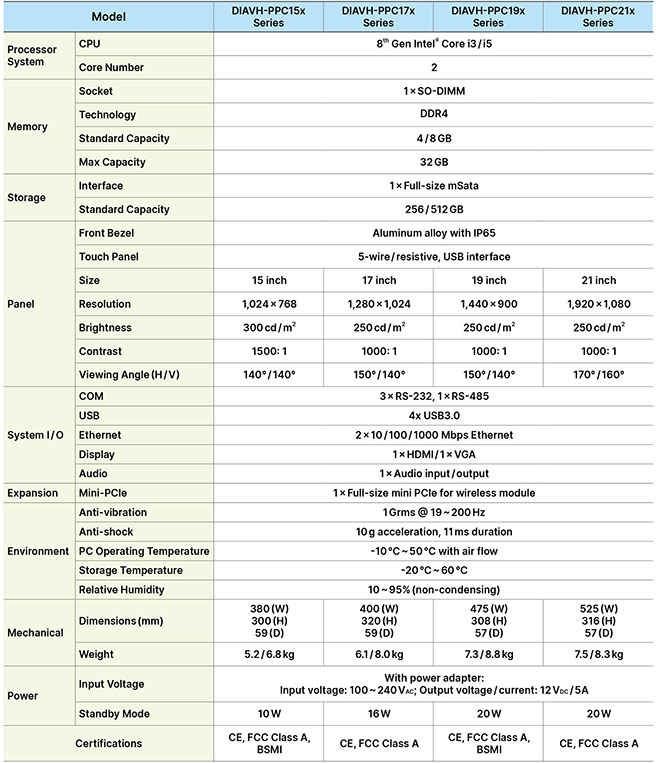

Specifications
Industrial Panel PC - PPC (10-inch / 12-inch / 15-inch / 17-inch / 19-inch / 21-inch) Intel Celeron J1900





Industrial Panel PC - PPC (15-inch / 17-inch / 19-inch / 21-inch) Intel Core i3 / i5 Series
