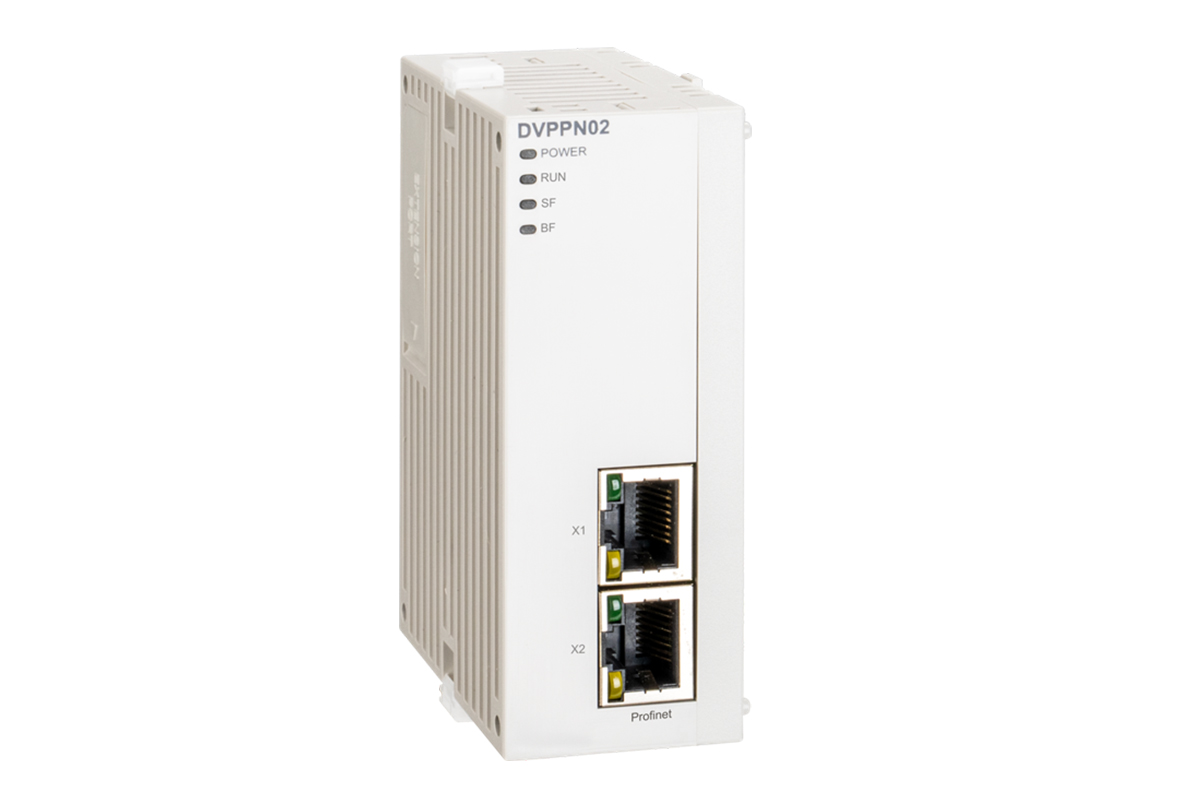

DVPPN02-SL

DVPPN02-SL supports DVP slim PLCs, which are:
DVP-SA2, DVP-SX2,
DVP12SE, DVP-SE2,
DVP-SV3, DVP-SX3

Supported topologies are linear, star and tree

Product Introduction

Features & Benefits
  • Supports PROFINET devices
  • Supports up to 16 data exchanges, and the starting D register for each data exchange can be freely set
  • Data length for each piece: 1, 2, 4, 8, 16, 32 or 64 ; data type: Word
  • For data lengths, input, output, or input plus output can be selected
  • Maximum data lengths for input and output supported are both 128 Words (IOPS and IOCS excluded)



Specifications
Model DVPPN02-SL
Power Supply Voltage 24 VDC (-15%~20%)
Provided by the CPU module via the bus
Power Consumption 1.5W
Isolation Voltage 500 VAC
Weight About 103g
Communication Protocol PROFINET RT
EtherNet Interface 100 Mbps / RJ45 x 2
Transmission Cable Category 5e or later
Max. Transmission Distance 100 meters
Topology Type Linear and star
Max. Number of PN Slots 16
Min. Cycle Time for Data Exchange 10 ms
