MOOV^on 13 V 400 W / 600 W DC-DC Converter

Compact, rugged, and easy to design into 13 V system vehicles.

CE mark and UL recognized
IP69K water / dust proof
Compliant to salt spray standard EN 60068-2-11
Wide input voltage range
Output short circuit protection
Input reverse polarity protection
Operating temperature range: -35 °C to +85 °C

Product Introduction
Contact Us

Product Introduction

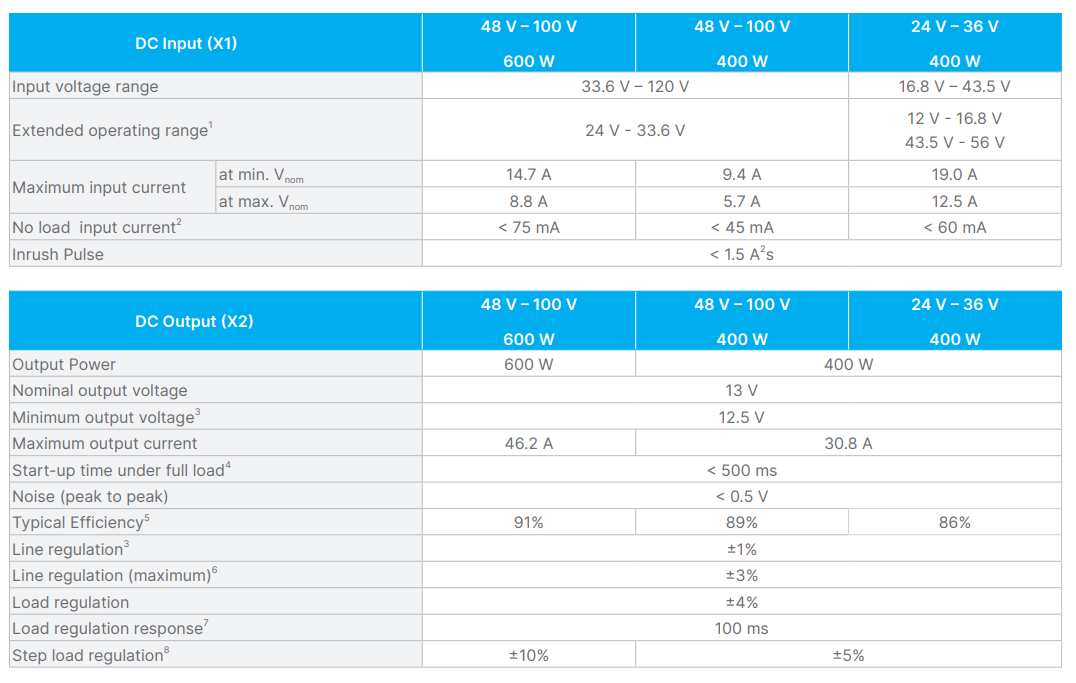

Specifications

1 For a maximum of 5 minutes at nominal output power
2 At nominal battery voltage
3 At input voltage range. When operating in the extended lower input range the minimum output voltage is 12V
4 Measured with a resistive load
5 For 50% to 100% load
6 At extended input voltage range
7 Slew rate 1 A/μs
8 Load step: 10% -> 90%, 90% -> 10%

Download

Delta_DCDC 13V 400W 600W_Datasheet_EN_V1.4_05.08.2024
