MOOV^air 10 Wireless Charging System

Charge Wisely, Charge Wirelessly

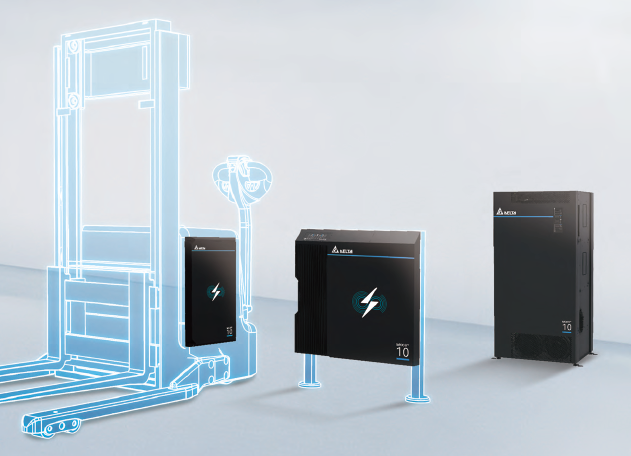

Delta’s MOOV^air 10 kW Wireless Charging System is designed for forklifts, AGVs, ground support equipment (GSE), and other high-power industrial e-vehicles to charge wirelessly. By installing its charging units on the vehicles and the desired charging locations respectively, the wireless charging system eliminates the manual plug-and-pull charging process and makes unmanned operation possible. Wireless charging means no maintenance downtime to replace worn connectors. Most importantly, the wireless charging system’s power efficiency rivals, if not outperforms, wired charging at up to 95% from wall plug to battery.

Product Introduction

Product Introduction
Contact Us

Product Introduction

Technology

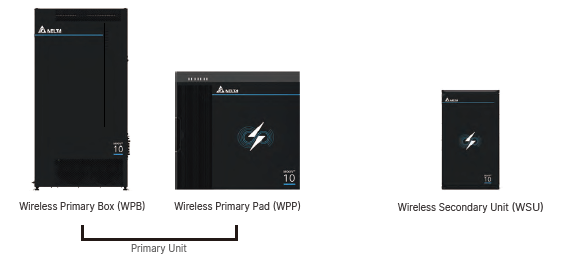

Delta has advanced the industrial wireless charging technology through a third-party licensing agreement, leveraging own extensive expertise in power supplies to introduce the cutting-edge MOOVair Wireless Charging System Series. It consists of a primary unit for AC connection and a secondary unit for connection to the vehicle battery. Delta MOOV^air 10 Wireless Charging System initiates charging automatically and boasts wall plug to battery efficiency above 92%. The built-in CANopen and Ethernet connectivity enables integration with smart warehouse or factory management systems for improved visibility of the charging data. The Delta MOOV^air 10 Wireless Charging System is the must-have to smartify your industrial vehicles in the Industry 4.0 era.

Features & Benefits

Versatile Charging

One primary unit can charge multiple vehicles with different battery voltages
Unmanned 24/7 operation
Wireless Secondary Unit (WSU) available in two DC output voltage ranges (24/36 V_DC or 50 V_DC)

Easy Integration

Automatic charging
Ethernet for integrating to a warehouse management system
CAN bus for connecting vehicle systems
Patented system-internal PPL communication for faster and more stable connectivity

Wireless Power Transfer
