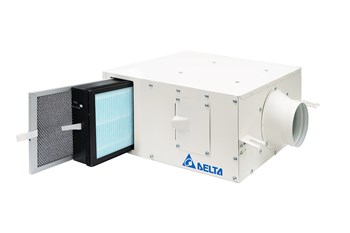

Fresh Air Supply Fan

Delta Electronics FRESH AIR SUPPLY FAN, VDB36ACXT2-F, VDB36AEXT-F, VDB40AGXT-F, VDB40AFXT2-F and
VDB50ANXT-F, are designed for fresh air intake & purification. Equipped with high-efficiency two-stage filters, purifying PM2.5 up to 99.8%, the fans adopt brushless DC motors, which enable quiet operation – noise as low as 21dBA and achieve energy savings. Slim shape design saves more installation space. Metal cabinet and fan blades are anti-corrison and anti-desformation. Constant airflow technology provides constant fresh air at the designed duct length. Models with various airflows range can be selected, based on different room sizes.

● VDB36ACXT2-F:110-220V, suitable room size ≤100 m²
● VDB36AEXT-F: 110-220V, suitable room size ≤165 m²
● VDB40AGXT-F: 110-220V, suitable room size ≤230 m²
● VDB40AFXT2-F: 110-220V, suitable room size ≤265 m²
● VDB50ANXT-F: 110-220V, suitable room size ≤365 m²
● Smart control panel: VFRU-ERVT-03SS
● LCD control panel: VFRU-ERV-03LS

Product Introduction

Features & Benefits
● Energy-saving Brushless DC Motor
● Multi-stage High-efficiency Filters
● Positive-pressure Ventilation
● Easy Installation
● Quiet Operation
● Three-year Limited Warranty (specified in the product warranty details)
Specifications

Fresh Air Supply Fan

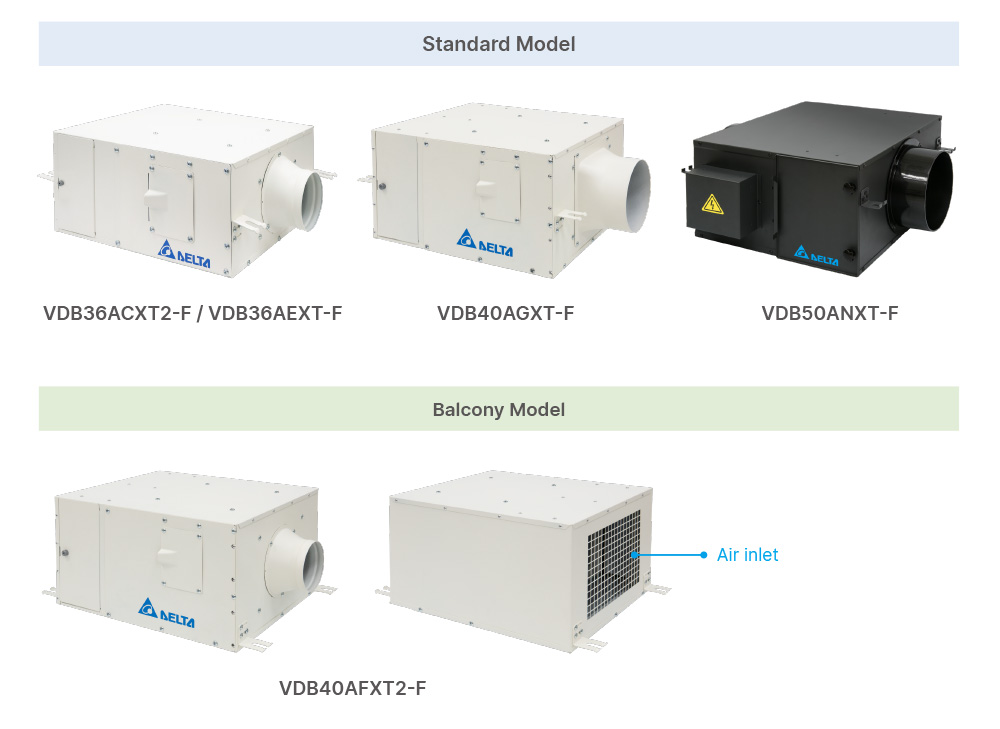

Fresh Air Supply Fan Model List




High Efficiency Brushless DC Motor

Adopting brushless DC motor enormously decreases power consumption and maintains a longer life, compared with AC motor. Energy can be saved up to 60% - all day operation without wasting energy.

High Efficiency Brushless DC Motor

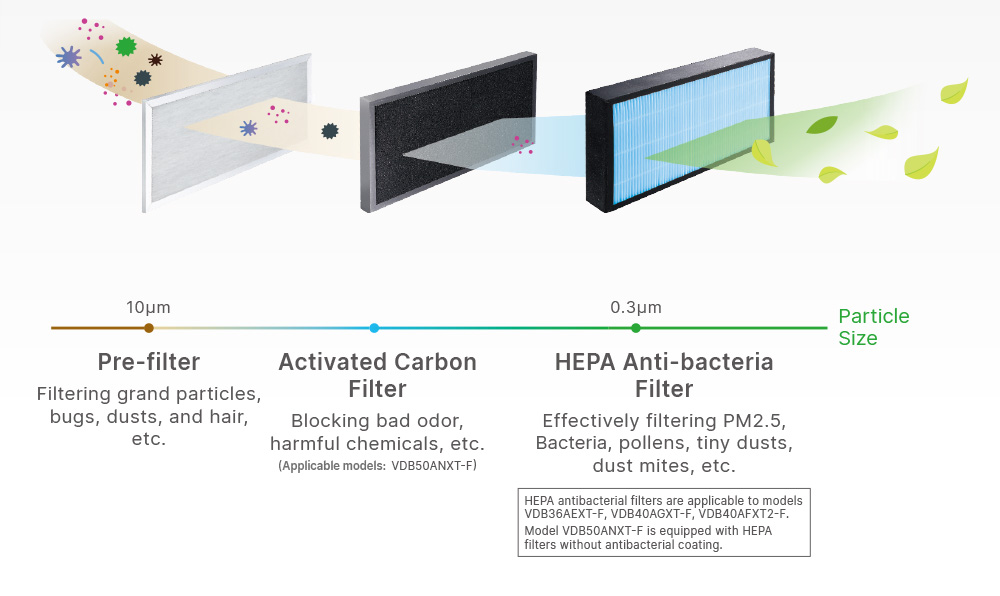

Multi-stage High-efficiency Filters,
Enhanced protection


PM2.5 filtration with efficiency over 97%.

Multi-stage High-efficiency Filters, Enhanced protection



Positive Pressure Design -
Exhaust Indoor Polluted Air


The design can enable indoor positive-pressure environment and squeeze indoor polluted air to the outdoor, preventing outdoor unfiltered polluted air from entering indoor space.

Positive Pressure Design - Exhaust Indoor Polluted Air


Selection of Control Panels - Easy to Monitor

Large screen LCD monitor - easy to read the functions & status
No-brainer buttons to switch modes, seamless waterproof design, simple chic outlook -
perfectly blend in the interior style.

Selection of Control Panels - Easy to Monitor


RS485 Interface

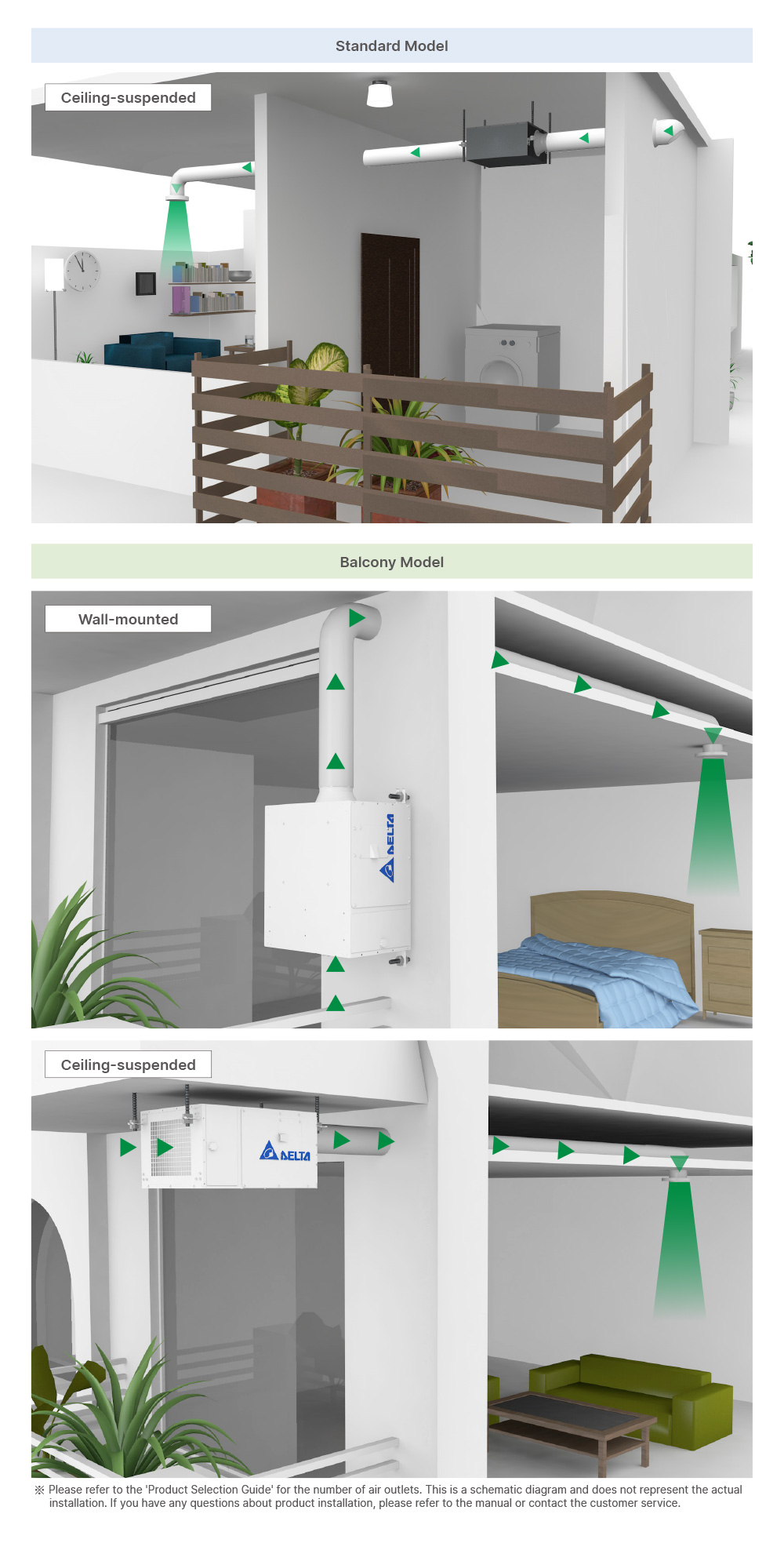

Slim Shape Design - Save You More Space


Low-profile installation – blend in with interior design

Slim Shape Design - Save You More Space



Perfectly Quiet for a Better Living


Low noise design at high ventilation rate for whole-house fresh air


Perfectly Quiet for a Better Living

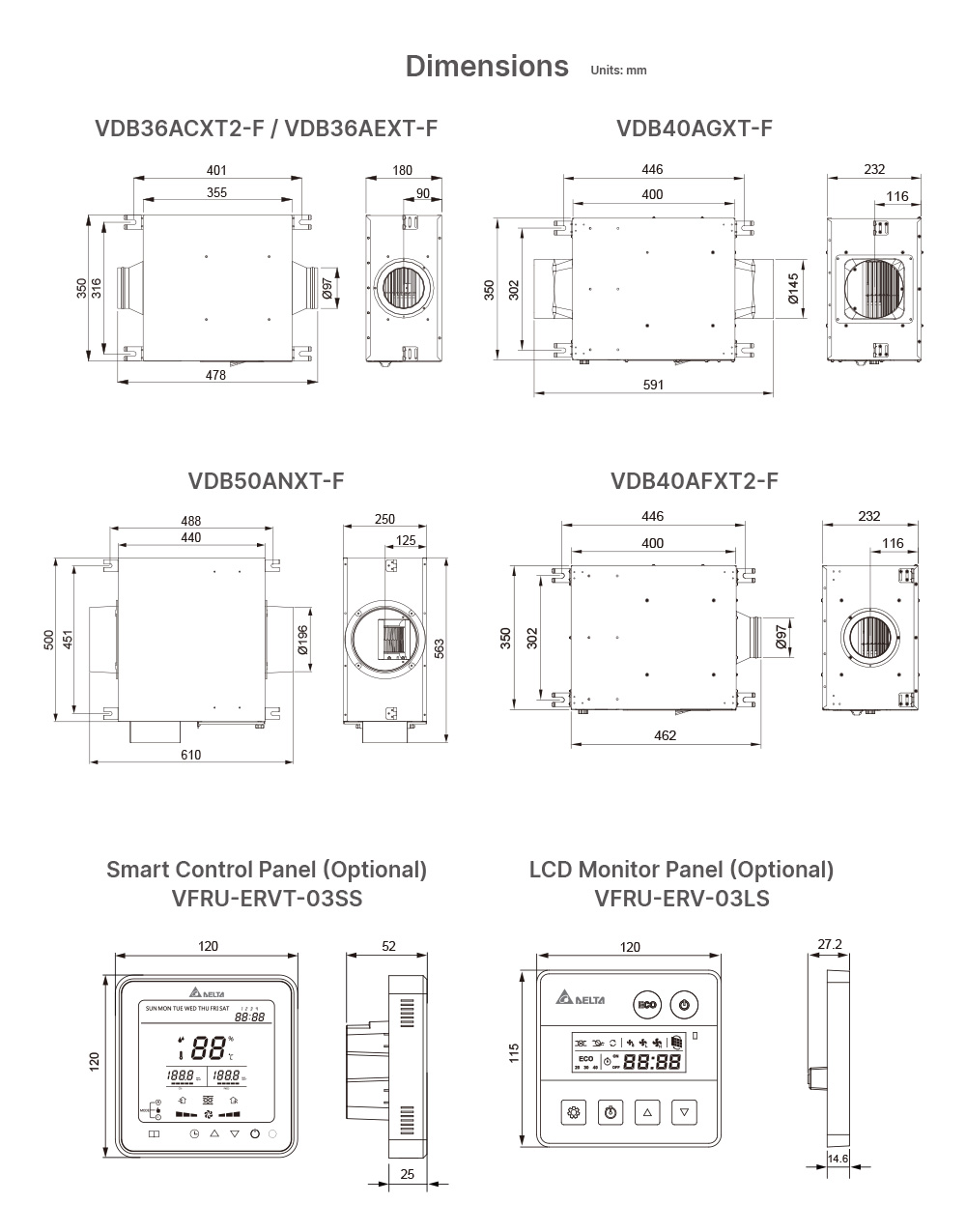

Dimensions

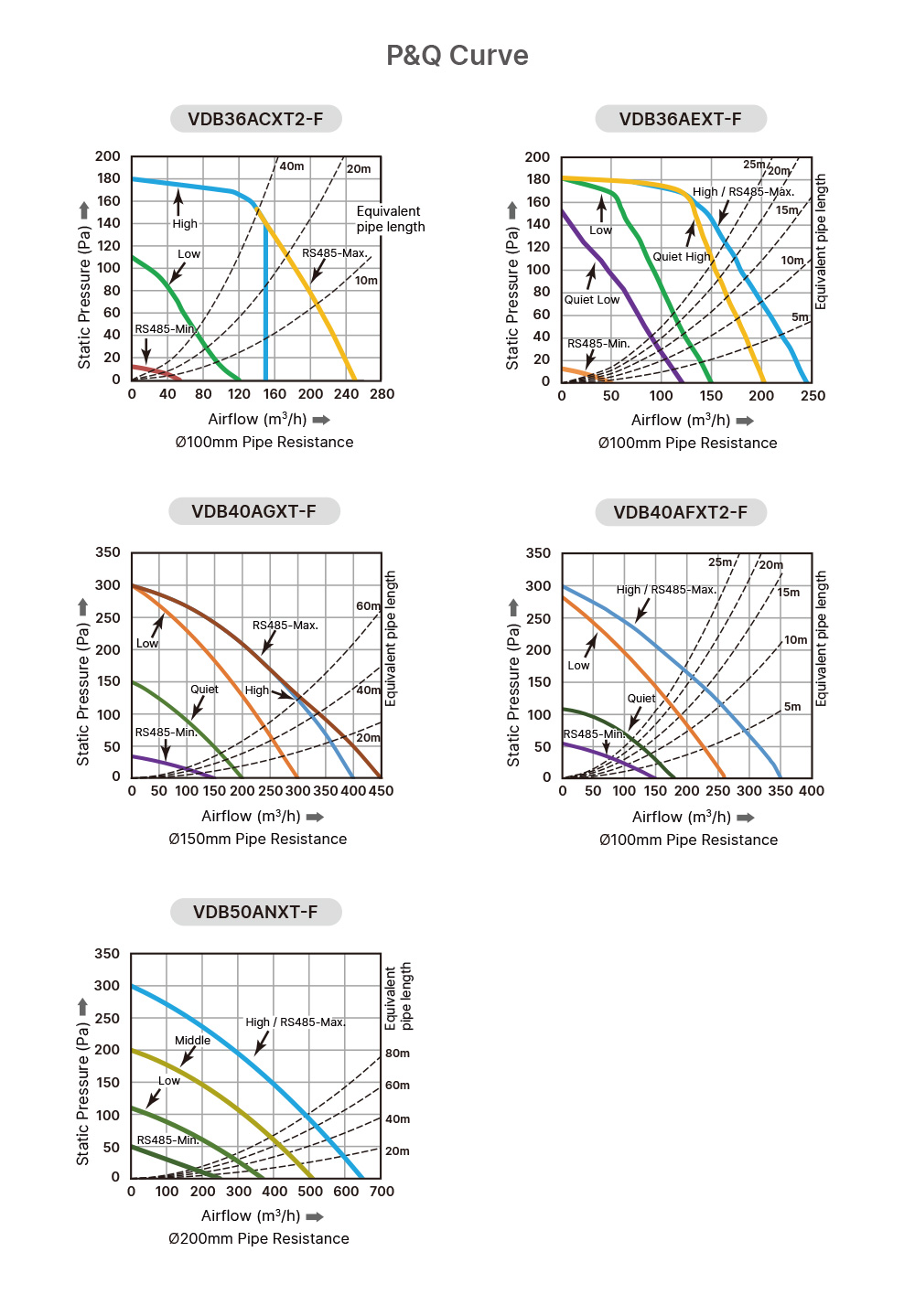

P&Q Curve

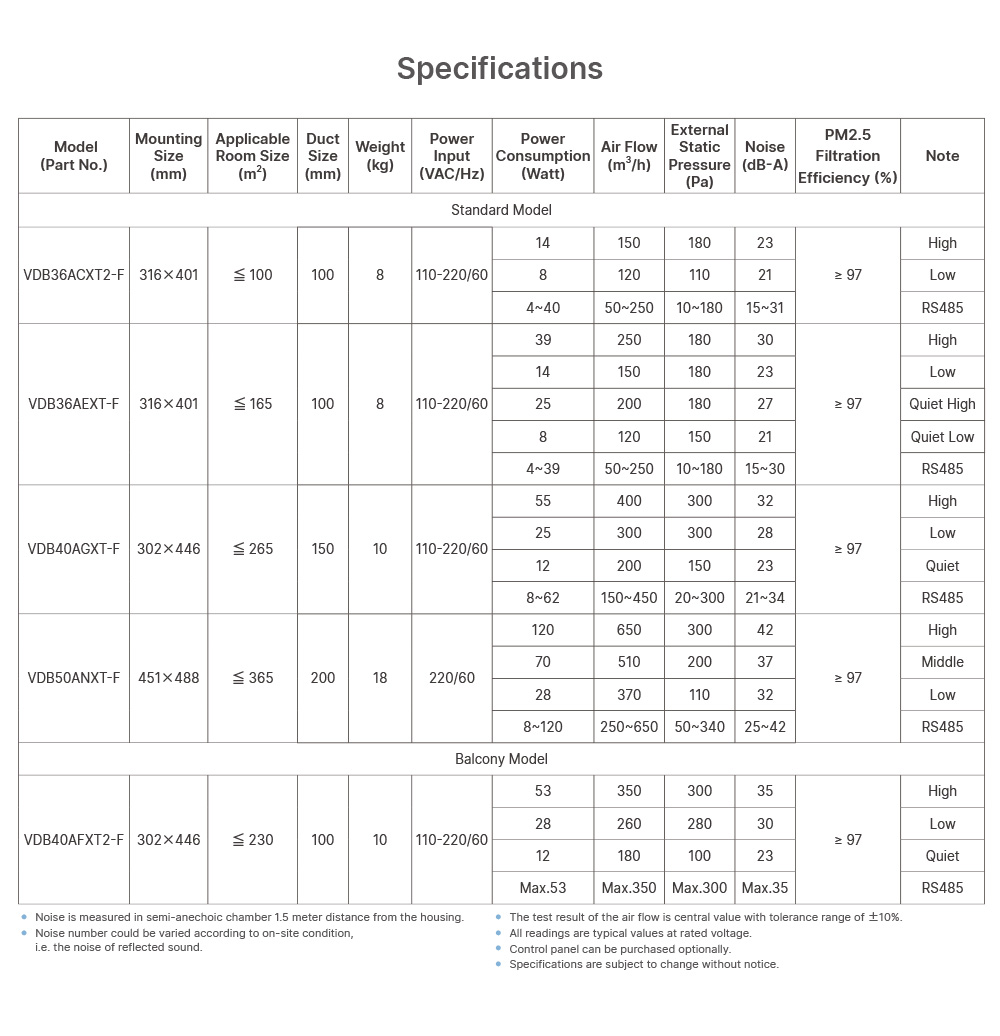

Specifications

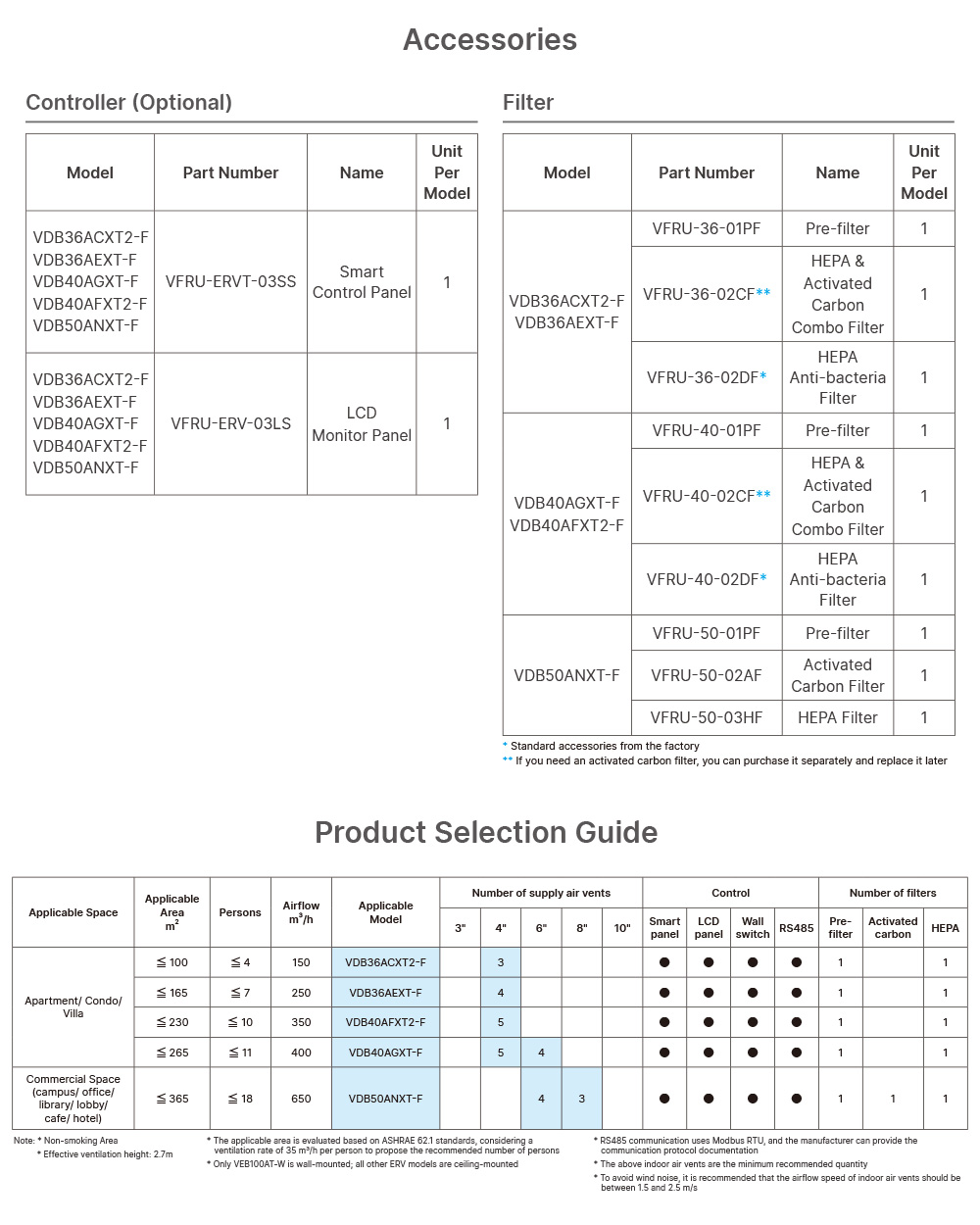

Accessories, Product Selection Guide
