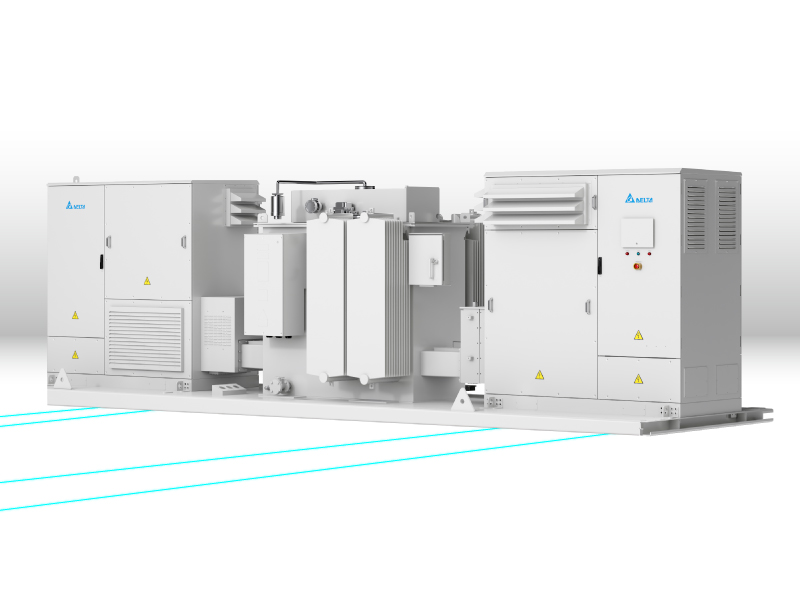

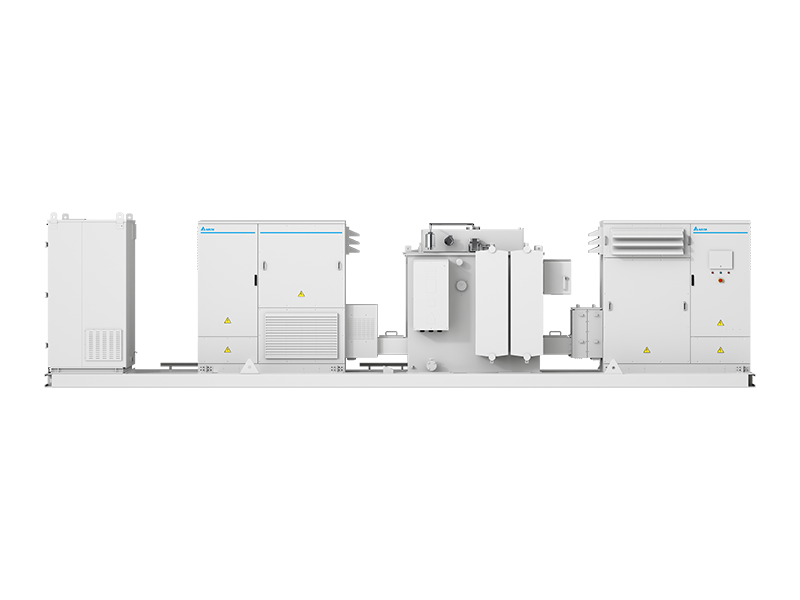

PCS3450 MV Skid

3.45 MW PCS Turnkey Station with MV Transformer

The PCS3450 MV Skid is built for utility-scale energy storage, delivering up to 3.45 MW. It combines the flexibility of string architecture with central inverter efficiency. Its modular design enables independent management of two out of four battery systems, optimizing capacity. Pre-equipped with a 34.5kV transformer and switchgear, it simplifies installation and maintenance, making it ideal for large-scale projects needing high power and flexible management.

Product Introduction

Key Benefits
  • Simplifies installation, reduces on-site work, and enhances overall project efficiency
  • Offers both high efficiency and flexible scalability to meet diverse project needs
  • Streamlines the system and minimizes fault currents for greater safety
Powering Utility-Scale Storage with Flexibility, Efficiency, and Reliability


Feature Highlights

Pre-equipped with MV
Transformer and Switchgear

The system simplifies installation and enhances efficiency, eliminating the need for multiple vendors and complex AC-side wiring and integration. This streamlines the process for customers, reducing project complexity and saving time

Combines Central and String Architecture Advantages

This design offers easy integration and high availability (maintaining operation during errors), while delivering both high efficiency and flexible scalability to meet diverse project needs

One-to-one Connection for Four Independent Battery Systems

Non-parallel architecture streamlines the system and minimizes fault currents, enhancing safety—making it ideal for 0.25C applications

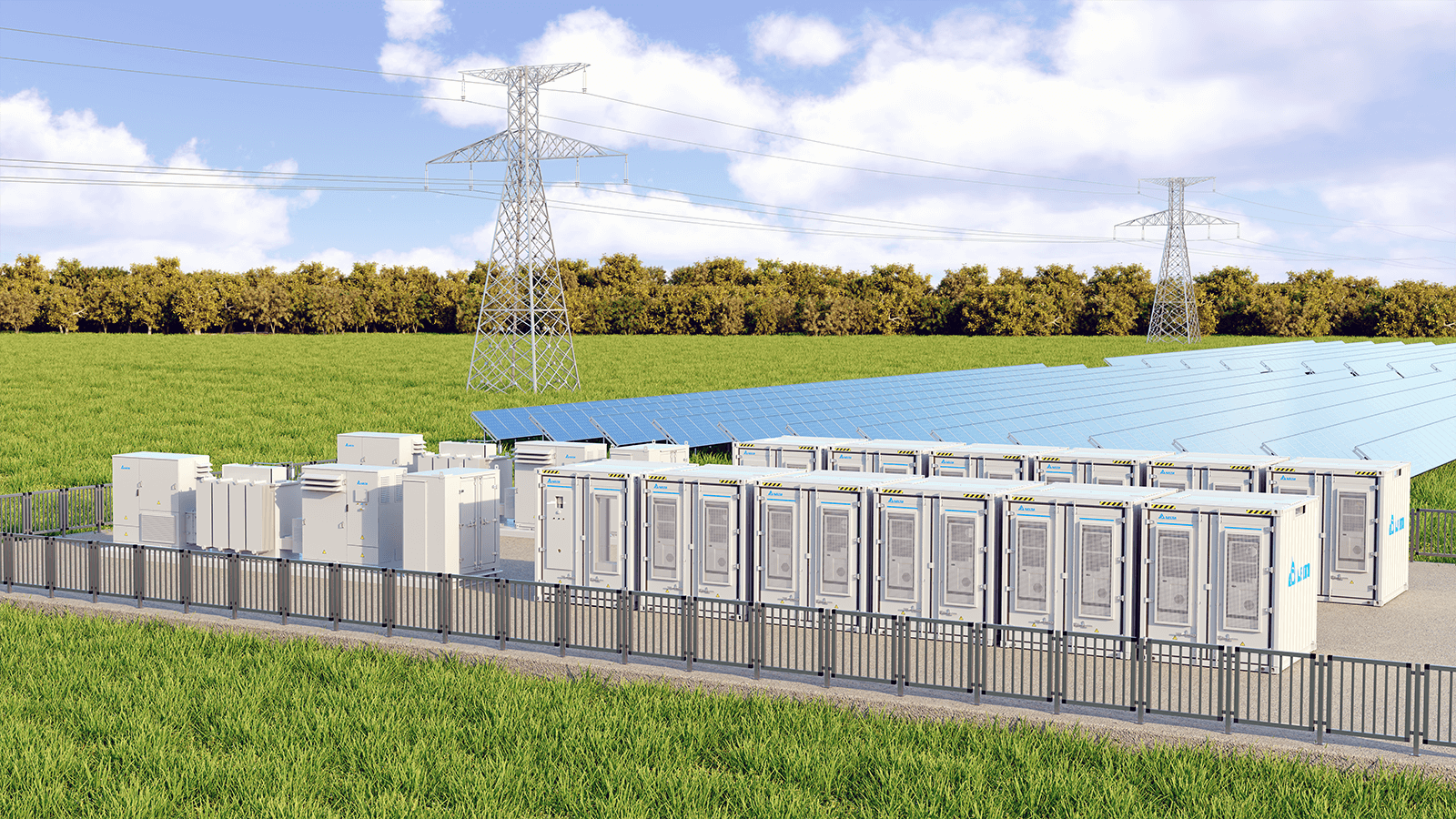

Applications

Utility Grid

Solar-Plus-Storage

Factory

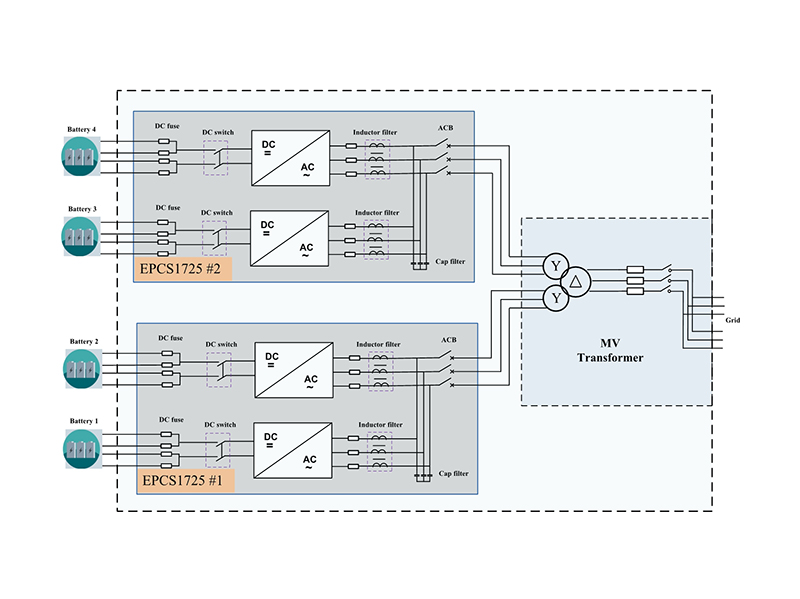

System Architecture
