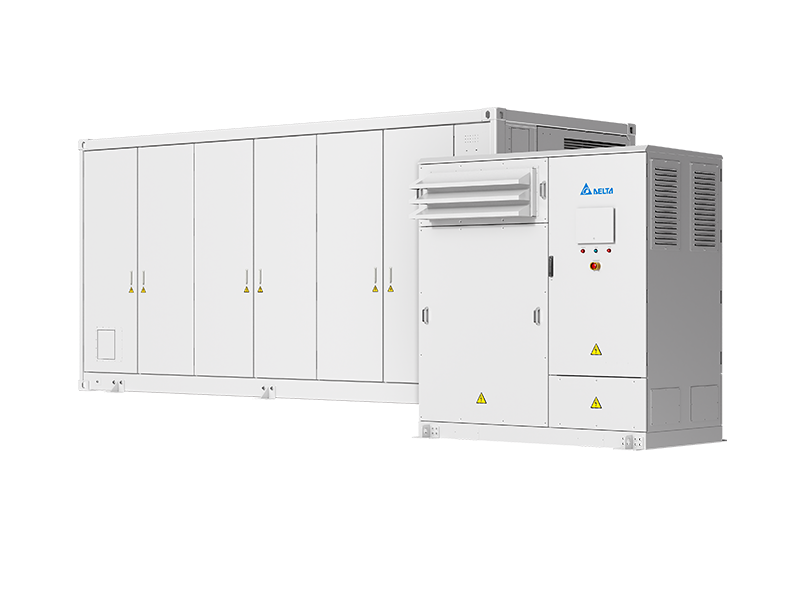

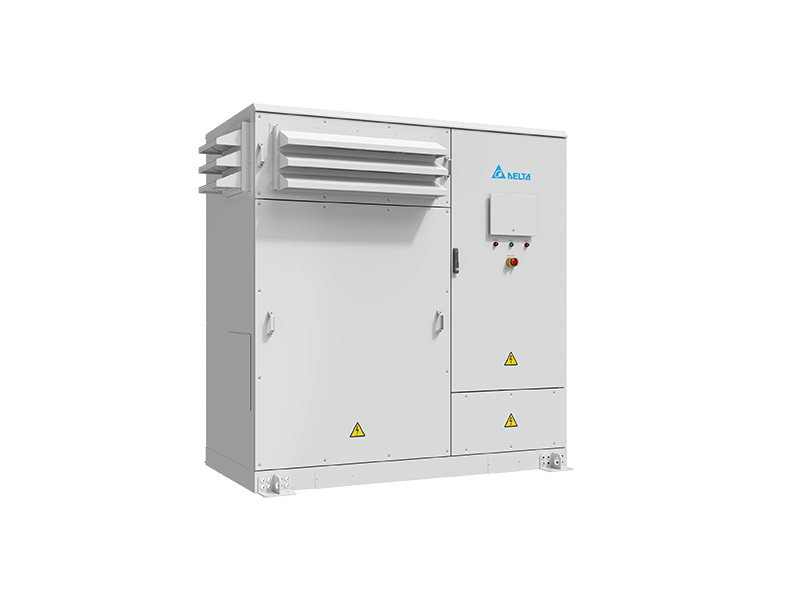

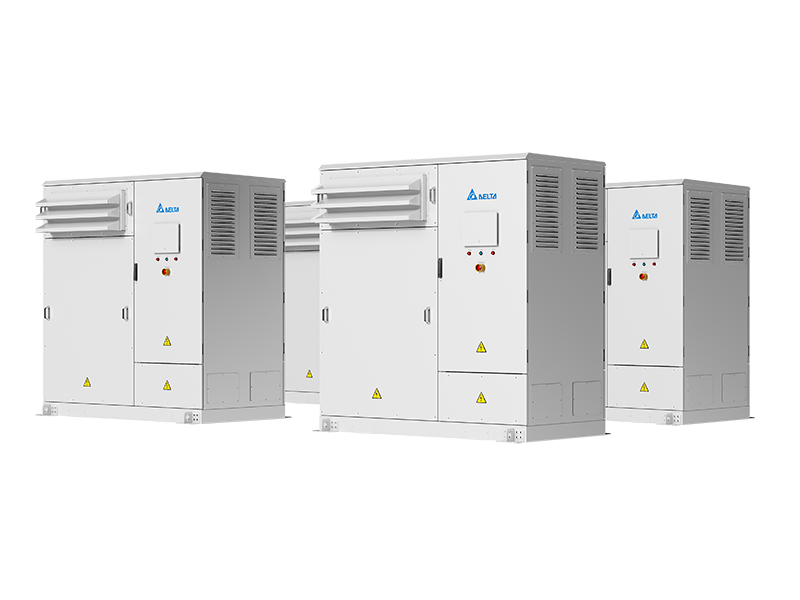

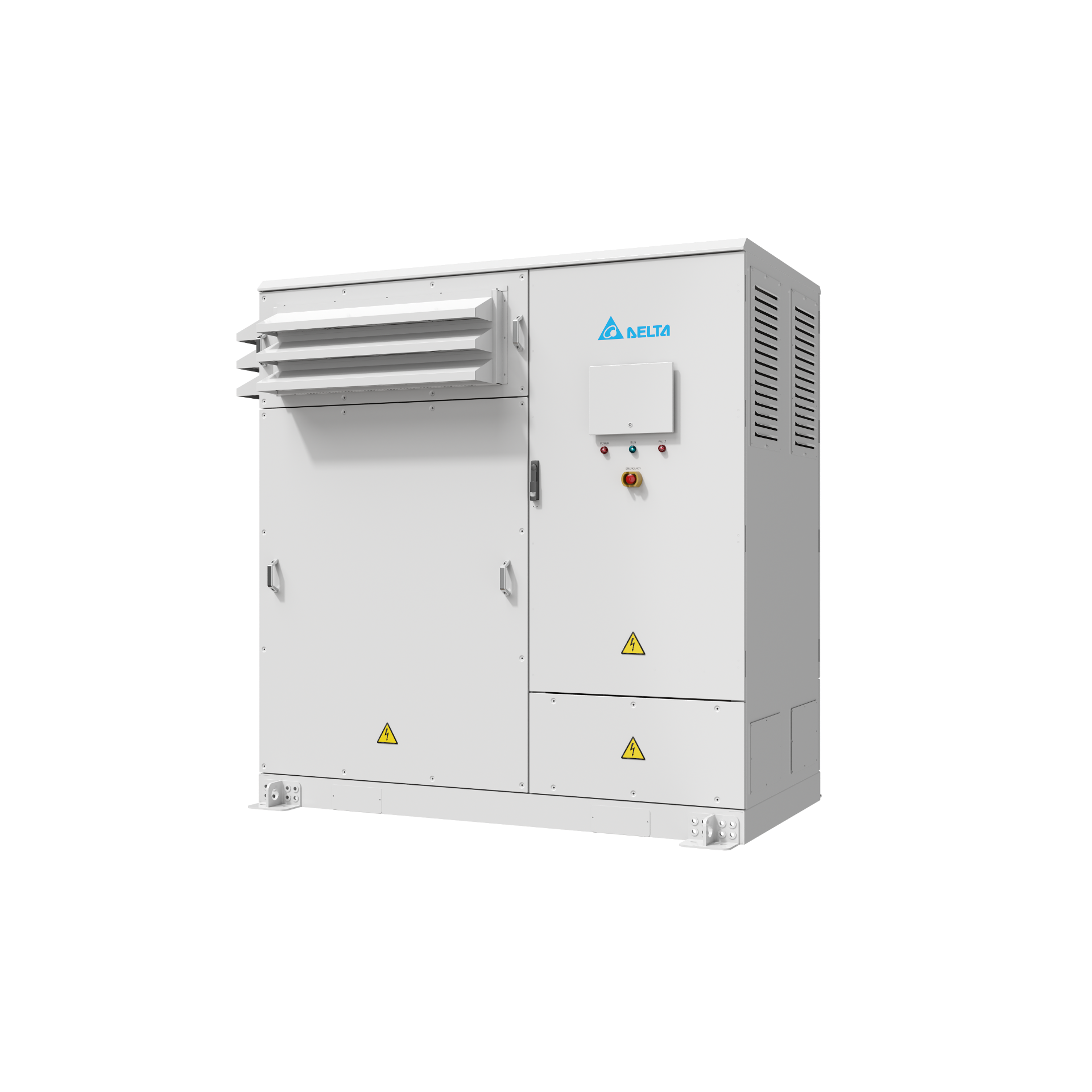

PCS1500

Delta Power Conditioning System (PCS) is a bi-directional energy storage inverter for grid applications including power backup, peak shaving, PV self-consumption, PV smoothing, etc. Delta PCS1500 provides power capacity from 1000 to 1725 kVA with 98.4% efficiency.

Featuring high availability and adaptability, the PCS is battery technology independent and can control energy storage system exactly when it is required.

Product Introduction

Features & Benefits

Efficient and Precise Power Control


  • Power capacity: 1000-1725 kVA
  • DC Voltage up to 1500V
  • AC voltage: 400-690 Vac
  • Peak efficiency: 98.4%


Flexible System Configuration


  • Modular design realizes scalability and availability
  • Battery independence provide high adaptability for energy storage


Designed for Energy Storage Applications


  • Advanced P/Q, Frequency/Voltage, and VSG control
  • Utility-grade protection designed for harsh environment
  • DC and AC-coupled storage applications
  • Automatic voltage and frequency regulation
  • Active and reactive power compensation
  • Anti-Islanding detection, islanding control operation
Specifications



Download
PCS1500 Leaflet (IEC version)

PCS1500 Leaflet (UL version)
