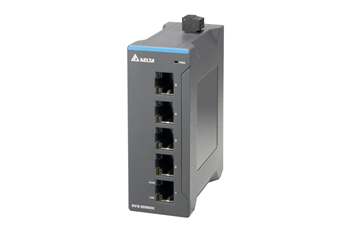

DVS-005I00C

Features & Benefits

• Compact size saves space in tiny areas and makes installation easy and fast
• Transparent transmission of VLAN tagged packets
• 12 to 24 V_DC power input
• -10°C to 60°C operating temperature
• IP40 protection

Specifications

1. IEEE 802.3 10Base-T
2. IEEE 802.3u 100Base-T(X)
3. IEEE 802.3x Flow Control

4. ---

1. Store and Forward
2. IEEE 802.3x flow control in full duplex, back-pressure flow control in half duplex

3. ---

1. Fast Ethernet
2. RJ45 Ports: 5 10/100Base-T(X), auto MDI/MDI-X, auto negotiation

3. ---

1. Switching Capacity: 1Gbps, Wired speed, Non-blocking switching fabric
2. Forwarding Rate: 0.74Mpps
3. MAC Address Table: 1K
4. Packet Buffer Memory: 448K bits
5. Transparent Forwarding VLAN Tagged Packets: Default enabled

6. ---

1. Input Voltage: 12 to 24 V_DC
2. Input Current: Max. 0.084A
3. Overload Current Protection: Present, max. input current 3A
4. Reverse Polarity Protection: Present

5. ---

1. Housing: IP40 rating plastic case
2. Dimensions: 109.1 mm(H) x 38 mm(W) x 88.3 mm (D)
3. Weight: 125.5g
4. Installation: Industrial DIN-Rail and wall mounting

5. ---

1. Operating Temperature: -10℃ to 60℃ (14℉ to 140℉)
2. Storage Temperature: -40℃ to 85℃ (-40℉ to 185℉)
3. Ambient Relative Humidity: 5% to 95% (non-condensing)

4. ---

1. Safety: UL 61010, BSMI
2. EMI: EN 55032, EN 61000-6-4, CISPR 32, FCC Part 15B Class A, KC, RCM, BSMI
3. EMS: EN 55035, EN 61000-6-2, KC, RCM, IEC 61000-4-2 ESD, IEC 61000-4-3 RS, IEC 61000-4-4 EFT, IEC 61000-4-5 Surge, IEC 61000-4-6 CS, IEC 61000-4-8 PFMF
4. Shock: IEC 60068-2-27
5. Freefall: ISTA 1A
6. Vibration: IEC 60068-2-6
