產品 - EC 離心式鼓風機

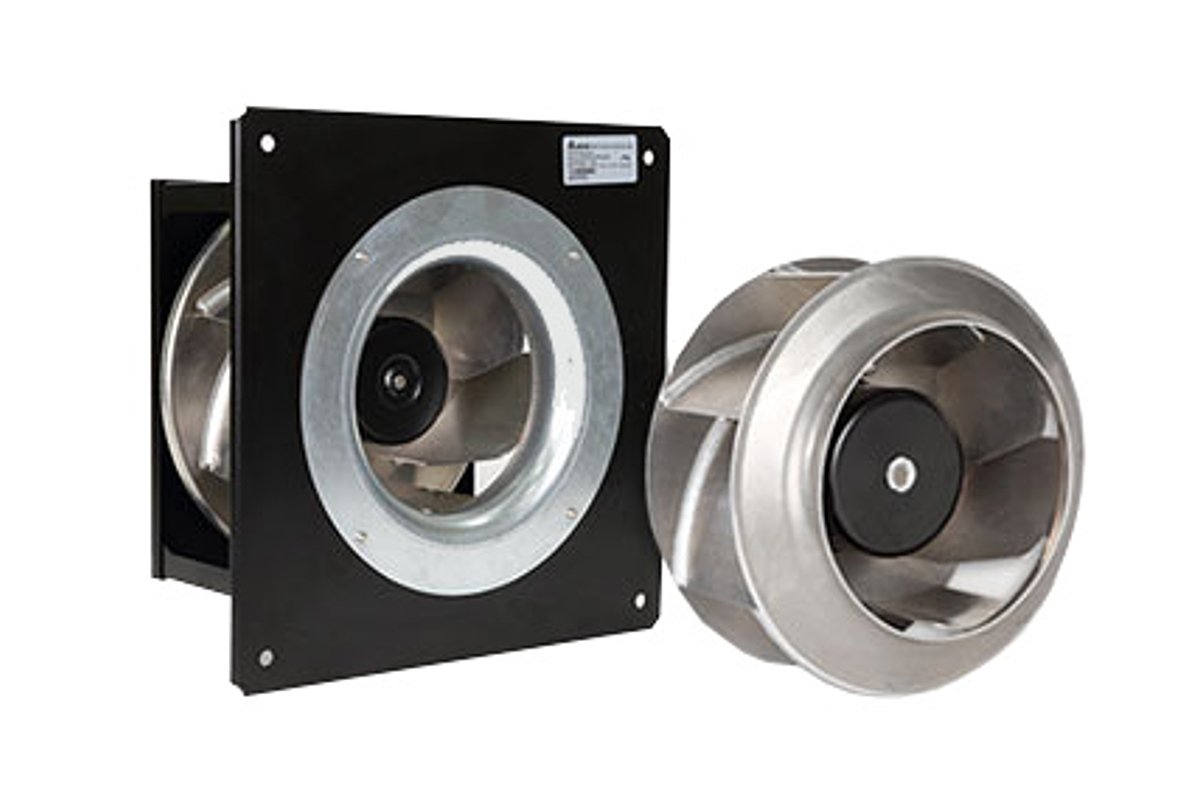

EC 離心式鼓風機

Part Number	Size(mm)	Height(mm)	Input Source(Vac)	Power(w)(Max)	Qmax(CMH)	Pmax(Pa)	PFC	Op. Temp	Application
GTB019BUA07R-V E1	190	70	1P-100~140	85	736	717	N/A	-25°C~60°C	HVAC
GTB019FUA07R-V E1	190	70	1P-200~240	85	754	841	N/A	-25°C~60°C	HVAC
GTB019FUG09R-V E1	190	88	1P-200~240	185	997	988	N/A	-25°C~60°C	HVAC
GTB023EUG10R-V E1	225	99	1P-200~240	180	1260	650	N/A	-25°C~60°C	Precision Cooling / Industrial
GTB023FUA10R-V E1	225	99	1P-200~240	85	952	378	N/A	-25°C~60°C	Precision Cooling
GTB025FUC19R N1	260	194	1P-200~277	530	2600	818	Passive	-25°C~60°C	Industrial / HVAC
GTB028EUB16 N1	280	162	1P-200~277	180	2222	569	Active	-25°C~60°C	Industrial / HVAC
GTB031FUC20R N1	319	198	1P-200~277	530	3014	734	Passive	-25°C~60°C	Industrial / HVAC
GTB031PHJ22M N1	319	221	3P-380~480	1000	3704	1035	Passive	-30°C~60°C	Industrial / HVAC
GTB036EHD25R N1	360	251	1P-200~277	800	4752	697	Active	-25°C~60°C	Precision Cooling
GTB036EUD25R N1	360	251	1P-200~277	800	4752	697	Active	-25°C~60°C	Precision Cooling
GTB036FUC23R N1	360	230	1P-200~277	500	4408	522	Passive	-25°C~60°C	Industrial / HVAC
GTB036PHD25E N1	360	251	3P-380~480	1000	5573	919	Passive	-25°C~60°C	Precision Cooling
GTB036PUD25E N1	360	251	3P-380~480	1000	5573	919	Passive	-25°C~60°C	Precision Cooling
GTB040EHD26R N1	404	257	1P-200~277	800	5692	690	Active	-25°C~60°C	Industrial / HVAC
GTB040EUD26R N1	404	257	1P-200~277	800	5692	690	Active	-25°C~60°C	Industrial / HVAC

Part NumberGTB019BUA07R-V E1


Size(mm)190

Height(mm)70

Input Source(Vac)1P-100~140

Power(w)(Max)85

Qmax(CMH)736

Pmax(Pa)717

PFCN/A

Op. Temp-25°C~60°C

ApplicationHVAC

Part NumberGTB019FUA07R-V E1


Size(mm)190

Height(mm)70

Input Source(Vac)1P-200~240

Power(w)(Max)85

Qmax(CMH)754

Pmax(Pa)841

PFCN/A

Op. Temp-25°C~60°C

ApplicationHVAC

Part NumberGTB019FUG09R-V E1


Size(mm)190

Height(mm)88

Input Source(Vac)1P-200~240

Power(w)(Max)185

Qmax(CMH)997

Pmax(Pa)988

PFCN/A

Op. Temp-25°C~60°C

ApplicationHVAC

Part NumberGTB023EUG10R-V E1


Size(mm)225

Height(mm)99

Input Source(Vac)1P-200~240

Power(w)(Max)180

Qmax(CMH)1260

Pmax(Pa)650

PFCN/A

Op. Temp-25°C~60°C

ApplicationPrecision Cooling / Industrial

Part NumberGTB023FUA10R-V E1


Size(mm)225

Height(mm)99

Input Source(Vac)1P-200~240

Power(w)(Max)85

Qmax(CMH)952

Pmax(Pa)378

PFCN/A

Op. Temp-25°C~60°C

ApplicationPrecision Cooling

Part NumberGTB025FUC19R N1


Size(mm)260

Height(mm)194

Input Source(Vac)1P-200~277

Power(w)(Max)530

Qmax(CMH)2600

Pmax(Pa)818

PFCPassive

Op. Temp-25°C~60°C

ApplicationIndustrial / HVAC

Part NumberGTB028EUB16 N1


Size(mm)280

Height(mm)162

Input Source(Vac)1P-200~277

Power(w)(Max)180

Qmax(CMH)2222

Pmax(Pa)569

PFCActive

Op. Temp-25°C~60°C

ApplicationIndustrial / HVAC

Part NumberGTB031FUC20R N1


Size(mm)319

Height(mm)198

Input Source(Vac)1P-200~277

Power(w)(Max)530

Qmax(CMH)3014

Pmax(Pa)734

PFCPassive

Op. Temp-25°C~60°C

ApplicationIndustrial / HVAC

Part NumberGTB031PHJ22M N1


Size(mm)319

Height(mm)221

Input Source(Vac)3P-380~480

Power(w)(Max)1000

Qmax(CMH)3704

Pmax(Pa)1035

PFCPassive

Op. Temp-30°C~60°C

ApplicationIndustrial / HVAC

Part NumberGTB036EHD25R N1


Size(mm)360

Height(mm)251

Input Source(Vac)1P-200~277

Power(w)(Max)800

Qmax(CMH)4752

Pmax(Pa)697

PFCActive

Op. Temp-25°C~60°C

ApplicationPrecision Cooling

Part NumberGTB036EUD25R N1


Size(mm)360

Height(mm)251

Input Source(Vac)1P-200~277

Power(w)(Max)800

Qmax(CMH)4752

Pmax(Pa)697

PFCActive

Op. Temp-25°C~60°C

ApplicationPrecision Cooling

Part NumberGTB036FUC23R N1


Size(mm)360

Height(mm)230

Input Source(Vac)1P-200~277

Power(w)(Max)500

Qmax(CMH)4408

Pmax(Pa)522

PFCPassive

Op. Temp-25°C~60°C

ApplicationIndustrial / HVAC

Part NumberGTB036PHD25E N1


Size(mm)360

Height(mm)251

Input Source(Vac)3P-380~480

Power(w)(Max)1000

Qmax(CMH)5573

Pmax(Pa)919

PFCPassive

Op. Temp-25°C~60°C

ApplicationPrecision Cooling

Part NumberGTB036PUD25E N1


Size(mm)360

Height(mm)251

Input Source(Vac)3P-380~480

Power(w)(Max)1000

Qmax(CMH)5573

Pmax(Pa)919

PFCPassive

Op. Temp-25°C~60°C

ApplicationPrecision Cooling

Part NumberGTB040EHD26R N1


Size(mm)404

Height(mm)257

Input Source(Vac)1P-200~277

Power(w)(Max)800

Qmax(CMH)5692

Pmax(Pa)690

PFCActive

Op. Temp-25°C~60°C

ApplicationIndustrial / HVAC

Part NumberGTB040EUD26R N1


Size(mm)404

Height(mm)257

Input Source(Vac)1P-200~277

Power(w)(Max)800

Qmax(CMH)5692

Pmax(Pa)690

PFCActive

Op. Temp-25°C~60°C

ApplicationIndustrial / HVAC
